How to Clean the 3D Print Nozzle

To clean the 3D print nozzle, you can use a nozzle cleaning filament or a needle. Furthermore, regularly removing any excess filament build-up will prevent clogs and keep your prints clean and precise.

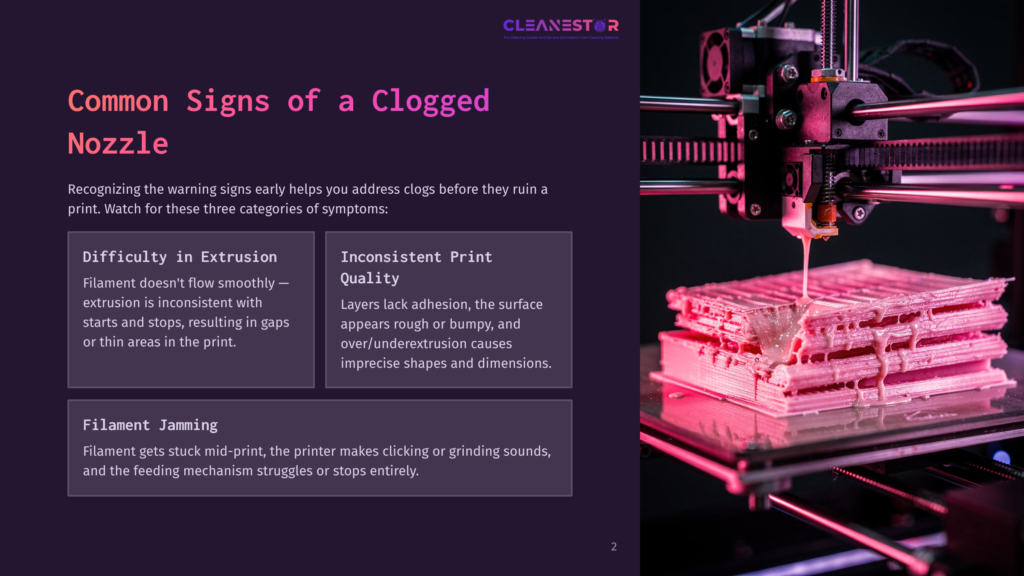

Common Signs Of A Clogged Nozzle

A clogged nozzle in a 3D printer can cause several telltale signs, such as inconsistent filament flow, weak prints, and nozzle jams. To clean the nozzle, you can remove it from the printer and use a small brush or needle to clear any obstructions.

Always ensure the nozzle is completely clean before resuming printing.

Signs Of A Clogged Nozzle

Experiencing difficulties with your 3D printer can be frustrating, especially when the root cause is a clogged nozzle. A clogged nozzle can lead to various issues, affecting the quality of your prints and potentially causing filament jams. By being aware of the common signs of a clogged nozzle, you can quickly identify and address the problem, ensuring smooth and hassle-free 3D printing.

Difficulty In Extrusion

  • Filament doesn’t smoothly flow out of the nozzle.
  • The extrusion seems inconsistent, with starts and stops.
  • Extrusion is uneven, resulting in gaps or thin areas in the print.

Inconsistent Printing Quality

  • Layers lack adhesion, leading to a weak or fragile print.
  • The print surface appears rough or bumpy.
  • Overextrusion or underextrusion occurs, causing imprecise shapes and dimensions.

Filament Jamming

  • Filament gets stuck inside the nozzle during printing.
  • The printer makes clicking or grinding sounds while attempting to extrude filament.
  • The filament feeding mechanism struggles or stops altogether.

By recognizing these signs, you can promptly address a clogged nozzle and prevent further printing issues. Taking steps to clean or clear any obstructions from the nozzle will help restore proper functionality and ensure high-quality prints. Remember, regular maintenance and cleaning are crucial to maintaining the performance of your 3D printer.

How To Clean The 3D Print Nozzle

Credit: all3dp.com

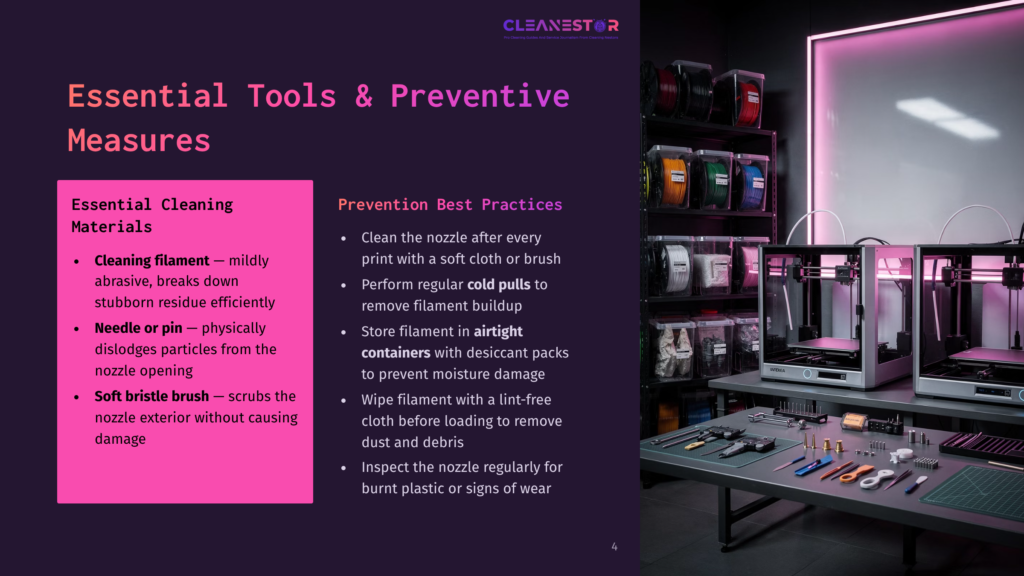

Essential Materials For Nozzle Cleaning

Cleaning the 3D print nozzle requires essential materials such as nozzle cleaning needles, nozzle cleaning filament, and isopropyl alcohol. By using these tools, you can effectively remove clogs and maintain the quality of your prints.

Cleaning your 3D print nozzle regularly is crucial for maintaining optimal printing quality. Over time, remnants of filament can accumulate in the nozzle, leading to clogs and uneven extrusion. To ensure effective cleaning, you will need a few essential materials.

These materials include:

  • Cleaning Filament:
  • Cleaning filament is specifically designed to remove debris and residues from the nozzle.
  • It is typically composed of a mildly abrasive material that can break down and remove stubborn filament remnants.
  • Using cleaning filament is an efficient way to prevent clogs and ensure smooth printing.
  • Needle or Pin:
  • A fine needle or pin is an excellent tool for physically cleaning the nozzle.
  • Gently inserting the needle or pin through the nozzle opening can dislodge any remaining filament particles or debris.
  • Be careful not to damage the nozzle opening or force the needle too forcefully, as this can cause damage.
  • Soft Bristle Brush:
  • A soft bristle brush, such as a toothbrush or a specialized nozzle cleaning brush, is useful for gently scrubbing the exterior of the nozzle.
  • The bristles can remove any residue or grime that may have built up on the nozzle surface.
  • Ensure the brush is clean and free from any loose bristles that could get lodged in the nozzle during cleaning.

Regularly cleaning your 3D print nozzle using these essential materials will help maintain consistent print quality and prevent potential printing issues. Remember to follow proper cleaning procedures and refer to your printer’s manufacturer guidelines for specific instructions. Keep your nozzle clean to ensure smooth and successful 3D prints.

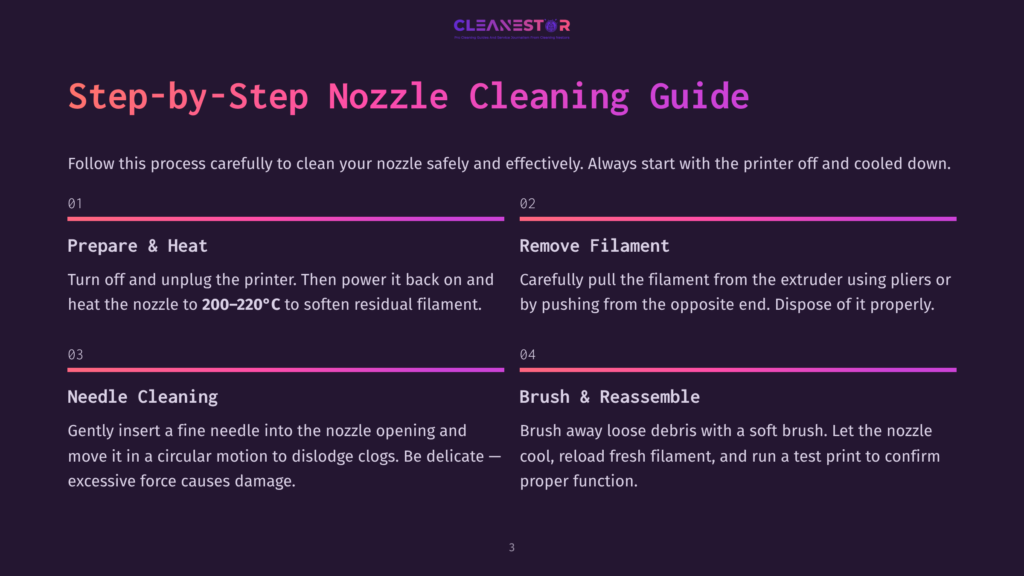

Step-By-Step Guide To Cleaning The Nozzle

Discover a step-by-step guide to effectively clean the nozzle of your 3D printer. Keep your printer running smoothly by following these simple yet crucial cleaning instructions.

Cleaning the 3D printer nozzle is an essential maintenance task that ensures optimal performance and extends its lifespan. Over time, the nozzle can become clogged with debris or hardened filament, resulting in poor print quality or even failed prints. In this step-by-step guide, we will walk you through the process of cleaning the nozzle to keep your 3D printer running smoothly.

Preparing The Printer:

  • Turn off the 3D printer and unplug it from the power source to ensure your safety.
  • Allow the nozzle to cool down completely before proceeding with the cleaning process.
  • Prepare a clean and well-lit workspace to perform the cleaning procedure effectively.

Heating The Nozzle:

  • Power on the 3D printer and navigate to the temperature settings in your printer’s menu.
  • Choose the option to heat the nozzle to a specific temperature, usually around 200-220°C, depending on the filament type previously used.
  • Wait for the nozzle to reach the desired temperature, allowing the heat to soften any residual filament inside.

Removing The Filament:

  • Once the nozzle is heated, carefully remove the filament from the extruder by gently pulling it out.
  • You can use pliers or simply push the filament from the opposite end until it comes out completely.
  • Dispose of the removed filament properly and avoid touching the hot nozzle to prevent any burns.

Cleaning The Nozzle With A Needle Or Pin:

  • Take a needle or a pin and gently insert it into the nozzle opening, ensuring you do not push too hard to avoid damaging the nozzle.
  • Gently move the needle or pin in a circular motion to dislodge any clogs or hardened filament inside the nozzle.
  • Be patient and delicate during this process, as excessive force can cause irreversible damage to the nozzle.

Soft Brush Cleaning:

  • Using a soft brush or toothbrush, carefully brush away any loose debris or filament particles from the nozzle and its surrounding area.
  • Be thorough in your cleaning, paying attention to every nook and cranny to ensure a clean and unclogged nozzle.

Reassembling The Nozzle:

  • Once you have finished cleaning the nozzle, allow it to cool down completely before proceeding with reassembly.
  • Insert a fresh filament into the extruder and follow your printer’s instructions on feeding the filament through until it reaches the nozzle.
  • Once the filament is correctly loaded, power on the 3D printer and perform a test print to ensure proper functionality.

By following this step-by-step guide, you can effectively clean the 3D printer nozzle and maintain optimal printing performance. Remember to implement this maintenance routine regularly to prevent clogs and ensure consistent print quality.

Preventive Measures To Avoid Nozzle Clogs

To prevent nozzle clogs in 3D printing, regular cleaning is crucial. By carefully following a few preventive measures, such as ensuring filament quality, using the right temperature, and regular maintenance, you can avoid clogs and achieve better print results.

Maintaining a clean 3D print nozzle is crucial for achieving consistent and high-quality prints. Nozzle clogs can be a frustrating setback in your 3D printing journey, but with proper preventive measures, you can minimize the risk of clogs and ensure smooth printing.

Here are some measures you can take to avoid nozzle clogs:

Regular Maintenance:

  • Clean the nozzle after every print: After each print, it’s essential to remove any residual filament from the nozzle. Use a soft cloth or brush to gently clean the exterior of the nozzle, ensuring that no debris is left behind.
  • Perform regular cold pulls: Cold pulls, also known as “atomic” or “cold” pulls, help prevent filament buildup and clogs. Follow these steps for a cold pull:
  • Heat up the nozzle to the recommended temperature for the filament currently in use.
  • Insert a cleaning filament or a small piece of filament into the extruder.
  • Allow the filament to heat inside the nozzle for a few moments.
  • Quickly retract the filament while it is still soft, which will help remove any leftover debris or partial clogs.
  • Inspect the nozzle regularly: It’s vital to inspect the nozzle for any signs of wear or damage regularly. Look out for any accumulation of burnt or melted plastic, as this could be an indication of a partially blocked nozzle.

Filament Storage:

  • Keep filament in a dry and dust-free environment: Moisture can harm your filament and lead to clogs. Ensure that your filaments are stored in airtight containers or sealed bags with desiccant packs to absorb moisture.
  • Avoid exposing filament to temperature extremes: Extreme heat or cold can negatively impact your filament’s quality and increase the chances of clogs. Store your filament in a temperature-controlled environment.

Using Filament Cleaners:

  • Regularly clean your filament: Dust and debris can accumulate on the surface of the filament, entering your 3D printer and causing nozzle clogs. Use filament cleaners or lint-free cloths to wipe your filament before loading it into the printer.
  • Invest in a filament cleaning unit: Filament cleaning units are designed to filter out dust and debris from the filament, ensuring a clean and clog-free printing experience. Consider investing in one to maintain the cleanliness of your filament.

By following these preventive measures, you can significantly reduce the risk of nozzle clogs and enjoy uninterrupted 3D printing. Remember to clean the nozzle regularly, store your filament properly, and make use of filament cleaners for optimal printing performance. Happy printing!

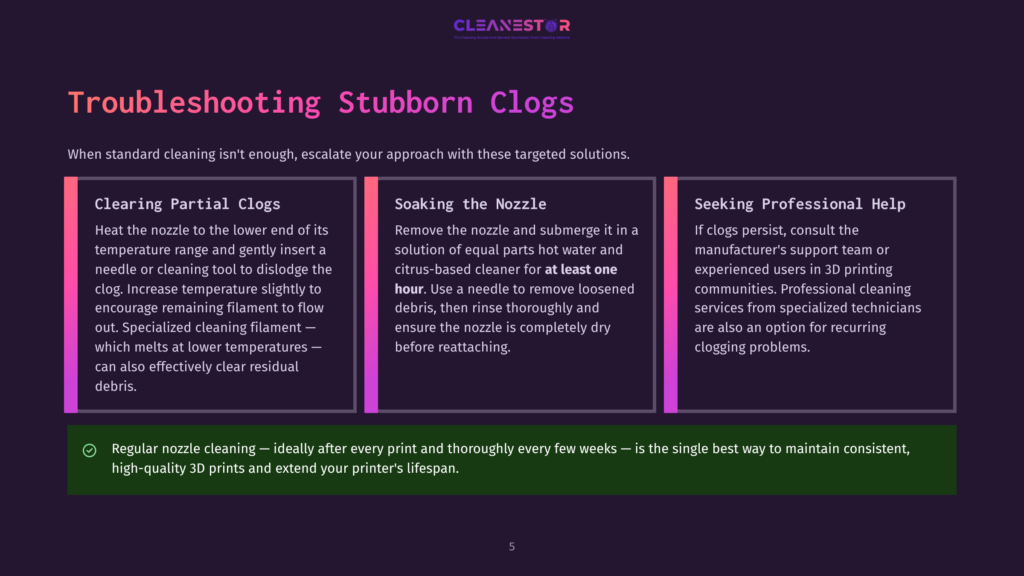

Troubleshooting Tips For Stubborn Clogs

Having trouble with stubborn clogs in your 3D print nozzle? Don’t worry! We have some troubleshooting tips to help you clean it effectively and get your printer back up and running smoothly in no time.

Clearing Partial Clogs:

If you’re facing issues with your 3D printer nozzle clogging, don’t panic! Clearing partial clogs can be a relatively simple process. Here are a few troubleshooting tips to help you get back to smooth printing:

  • Use a fine needle or nozzle cleaning tool to carefully remove any debris or filament stuck in the nozzle.
  • Heat the nozzle to the lower end of its printing temperature range and gently insert the needle or cleaning tool into the nozzle to dislodge the clog. Be cautious to avoid damaging the delicate nozzle opening.
  • Once the clog is loosened, increase the nozzle temperature slightly to encourage any remaining filament to flow out.
  • Consider using a specialized cleaning filament. These filaments are designed to melt at a lower temperature than regular filaments and effectively remove any residual debris from the nozzle.

Soaking The Nozzle In Cleaning Solution:

Sometimes, stubborn clogs may require a more thorough cleaning solution. Soaking the nozzle can help dissolve any hardened or stubborn debris. Here’s how you can do it:

  • Remove the nozzle from your 3D printer, following the manufacturer’s instructions.
  • Prepare a cleaning solution by mixing equal parts of hot water and a citrus-based cleaner or a specialized nozzle cleaning solution.
  • Submerge the nozzle in the cleaning solution and let it soak for at least an hour. This will help to break down any stubborn clogs.
  • After soaking, use a fine needle or nozzle cleaning tool to gently remove any remaining debris from the nozzle.
  • Thoroughly rinse the nozzle with clean water and ensure it is completely dry before reattaching it to your printer.

Seeking Professional Help:

In some cases, despite your best efforts, stubborn clogs may persist. When all else fails, it may be time to seek professional assistance. Here are a few options to consider:

  • Consult the manufacturer or the printer’s support team for guidance on troubleshooting persistent clogs. They may have specific recommendations tailored to your printer model.
  • If you are part of a 3D printing community or forum, consider seeking advice from experienced users who may have encountered similar issues and found effective solutions.
  • Opt for professional cleaning services provided by specialized companies or technicians who have expertise in cleaning and maintaining 3D printer nozzles. This can be especially helpful if you’ve repeatedly encountered clogging problems.

Remember, troubleshooting clogs can be a bit frustrating, but with a methodical approach and these tips, you’ll be back to creating stunning 3D prints in no time.

Is the Cleaning Process for a 3D Printer Nozzle Similar to Cleaning a Remington Shaver Head?

When it comes to cleaning a 3D printer nozzle and cleaning a Remington shaver head, the processes are not entirely similar. While both involve removing residue and buildup, the methods and specific tools used for cleaning remington shaver head.are different due to the unique design and function of each device.

Frequently Asked Questions Of How To Clean The 3D Print Nozzle

How Do You Clean The Ender 3 Nozzle?

To clean the Ender 3 nozzle, heat it up, carefully remove any filament residue, and use a nozzle cleaning tool if necessary.

Should I Clean The Nozzle After Every Print?

Yes, it is recommended to clean the nozzle after every print for better print quality and to prevent clogs.

How Often Should You Clean 3D Printer Nozzle?

Clean your 3D printer nozzle every few weeks to maintain optimal performance and prevent clogs.

How Do I Clean My Ender 3 Printer With A Nozzle Kit?

To clean your Ender 3 printer with a nozzle kit: 1. Disconnect the printer and remove the nozzle. 2. Soak the nozzle in a cleaning solution for 15 minutes. 3. Use a nozzle cleaning filament to clear any clogs. 4. Reinstall the clean nozzle and reconnect your printer.

Conclusion

Cleaning the 3D print nozzle is a crucial step in maintaining print quality and extending the lifespan of your printer. By regularly removing any clogs or blockages, you can ensure smooth and precise prints every time. The nozzle is where the filament comes out, and over time, it can accumulate debris or residue from previous prints.

To clean it, start by heating the nozzle to a specific temperature that will allow any leftover filament to melt and be easily removed. Next, use a cleaning tool, such as a needle or toothbrush, to gently scrape away any stubborn residue.

It’s important to be careful not to damage the delicate nozzle while cleaning. Once the cleaning is complete, ensure that the nozzle is thoroughly dried before continuing with your next print. Regular nozzle cleaning will optimize your printing experience by avoiding print inconsistencies and blockages.
