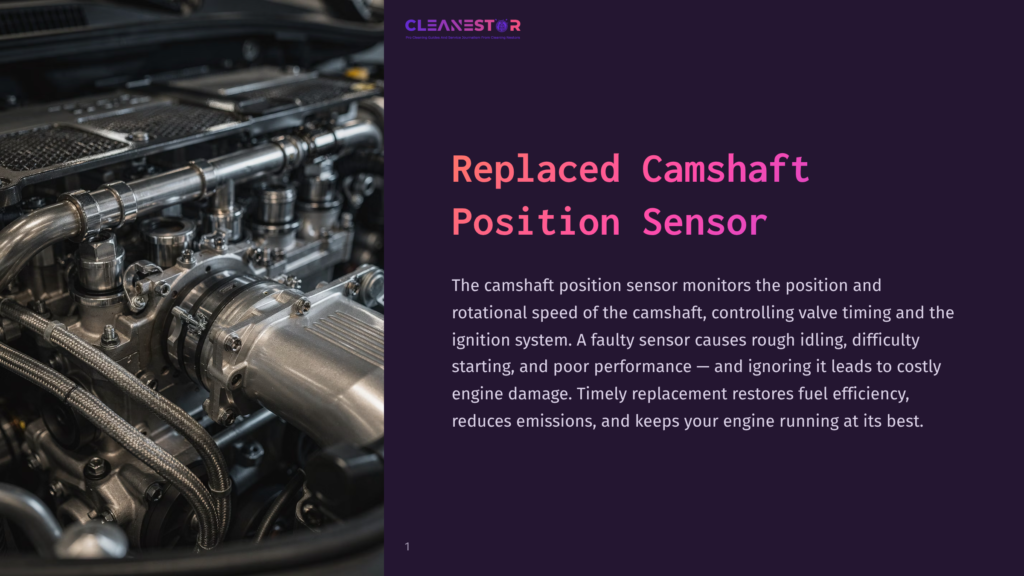

The camshaft position sensor plays a pivotal role in your vehicle’s engine operation. It monitors the position and rotational speed of the camshaft, which in turn controls the timing of the valves and ignition system. Timely replacement of a faulty sensor ensures that your engine runs smoothly, with improved fuel efficiency and reduced emissions.

Ignoring signs of a failing sensor, such as rough idling or difficulty starting, can lead to more serious engine problems. Vehicle owners should prioritize this maintenance to prevent costly repairs and maintain optimal performance. This essential sensor is a key component in modern engine management systems, making its proper function critical for any car’s health and efficiency.

Introduction To Camshaft Position Sensors

Understanding Camshaft Position Sensors

The camshaft position sensor plays a crucial role in your vehicle’s engine. It ensures that the engine’s valves open and close at the correct times. This sensor provides real-time data, helping the engine maintain optimal performance. Understanding its functions and signs of failure is key to vehicle maintenance.

Key Functions In Engine Management

The camshaft position sensor has several important functions:

  • Timing: It helps set the ignition timing.
  • Fuel Injection: It controls fuel injectors.
  • Efficiency: It ensures the engine runs efficiently.

Symptoms Of A Failing Sensor

A failing camshaft position sensor can show several symptoms:

  • Check Engine Light: The dashboard light may turn on.
  • Performance Issues: The engine might run poorly.
  • Starting Trouble: The car could be hard to start.

Tools And Materials Needed For Replacement

Preparing the correct tools and materials is crucial for a successful camshaft position sensor replacement. A seamless installation begins with choosing the right sensor for your vehicle and gathering all the essential tools. This guide will walk you through the necessary items to ensure the job goes smoothly.

Choosing The Right Sensor

Selecting a compatible camshaft position sensor is the first step. Check your vehicle’s manual or consult with a professional to find the correct model. Use online databases to cross-reference your car’s make, model, and engine type. Always opt for quality brands to avoid future issues.

Essential Tools For The Job

Gather your tools before starting the replacement process. Here’s what you’ll need:

  • Socket set: For unscrewing bolts.
  • Screwdrivers: To help with prying and unplugging.
  • Torque wrench: For precise tightening.
  • Diagnostic tool: To ensure proper function after installation.

Don’t forget work gloves to protect your hands and safety glasses for your eyes. Keep a magnetic parts tray nearby to secure small metal components. Ensure good lighting to see into the engine bay. Lastly, have a clean workspace to lay out your tools and the new sensor.

Preparation For Sensor Replacement

Changing a camshaft position sensor is vital for your car’s performance. Before starting, proper preparation ensures a smooth and safe process. Follow these steps to get ready for sensor replacement.

Vehicle Safety Measures

Always prioritize safety when working on a vehicle. Set the parking brake and ensure the car is in park or neutral. Use wheel chocks to prevent the car from moving. Work in a well-ventilated area and wear safety glasses to protect your eyes. Keep a fire extinguisher nearby in case of emergencies.

Engine And Battery Precautions

Before replacing the sensor, let the engine cool down. This prevents burns and other injuries. Disconnect the battery to avoid electric shocks. Use a wrench to loosen the negative cable and remove it from the battery post. Make sure the cable does not touch any metal parts of the car.

Step Action
1 Park the car on a level surface and apply the parking brake.
2 Place wheel chocks around the wheels.
3 Allow the engine to cool before starting work.
4 Disconnect the car battery, starting with the negative terminal.
  • Clear the work area of any tools or objects that could cause injury.
  • Gather all necessary tools and parts before starting.
  • Double-check that the new sensor matches the old one.

With these precautions in place, you’re ready to replace the camshaft position sensor safely and effectively.

Locating The Camshaft Position Sensor

Finding the camshaft position sensor is crucial for any DIY mechanic or car enthusiast. This sensor plays a key role in engine management. It helps the engine control unit (ECU) determine the exact position of the camshaft. This information ensures proper timing of fuel injection and ignition. Let’s dive into how you can locate this important component under the hood.

Understanding Engine Layout

Before attempting to locate the sensor, familiarize yourself with your vehicle’s engine layout. Each car model may have a unique design. Consult the vehicle’s manual for specific details.

Look for the cylinder head. It’s usually located at the top of the engine block. The camshaft position sensor is often near this part. It might be mounted on the cylinder head itself.

Accessing The Sensor

Once you know where to find the sensor, accessing it is the next step. Follow these simple steps for a smooth process:

  • Turn off the engine and let it cool down.
  • Disconnect the car battery for safety.
  • Remove any parts blocking the sensor. This may include the air intake assembly or other engine components.
  • Locate the sensor, which is typically held in place by a bolt or clip.

With these tips, you can locate and access the camshaft position sensor effectively.

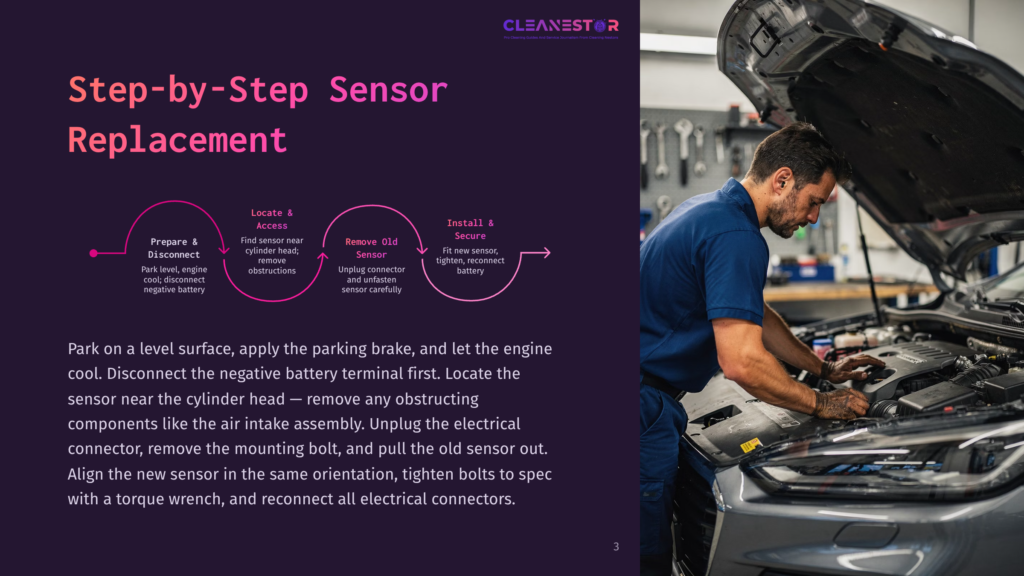

Step-by-step Sensor Removal

Replacing a camshaft position sensor is essential for your vehicle’s performance. This guide provides a clear, step-by-step approach to removing the old sensor. Follow each step to ensure a smooth removal process.

Disconnecting The Battery

First, ensure your vehicle’s safety by disconnecting the battery. This step prevents any electrical issues or shorts while working. Use the following steps:

  1. Turn off your vehicle.
  2. Locate the battery in the engine bay.
  3. Use a wrench to loosen the negative battery terminal.
  4. Remove the terminal from the battery post.
  5. Set the cable aside, ensuring it does not touch any metal.

Removing The Old Sensor

With the battery disconnected, you can safely remove the old camshaft position sensor. Here’s how:

  1. Locate the camshaft position sensor on your engine. Refer to your vehicle’s manual for exact location.
  2. Unplug the sensor’s electrical connector. Squeeze the tab and pull it out carefully.
  3. Remove any fastening bolts with a socket wrench.
  4. Gently pull the sensor out of its mount.

Place the old sensor in a safe spot. You might need to refer to it when installing the new one.

These steps help you safely remove your vehicle’s camshaft position sensor. Always handle each part with care to avoid damage.

Replaced Camshaft Position Sensor


Installing The New Camshaft Position Sensor

Replacing a camshaft position sensor can rejuvenate your vehicle’s performance. It’s a task you can tackle with confidence. Before starting, ensure the engine is cool and the battery is disconnected for safety. This guide will walk you through the installation of your new camshaft position sensor.

Aligning The New Sensor

Proper alignment is crucial for the new sensor to function correctly. Start by carefully removing the old sensor. Take note of its orientation. Place the new sensor in the same position. Make sure it sits flush against the mount.

Securing The Sensor In Place

Once aligned, secure the sensor with the mounting bolts. Use a torque wrench to tighten them to the manufacturer’s specifications. This ensures a firm fit without over-tightening. Reconnect any electrical connectors. Double-check that everything is snug and properly connected.

  • Disconnect battery
  • Remove old sensor
  • Note orientation
  • Align new sensor
  • Tighten bolts to specification
  • Reconnect electrical connectors
  • Check connections

With these steps, your new camshaft position sensor is now installed. Start your engine and enjoy the improved performance.

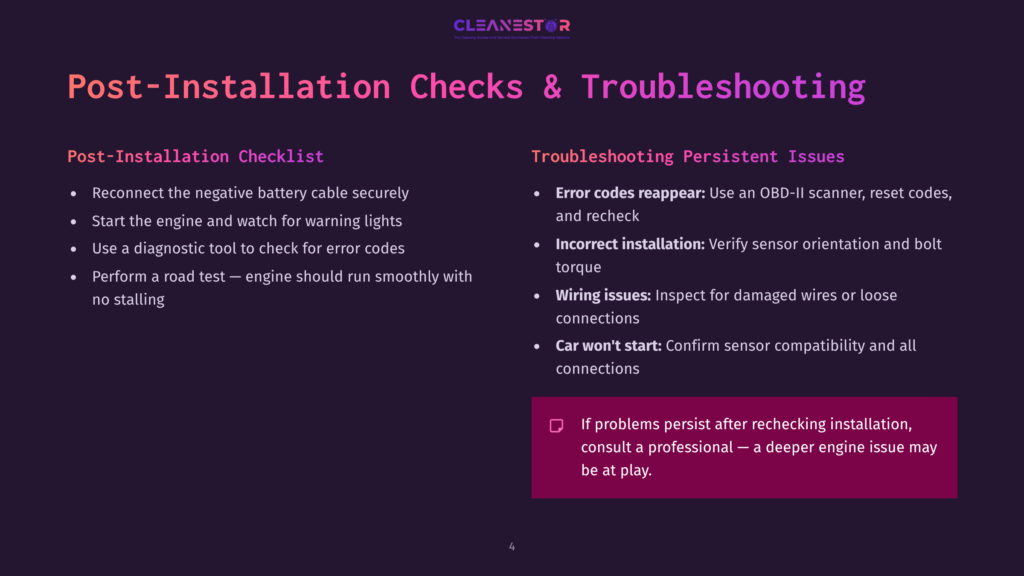

Post-installation Checks

Replacing a camshaft position sensor is a vital task. Once you’ve completed the installation, it’s crucial to perform post-installation checks. These checks ensure your vehicle runs smoothly and the new sensor operates correctly. Let’s walk through the important steps you need to take.

Reconnecting The Battery

After installing the new sensor, reconnect the battery. Follow these steps:

  • Locate the battery in the engine compartment.
  • Attach the negative cable to the battery terminal.
  • Tighten the clamp with a wrench.

Remember, a secure connection is key for your vehicle’s electrical system to work right.

Verifying Sensor Functionality

Next, test the sensor to ensure it’s working. Here’s what you need to do:

  1. Start the engine and let it run for a few minutes.
  2. Watch the dashboard for engine warning lights.
  3. Use a diagnostic tool to check for error codes.

If the sensor is functioning, no warning lights should appear and your diagnostic tool should show no errors.

Perform a road test to confirm the repair. Pay attention to the engine’s performance. It should run smoothly with no stalling or hesitation.

Completing these checks ensures your camshaft position sensor replacement was a success and your vehicle is ready for the road.

Troubleshooting Common Issues After Replacement

Replacing a camshaft position sensor can fix your car’s performance issues. But sometimes, new problems might arise post-installation. Let’s troubleshoot these common issues.

Sensor Error Codes

Error codes can pop up even after a new sensor is installed. These codes often signal that the sensor is not functioning correctly. Here are steps to diagnose:

  1. Use an OBD-II scanner to read the error codes.
  2. Check the specific code in the car’s manual.
  3. Reset the codes and see if they appear again.

This process helps identify if the issue is truly with the sensor or elsewhere.

Dealing With Persistent Problems

Persistent problems might occur even after replacing the sensor. Here’s what you can do:

  • Check installation: Ensure the sensor is installed correctly.
  • Inspect wiring: Look for any damaged wires or poor connections.
  • Consult a professional: Sometimes, a deeper engine issue might be at play.

These steps help address issues that continue after a sensor replacement.

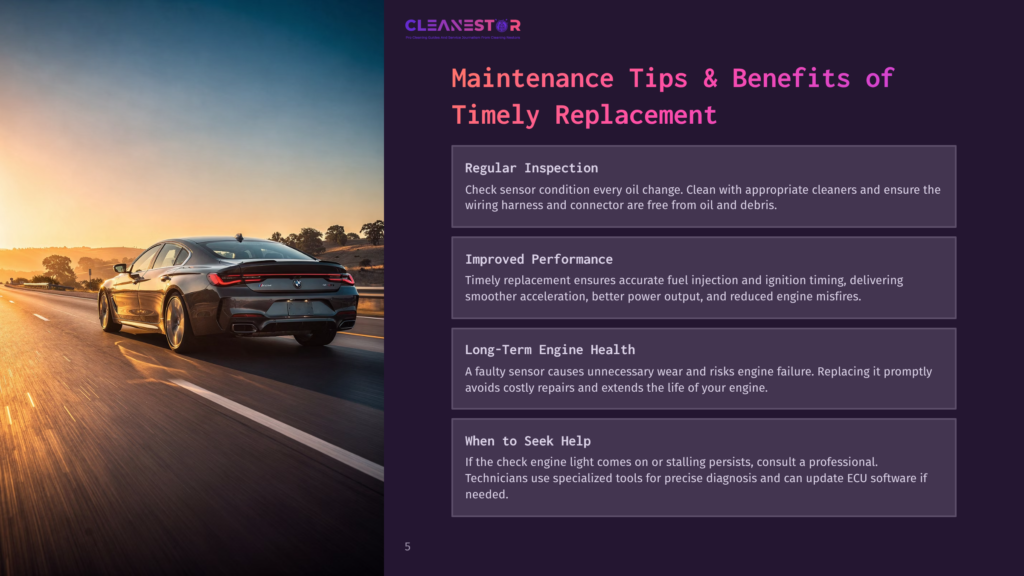

Maintenance Tips For Camshaft Position Sensors

The camshaft position sensor plays a vital role in the efficient functioning of your vehicle’s engine. It ensures the proper timing for fuel injection and ignition processes. Like any car component, it needs regular care. Follow these maintenance tips to avoid performance issues.

Regular Inspection And Cleaning

  • Check the sensor’s condition every oil change.
  • Look for signs of wear or damage.
  • Remove and clean the sensor with appropriate cleaners.
  • Ensure the wiring harness is secure and intact.
  • Keep the sensor’s connector free from oil and debris.

Cleaning prevents buildup that can cause sensor failure. A clean sensor provides accurate readings, ensuring optimal engine performance.

When To Seek Professional Help

  • If the check engine light comes on, get it diagnosed.
  • Performance issues like stalling may indicate sensor problems.
  • Professional help ensures accurate diagnosis and repair.
  • Technicians can update software if necessary.
  • They use specialized tools for precise installation.

Seeking expert assistance ensures your vehicle remains reliable. A professional can spot issues you might miss and provide swift solutions.

Replaced Camshaft Position Sensor


Benefits Of Timely Sensor Replacement

The camshaft position sensor plays a crucial role in your vehicle’s engine management system. Replacing this sensor on time ensures your car runs smoothly. Let’s explore the advantages of not delaying this essential maintenance task.

Improved Engine Performance

A timely sensor swap boosts engine response. It ensures accurate timing for fuel injection and ignition. This precision leads to smoother acceleration and better power output. It also helps in reducing engine misfires, which can be both annoying and harmful to your vehicle.

  • Optimal fuel consumption
  • Decreased harmful emissions
  • Enhanced throttle response

Long-term Vehicle Health

Think of sensor replacement as an investment in your vehicle’s future. A faulty sensor can lead to serious engine damage over time. By replacing it promptly, you are avoiding costly repairs and extending the life of the engine.

Without Timely Replacement With Timely Replacement
Increase in wear and tear Prevents unnecessary engine strain
Potential for engine failure Maintains engine integrity
High repair costs in the future Keeps maintenance costs manageable
Replaced Camshaft Position Sensor


Frequently Asked Questions

What To Do After Replacing Camshaft Sensors?

After replacing camshaft sensors, reset the vehicle’s ECU, clear any error codes, test drive to check sensor operation, and monitor for engine performance issues. Ensure all connections are secure before finishing.

Why Am I Still Getting A Code When I Replace My Camshaft Sensor?

You might still receive a code after replacing your camshaft sensor due to incorrect installation, a faulty replacement part, or underlying engine issues. Ensure proper installation and check for additional problems.

How Do I Reset A Camshaft Position Sensor?

To reset a camshaft position sensor, disconnect the car battery, wait a few minutes, and reconnect it. This process can recalibrate the sensor. Always consult your vehicle’s manual for specific instructions.

Why Won’t My Car Start After Changing The Camshaft Sensor?

Your car may not start after changing the camshaft sensor due to incorrect installation, a faulty new sensor, or unrelated electrical issues. Ensure all connections are secure and the sensor is compatible.


Replacing your camshaft position sensor can significantly enhance your vehicle’s performance. This simple fix ensures optimal fuel efficiency and smoother engine operation. Remember, timely maintenance prevents costly repairs in the future. Trust your car to deliver its best by keeping up with essential upkeep.
