How to Take Apart Shark Lift-Away Vacuum

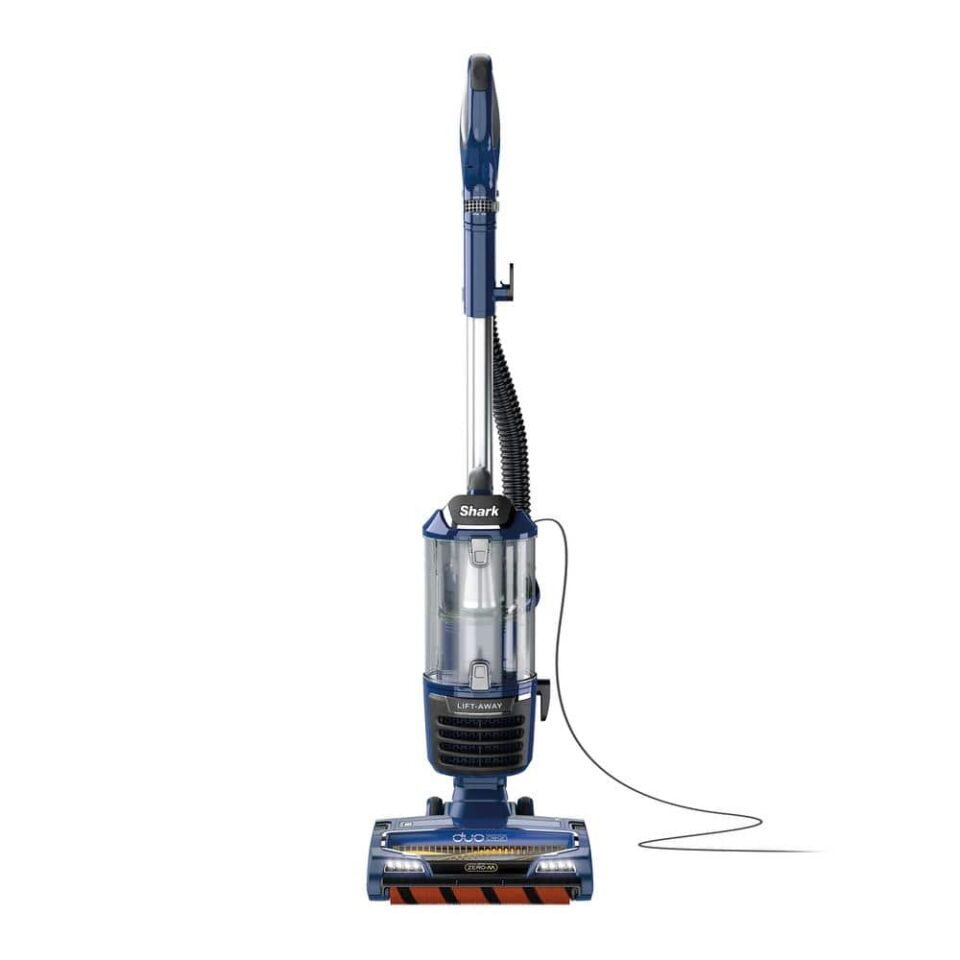

The Shark Lift-Away Vacuum is a versatile and powerful cleaning tool renowned for its ability to transform from a traditional upright vacuum into a portable cleaning device. Its complex structure allows users to tackle a variety of cleaning tasks with ease. Whether you’re performing a deep clean or simply maintaining your living space, knowing how to properly disassemble your Shark Lift-Away can be invaluable for maintenance and storage. In the next sections, we’ll guide you through the different components and features as well as identifying key parts and attachments.

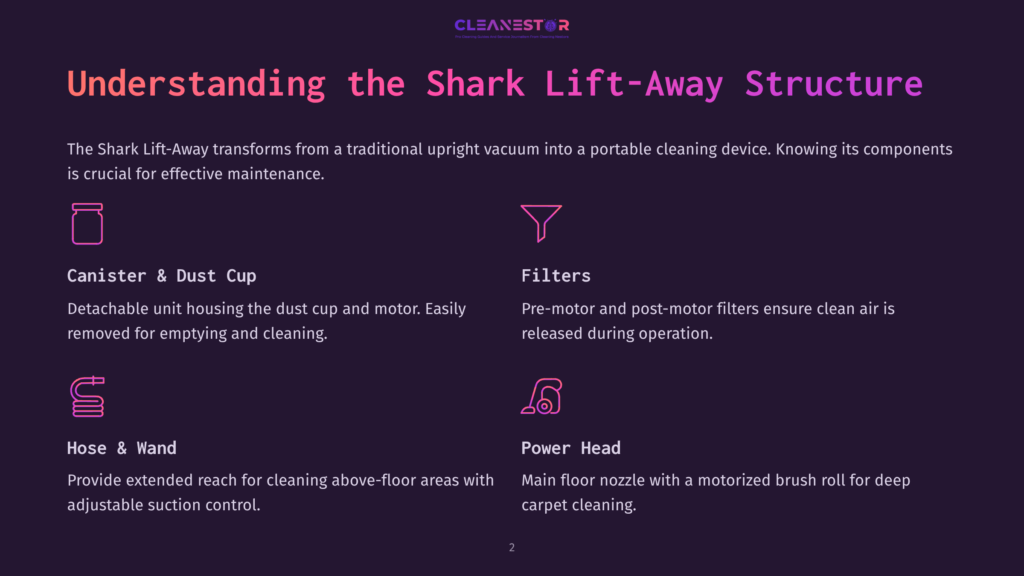

Components And Features

Understanding the various components and features of your Shark Lift-Away Vacuum is crucial for troubleshooting and maintenance. Here’s a breakdown of these important aspects:

• Canister: The detachable unit that houses the dust cup and motor.
• Dust Cup: Where debris is collected; easily removed for emptying and cleaning.
• Filters: Includes both pre-motor and post-motor filters to ensure clean air is released.
• Hose and Wand: Provide an extended reach for cleaning above-floor areas.
• Power Head: The main floor nozzle with a motorized brush roll for deep carpet cleaning.
• Attachments: Various tools that can be connected for specialized cleaning tasks.
• Suction Control: Allows adjustment of suction power for different surfaces.

Each feature is designed with user-friendliness in mind, ensuring the Shark Lift-Away is as effective as it is convenient.

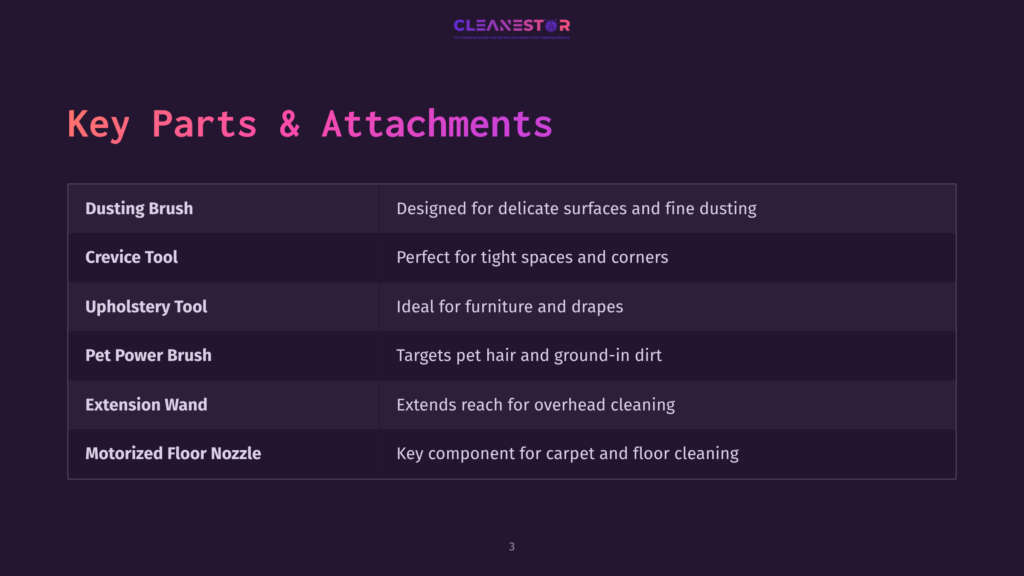

Identifying Key Parts And Attachments

Becoming familiar with the key parts and attachments of your Shark Lift-Away will make disassembly a breeze:

Part/Attachment	Description
Dusting Brush	Designed for delicate surfaces and fine dusting.
Crevice Tool	Perfect for tight spaces and corners.
Upholstery Tool	Ideal for furniture and drapes.
Pet Power Brush	Targets pet hair and ground-in dirt.
Extension Wand	Extends reach for overhead cleaning.
Motorized Floor Nozzle	Key component for carpet and floor cleaning.

Knowing these parts and how they connect to your vacuum will enable efficient disassembly and assist with any required cleaning or replacement.

Embarking on a deep-clean journey with your Shark Lift-Away Vacuum can sometimes require a bit of handy work. Whether it’s for maintenance, troubleshooting, or just a thorough cleaning, knowing how to take apart your vacuum is essential. Before diving into the disassembly process, let’s focus on the tools required for disassembling. Having the right tools in your arsenal is key to a smooth and safe disassembly experience.

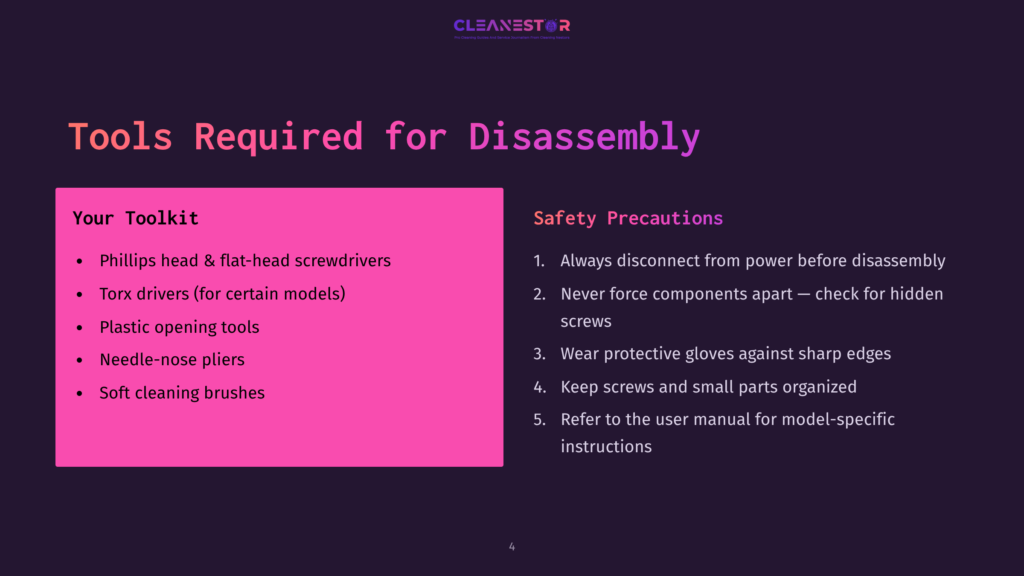

List Of Tools Needed

To start, here is the fundamental lineup of tools that will assist in taking apart your Shark Lift-Away Vacuum:

• Screwdrivers: A set of Phillips head and flat-head screwdrivers are crucial. These will help in removing screws of various sizes.
• Torx drivers: Certain models may require Torx drivers for specialized screws.
• Plastic opening tools: To prevent damage to the vacuum’s plastic parts while prying open the casing.
• Pair of pliers: Needle-nose pliers can be handy for any small or tight components.
• Cleaning brushes: Soft brushes will help clean out any dust from the interior without scratching surfaces.

Proper Usage And Safety Precautions

When handling tools and taking apart your vacuum cleaner, several best practices should be strictly followed:

1. Always disconnect the vacuum from the power source before attempting to disassemble it. This is key to avoiding potential electrical hazards.
2. Don’t force any components apart; if something isn’t coming loose, double-check for hidden screws or fasteners.
3. Wear protective gloves to guard against sharp edges.
4. Keep the screws and small parts organized to avoid losing any essential components during reassembly.
5. Refer to the Shark Lift-Away Vacuum’s user manual for any model-specific instructions that could affect disassembly.

Use the tools with care to prevent damage to the vacuum and personal injury. With a systematic approach and the right set of tools, disassembling your Shark Lift-Away Vacuum is a task well within reach!

Tackling the disassembly of a Shark Lift-Away Vacuum can seem like a daunting task, but it doesn’t have to be! Whether you’re aiming to perform a thorough cleaning or undertake some maintenance, breaking down the process into clear steps can make the task much easier. This step-by-step guide will walk you through each part of the disassembly process. By following these simple instructions, you can confidently take apart your Shark vacuum without any hassle.

Step 1: Removing the Canister and Filters

Removing The Canister And Filters

Start with the basics: removing the canister and filters is the first step in the disassembly process. Doing so will give you more room to work with and prevent any leftover debris from making a mess.

List the steps

1. Power off the vacuum and unplug it from the electrical outlet to ensure safety.
2. Locate the release button for the dust canister. It’s usually located near the top of the vacuum.
3. Press the button and pull the canister away from the vacuum’s body.
4. Open the canister over a trash bin and empty the contents.
5. Remove the filters – there will typically be a foam filter and a felt filter underneath the canister.

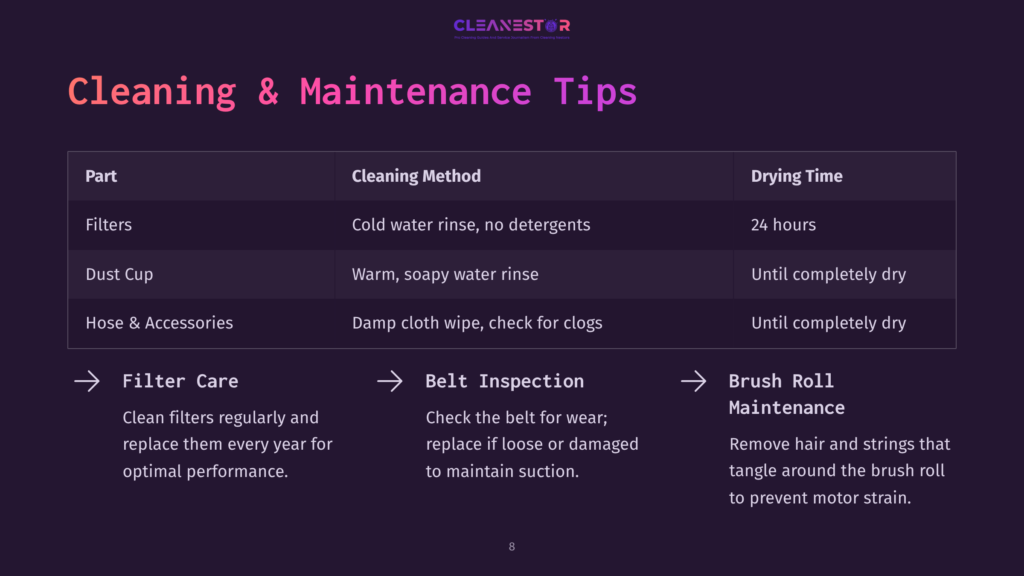

6. Wash the filters if necessary, following the manufacturer’s instructions.

Step 2: Detaching the Hose and Brush Roll

Detaching The Hose And Brush Roll

With the canister and filters out of the way, the hose and brush roll are the next targets. Removing them provides access to the interior pathways that may be clogged.

Bulleted list for hose and brush roll removal steps

• Locate the hose connection points to the main vacuum body and wand.
• Press the release buttons to detach the hose.
• For the brush roll, flip the vacuum to expose the brush roll’s cover.
• Use a screwdriver to remove screws that hold the cover in place.
• Lift away the cover and carefully pull out the brush roll.
• Remove any debris entangled in the brush roll and clean the bristles.

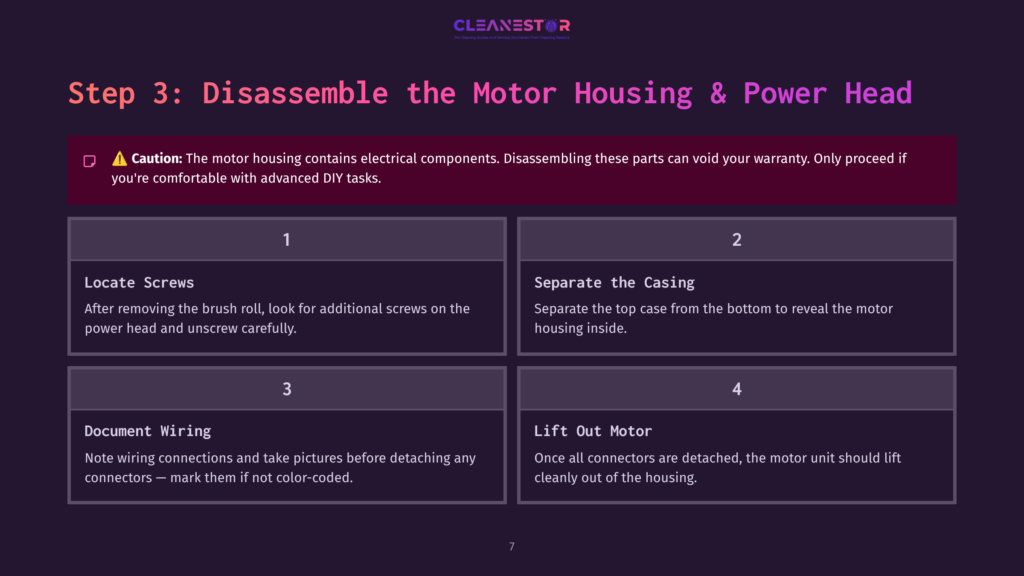

Step 3: Disassembling the Motor Housing and Power Head

Disassembling The Motor Housing And Power Head

Approach with caution: The motor housing and power head contain the electrical components of your vacuum. Disassembling these parts can void your warranty and should only be done if you’re comfortable with more advanced DIY tasks.

Ordered list for motor housing and power head disassembly

1. After removing the brush roll, look for additional screws on the power head.
2. Unscrew carefully to avoid stripping any screws.
3. Separate the top case from the bottom to reveal the motor housing.
4. Note the wiring connections and take pictures if necessary to help with reassembly.
5. Detach any connectors with caution, marking them if they are not color-coded.
6. Once disconnected, the motor unit should be able to lift out of the housing.

Remember to stay organized: Keep track of all screws and parts, preferably in labeled containers, to simplify the reassembly process. Taking pictures before each step can also serve as an invaluable reference.

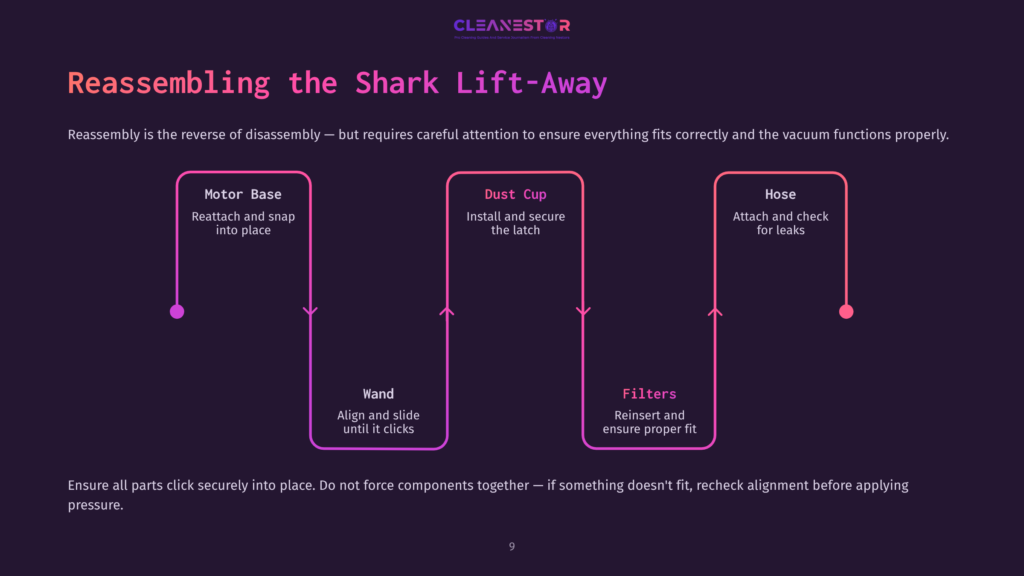

Reassembling the Shark Lift-Away Vacuum is just as straightforward as taking it apart, though it requires an eye for detail to ensure everything fits back into place correctly. The process involves reversing the disassembly steps, but it is crucial to do so methodically to maintain the vacuum’s functionality. Follow this step-by-step guide to seamlessly put your Shark Lift-Away vacuum back together and get it ready for action once more.

Step-by-step reassembly process

Step-by-step Reassembly Process

With all components cleaned and ready, it’s time to piece your Shark Lift-Away vacuum back together. This step-by-step process is your map to a successful reassembly:

1. Reattach the Motor Base – Align the motor base with the vacuum body and gently push until it clicks into place.
2. Assemble the Wand – Connect the vacuum wand by sliding it into the motor base until it locks with an audible click.
3. Install the Dust Cup – Place the dust cup onto its holder at the top of the vacuum base, ensuring it fits snugly.
4. Reinsert the Filters – Carefully place the pre-motor and post-motor filters back in their respective housings. Make sure they’re seated properly for optimal air flow.
5. Attach the Hose – Coupling the hose might take a slight twist but once aligned, it should snap back into its original position easily.
6. Connect Accessories – Lastly, affix any additional accessories, such as the crevice tool or upholstery brush, into their designated on-board storage.

Testing the vacuum after reassembling

Testing The Vacuum After Reassembling

Testing your vacuum post-assembly is critical to confirm that all parts have been put back precisely and the machine operates as expected. Follow these simple checks:

• Power it On – Connect your vacuum to a power source and switch it on. Listen for irregular noises which might indicate a part isn’t fitted correctly.
• Check Suction – Perform a quick test run on a debris-free area. The suction should feel robust and uninterrupted. If not, recheck the filters and hose connections.
• Test Attachments – Use the various attachments to ensure they are secure and functional. Adjust settings like suction power and brush roll operation to verify their responsiveness.

After these steps, your Shark Lift-Away vacuum should be assembled, tested, and ready to tackle any cleaning challenge in your home!
