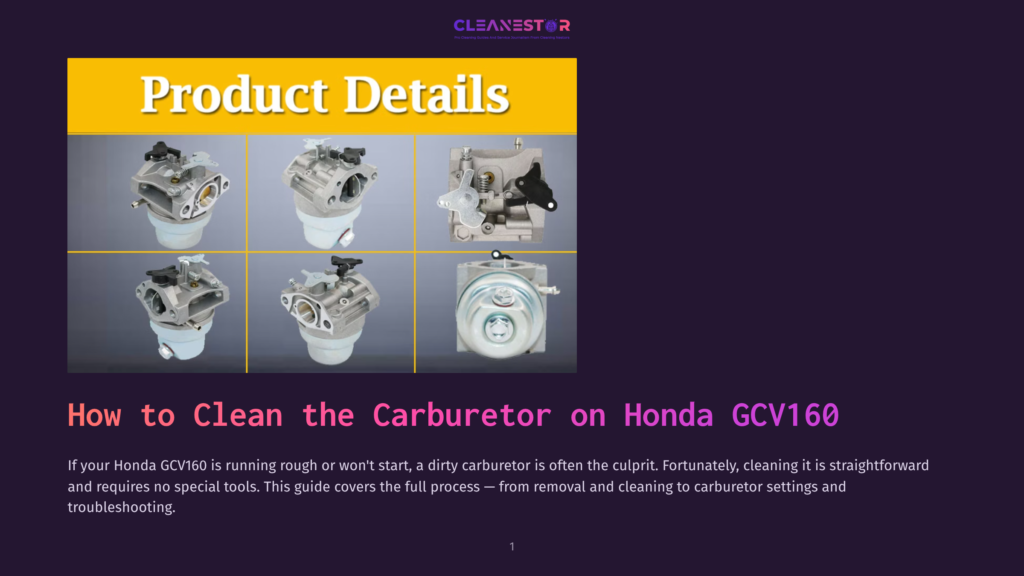

How to Clean the Carburetor on Honda Gcv160?

If your Honda GCV160 is running rough, it may be time to clean the carburetor. This simple process can be done in a few steps and does not require any special tools. 1. Remove the air filter cover and element.

2. Disconnect the spark plug wire. 3. Place a rag over the spark plug hole to prevent debris from entering. 4. Remove the carburetor bowl nut with a wrench and lift off the bowl assembly.

Be careful not to lose the small gasket under the nut! 5. Use a stiff brush or carb cleaner spray to remove any dirt or debris from all surfaces of the carb, being especially careful around tiny passages and ports. A toothpick can also be helpful for getting out stubborn grime.

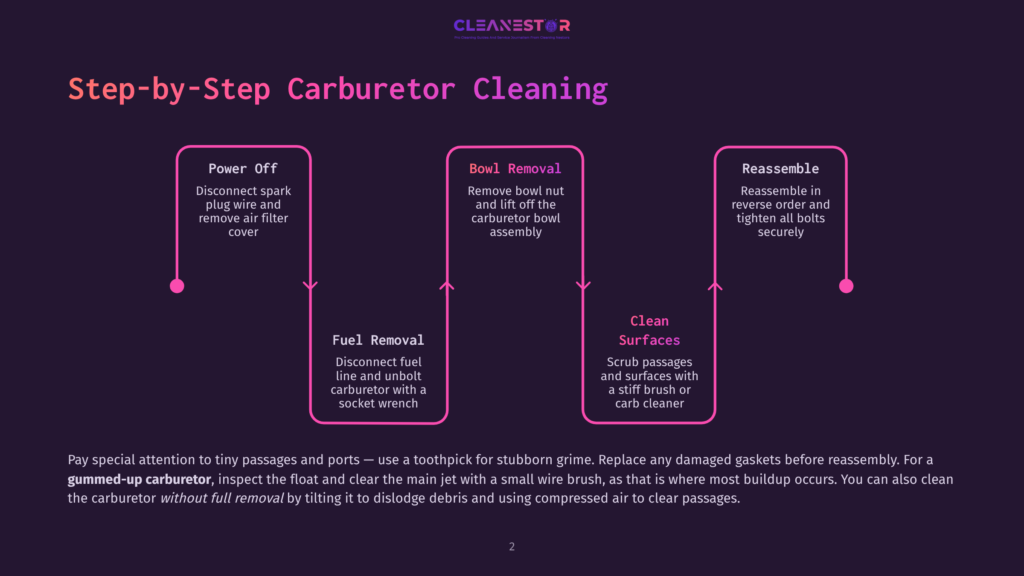

How to Clean the Carburetor on Honda Gcv160

  • Place the Honda GCV160 on a level surface and turn off the engine
  • Remove the air filter cover by unscrewing the two bolts that secure it in place with a Phillips head screwdriver
  • Disconnect the fuel line from the carburetor by depressing the clip that secures it and pulling it away from the carburetor
  • Remove the four bolts that secure the carburetor to the engine with a socket wrench and lift it off of the engine
  • Dip a clean rag into some carburetor cleaner and wipe down all of the surfaces of the carburetor, being sure to get all of the nooks and crannies
  • Replace any gaskets or parts that are damaged or worn out before putting everything back together again
  • Put everything back together in reverse order, being sure to tighten all bolts securely

Honda Gcv160 Carburetor Service Manual

If you own a Honda GCV160 engine, then you know that proper maintenance is key to keeping it running smoothly. Part of that maintenance includes occasionally servicing the carburetor. While this may sound like a daunting task, it’s actually not too difficult – as long as you have the right service manual.

The Honda GCV160 Carburetor Service Manual is a comprehensive guide to servicing your carburetor. It covers everything from basic adjustments to complete overhauls and provides detailed illustrations and step-by-step instructions. With this manual in hand, you’ll be able to keep your GCV160 engine in top shape for years to come.

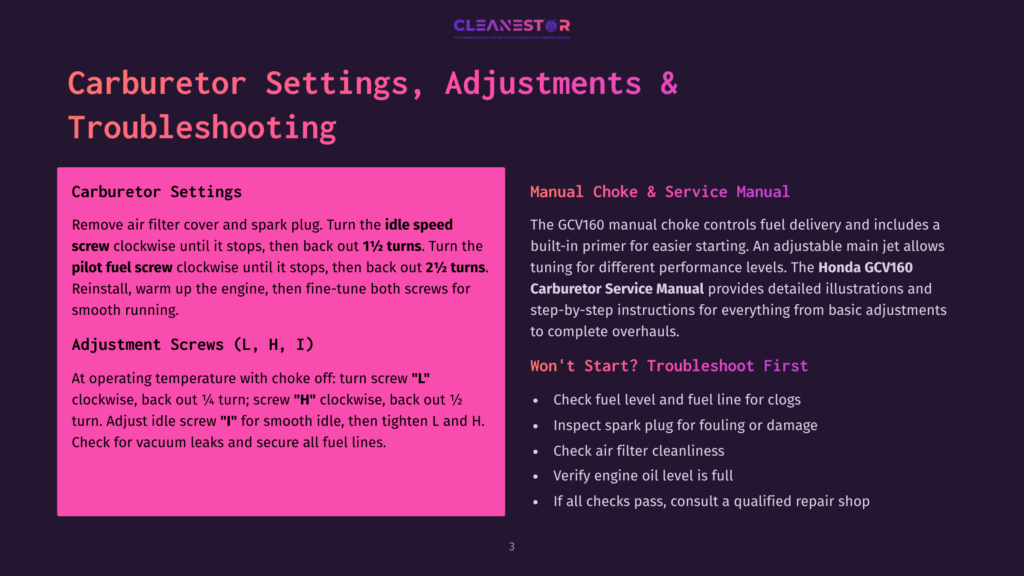

Honda Gcv160 Carburetor Settings

If you’re having trouble with your Honda GCV160 carburetor, you may need to adjust the settings. Here’s a detailed guide on how to do just that. First, start by removing the air filter cover and spark plug.

Next, locate the idle speed adjusting screw on the side of the carburetor. Turn it clockwise until it stops, then turn it counterclockwise for 1 1/2 turns. Next, find the pilot fuel screw and turn it clockwise until it stops, then turn it counterclockwise for 2 1/2 turns.

After that, replace the spark plug and air filter cover. Start the engine and let it warm up for a few minutes. Adjust the idle speed screw until the engine is running smoothly.

Finally, adjust the pilot fuel screw until the engine is running at its best.

Honda Gcv160 Carburetor Adjustment Screws

If your Honda GCV160 engine is running rough, it may be time to adjust the carburetor. The carburetor adjustment screws are located on the side of the carburetor body and are used to fine-tune the engine’s idle speed and mixture. Before making any adjustments, make sure that the engine is at operating temperature and that the choke is off.

Then, turn the screw marked “L” clockwise until it stops, then back out the screw 1/4 turn. Next, turn the screw marked “H” clockwise until it stops, then back out the screw 1/2 turn. Now you can start adjusting the idle speed screw (marked “I”) until the engine runs smoothly at idle.

Once you have found the sweet spot, tighten both screws (“L” and “H”) securely. Finally, check for any vacuum leaks around the carburetor gaskets and make sure that all fuel lines are securely connected.

Honda Gcv160 Carburetor Manual Choke

The Honda Gcv160 Carburetor Manual Choke is a great choice for those who want a reliable and easy-to-use carburetor. This carburetor is designed for use with Honda engines, and it offers a variety of features that make it a great choice for anyone looking for an aftermarket option. The manual choke allows you to control the amount of fuel that is delivered to the engine, and it also has a built-in primer that makes starting the engine much easier.

The carburetor also comes with an adjustable main jet that can be used to tune the engine for different performance levels. Overall, the Honda Gcv160 Carburetor Manual Choke is an excellent choice for anyone looking for an aftermarket carburetor option.

How To Clean The Carburetor On Honda Gcv160

Credit: www.amazon.com

How Do You Clean a Carburetor on a Lawn Mower Without Removing It?

If your lawn mower is starting to have trouble starting up, or if it’s running a bit rough, there’s a good chance that the carburetor is dirty and needs to be cleaned. Luckily, you don’t necessarily need to remove the carburetor from the lawn mower in order to clean it – although removing it will make the job easier. Here’s how you can clean a carburetor on a lawn mower without removing it:

1. First of all, make sure that your lawn mower is turned off and disconnect the spark plug wire so that there’s no risk of accidentally starting up the engine while you’re working. 2. Next, locate the carburetor – it’s usually located near the air filter housing. 3. Use a screwdriver or other tool to remove the screws or bolts that hold the carburetor in place (on some models, there may be a fuel line running to the carburetor which will need to be disconnected first).

4. Once the carburetor is loose, tilt it slightly so that any dirt or debris falls out of it (into a bowl or other container). You may also want to use compressed air or an aerosul brush attachment on the vacuum cleaner hose)to blow out any stubborn dirt particles. If needed, use a small wire brush or toothpick to clean out any remaining dirt from inside the carburetor passages.

Be careful not to damage any delicate parts inside the carburetor! 5. Reassemble everything in reverse order – making sure that all screws/bolts are tightened securely and there are no leaks anywhere before attempting to start up your lawn mower again.

Why Does My Honda Gcv160 Won’T Start?

If your Honda GCV160 won’t start, there are a few things you can check to troubleshoot the issue. First, make sure that there is gas in the tank and that the fuel line is not clogged. Next, check the spark plug to see if it is fouled or damaged.

If the spark plug looks good, then check the air filter to see if it is clean. Finally, check the engine oil level and make sure it is full. If all of these things check out, then you may need to take your Honda GCV160 to a qualified repair shop for further diagnosis.

Can I Clean a Carburetor Myself?

Carburetors are one of the most important parts of an engine, and keeping them clean is essential to maintaining peak performance. While it is possible to clean a carburetor yourself, it’s best to leave this task to a professional. There are a few reasons why you shouldn’t try to clean your carburetor yourself.

First, carburetors are delicate and easily damaged. Second, they’re hard to reach – most are located deep inside the engine compartment and require special tools to access. Finally, many modern carburetors have electronic components that can be easily damaged by water or cleaners.

If you do decide to attempt cleaning your own carburetor, be sure to follow all instructions carefully and use only safe, gentle cleaners designed specifically for carburetors. Never use harsh chemicals or solvents on your carburetor – these can damage sensitive parts and cause serious problems. If in doubt, always err on the side of caution and take your car to a professional mechanic for service.

How Do You Clean a Gummed Lawn Mower Carburetor?

If your lawn mower carburetor gets gummed up, it can cause all sorts of problems. The good news is that you can clean a gummed-up carburetor yourself, and it’s not that difficult. Here’s how:

1. Start by disconnecting the spark plug wire from the spark plug. This will prevent the engine from starting while you’re working on it. 2. Next, remove the air filter cover and unscrew the carburetor bowl nut with a wrench.

Be careful not to strip the nut – if it’s stuck, you may need to use a penetrating oil to loosen it up first. 3. With the carburetor bowl removed, take a look inside. If there is any old gas or oil in there, clean it out with a rag or brush.

Then inspect the float for any damage – if it looks ok, set it aside for now. 4. Now take a look at the jets and passages in the carburetor body – these are what can get gummed up over time and cause problems. Use a small wire brush or toothpick to clear any debris or blockages that you see.

Pay special attention to the main jet – this is often where most of the gunk builds up over time. 5 . Once everything is clear, put everything back together in reverse order – be sure to hand-tighten the carburetor bowl nut so you don’t strip it again!

And that’s all there is to cleaning a gummed-up lawn mower carburetor!

Are the Steps to Clean the Honda Gcv160 Carburetor Similar to Cleaning an Outboard Carburetor?

When it comes to cleaning the Honda GCV160 carburetor, the steps are similar to the cleaning outboard carburetor guide. Start by removing the carburetor from the engine and disassembling it. Then, clean all the parts with carburetor cleaner and a small brush before reassembling and reinstalling.

Honda GCV160 Carb Clean

Conclusion

If your Honda GCV160 engine is having trouble starting up, or if it’s running inconsistently, one potential issue could be a dirty carburetor. Fortunately, cleaning the carburetor on this model of Honda engine is relatively straightforward. You’ll need to start by disconnecting the spark plug and fuel lines, then remove the air filter housing and carburetor bowl cover.

Once you’ve done that, use a brush and some carburetor cleaner to remove any dirt or debris from the inside of the carburetor. Be sure to rinse everything thoroughly before putting everything back together again. With a clean carburetor, your Honda GCV160 engine should run more smoothly.
