Keeping a power valve system clean is essential for consistent throttle response and top-end performance on any 2-stroke snowmobile or bike. This step-by-step guide explains the right way to clean power valves, whether you ride an Arctic Cat, Polaris, Honda, or a general snowmobile or bike platform. Below is what this guide will cover:
- What a power valve does inside the cylinder and how it affects exhaust flow
- How carbon and oil create hard carbon deposits that lead to sticky, dirty power valves
- Maintenance practices that prevent buildup and keep the system operating smoothly
- Which cleaner to use and when to remove the valve versus cleaning it in place
- How to avoid damage to the valve, housing, gasket, and cable assembly

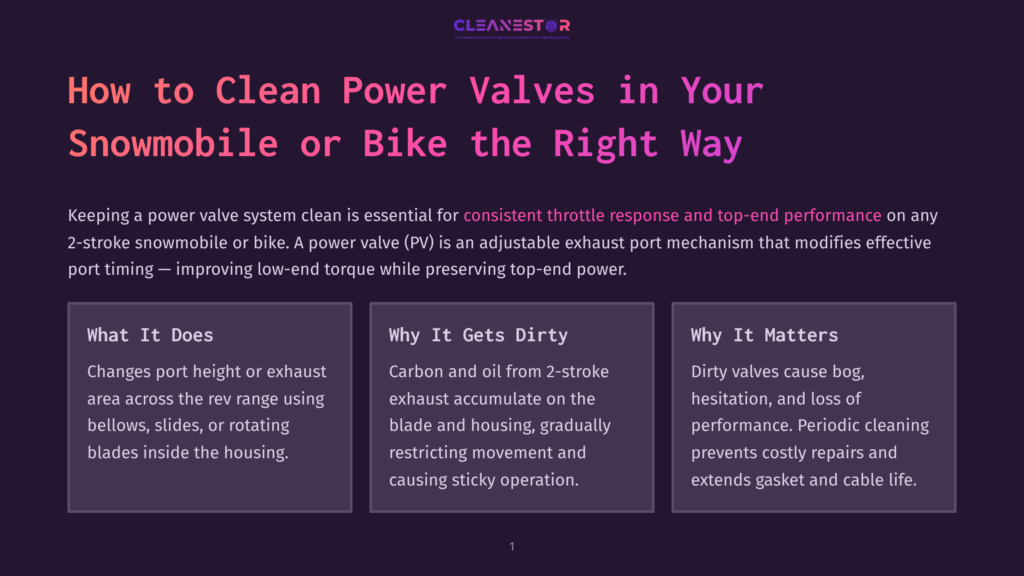

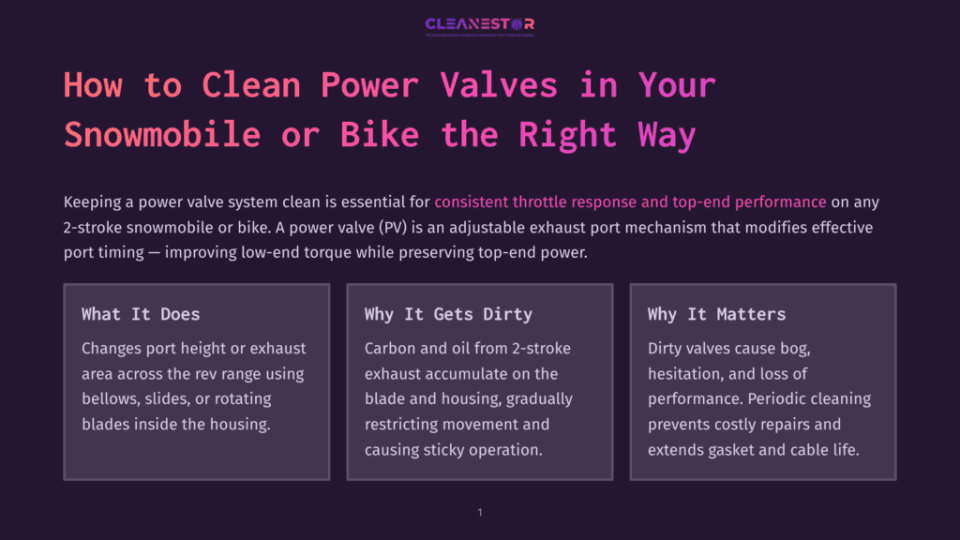

Understanding Power Valves
A power valve, often called a PV or powervalve, is an adjustable exhaust port mechanism in a 2-stroke engine that helps the exhaust pipe and cylinder timing work across the rev range. By changing port height or exhaust area, it improves low-end torque and throttle response while preserving top-end performance.
Different manufacturer designs use bellows, slides, or rotating blades within the housing. Proper maintenance ensures the valve can move through its slot without a jam, stays free of stiff residue, and works in harmony with the carb, plug, and pipe to keep the engine responsive mile after mile on your sled or bike.
What are Power Valves?
Power valves are mechanical assemblies located in the exhaust side of a 2-stroke cylinder that modify effective port timing. Some use a bellows or liquid-actuated governor, others use a cable and linkage driven by RPM, and some rely on an electronic servo. Regardless of the system, the valve rides in a close-tolerance housing and must slide or rotate freely in tight spots.
When clean, it opens and closes smoothly to optimize scavenging and throttle response. The assembly often includes a blade, a shaft, a bolt, gasket surfaces, and a cover. Follow the service manual for correct disassembly, inspection, and reinstallation after any modification or rebuild.
Importance of Clean Power Valves
Clean valves directly affect performance, fuel efficiency, and reliability.
Carbon and oil from 2-stroke exhaust accumulate on the powervalve blade and in the housing, gradually restricting movement. Regular maintenance to clean power valves prevents sticky operation that hurts low-end pull and top end, reduces the chance of a jam, and maintains consistent throttle response.
Clean surfaces also extend gasket life, reduce wear on the cable assembly and slots, and help the engine run cooler and smoother on every ride. Periodic cleaning with the right cleaner prevents costly repairs and aligns with manufacturer recommendations.
Common Issues with Dirty Valves
Dirty power valves develop stiff, sticky movement from hard carbon deposits, causing poor throttle response, bog, and loss of performance. If carbon causes the valve to seize, the engine can feel flat off idle, hesitate at midrange, or fail to transition to the top end. Excess residue may jam the slide or blade, damage a gasket, or stress the cable and linkage.
Avoid the misuse of harsh cleaners or abrasive tools that can damage edges, housings, or bellows. Ignoring routine maintenance often results in difficult disassembly, stripped bolt heads, and contamination of the cylinder or pipe with debris that a quick wipe or spray cannot fix.
Preparation for Cleaning Power Valves
Confirm your exact engine model and read the manufacturerโs manual first.
Identify whether your power valve uses a cable assembly, bellow, or electronic servo, and note torque specs for each bolt and cover. Plan a clean workspace to prevent dirt from entering the cylinder or exhaust port, and schedule the job when the engine is cool.
Good preparation prevents a jam, protects the gasket surfaces, and minimizes the chance of scratching the housing or slot. This step-by-step prep ensures a smooth disassembly and trouble-free reinstall.
Tools and Materials Needed
Gather a basic and precise tool kit: metric sockets, Allen keys, and a torque wrench to loosen and reinstall each bolt without stripping. Have labeled bags for hardware, a magnetic tray, and a soft scraper for tight spots. Use safe cleaners (contact or carb cleaner) and a dedicated PV solvent soak; avoid oven cleaner on soft alloys. Use nylon or brass brush options, a plastic scraper, and a rag. Keep new gaskets on hand, light oil for reassembly, and a small pick for the cable and slide assembly on your snowmobile or bike.
Safety Precautions
Work on a cool engine, disconnect the plug cap, and ensure ventilation when using solvents. Wear gloves and eye protection. Support the sled or bike securely to prevent tipping during disassembly. Protect the cylinder and pipe openings with a clean rag to prevent carbon or wire fragments from falling inside. Handle the valve blade carefully to avoid cuts, and never use a wire wheel that can gouge the valve or housing.
Step-by-Step Process Overview
The process begins with removing the powder valve cover and carefully loosening the cable or linkage. Mark positions for accurate reinstallation and calibration. Remove the valve assembly, noting each bolt length and gasket orientation. For dirty power valves, proceed with cleaning and reassembly as follows:
- Wipe loose oil and carbon, then soak components overnight if needed to soften hard carbon deposits.
- Gently scrape with a plastic scraper and brush carbon from tight spots, avoiding damage to the slide, slot, or bellow area.
- Rinse with contact cleaner, dry thoroughly, and apply a light oil film.
- Reassemble per the manual, torque to spec, verify free open and close, and perform a quick troubleshooting check before the first ride.
Removing the Power Valves
Removing a power valve the right way begins with careful maintenance habits that protect the engine and ensure top-end performance after reinstall. Work on a cool 2-stroke engine and follow the manufacturerโs manual for your sled or bike. Access the powder valve cover on the cylinder and prepare to loosen the bolt hardware in a step-by-step order.
Mark cable and slide positions to preserve throttle response. Protect the exhaust port and pipe with a rag to prevent carbon or wire debris from entering. Keep parts organized for a smooth rebuild, and note gasket orientation and housing alignment to prevent a jam during reassembly.
How to Safely Remove Valves
To safely remove the powervalve assembly, disconnect the plug and ensure the snowmobile or bike is stable. Spray contact cleaner to flush loose oil and carbon around the cover, then wipe clean. Loosen each bolt gradually, remove the cover, and back off cable tension on systems with a cable or servo.
Slide the valve out of the housing, keeping track of the blade, shaft, and any bellows or liquid actuation parts. Plug the cylinder and exhaust with a clean rag. Avoid aggressive scraping; use only plastic tools if needed to free a sticky PV before a full clean or soak.
Tips for Avoiding Damage
Do not use wire wheels, oven cleaner, or metal prying that can round edges or scar the slot. Use carb cleaner or contact cleaner for a safe spray and wipe, saving a longer soak for hard carbon deposits. Support the assembly to avoid bending the blade or slide.
Never pry against the cylinder or housing with a metal scraper; use a nylon brush in tight spots. Keep bolts labeled to avoid cross-threading on reinstall and follow torque specs from the manual. These tips help keep valves clean, protect gaskets, and maintain consistent throttle response on every ride.
Identifying Different Valve Types
Before you disassemble, identify whether your power valve is a rotating blade, a guillotine slide, or a bellows/liquid-actuated design. Arctic Cat and Polaris 2-stroke sleds commonly use cable-driven or bellow-assisted powervalves, while many Honda bikes use servo and cable assemblies on the exhaust valve.
Some PV systems include multiple sub-valves per cylinder and a synchronization linkage. Knowing your specific design guides removal order protects gasket surfaces and streamlines troubleshooting.
Cleaning the Power Valves
Cleaning a power valve the right way starts with a methodical, step-by-step approach that protects the engine, housing, and gasket while restoring performance. With the cylinder ports plugged by a rag, first spray contact cleaner to float loose oil and carbon so you can wipe safely without dragging grit into tight spots.
For dirty power valves, soak parts to soften hard carbon deposits before you scrape or brush. Use plastic scrapers and nylon brushes to avoid gouging. Keep the assembly organized by bolt and slide orientation to prevent a jam on reinstall and to preserve crisp throttle response on your next ride.
Choosing the Right Cleaner
Use contact or carb cleaner for the final rinse, and a PV-safe solvent soak for heavy deposits. Avoid oven cleaner and aggressive brake cleaner on sensitive finishes, particularly around a bellow, cable, and seal surfaces. On arctic cold shop days, allow extra time for solvent action.
For a general snowmobile or bike, follow the manufacturerโs manual for chemical compatibility. A careful mix of soak, light spray, and controlled wipe restores PV parts so they open and close smoothly without removing protective coatings.
Effective Scraping Techniques
Scrape gently after soaking; let the chemistry do the work. Use a plastic scraper to shave softened carbon from the powder valve blade, slide, and slot, keeping the tool flat to the surface to prevent a nick. Work from the thickest deposits outward, using a nylon brush for tight spots near the cylinder edge and valve housing corners.
Never use a wire wheel or harsh wire brush that can round edges or shed bristles into the engine. If a section remains stiff, re-soak rather than prying. Finish with a light spray of contact cleaner, then wipe with a rag to ensure the valve can open and close freely without binding during reinstallation.
Dealing with Carbon Buildup
Patience is key: soak, test, scrape, repeat.
For dirty power valves that sat multiple rides, an overnight soak loosens layered carbon and oil without damaging the valve. Use controlled heat only if approved in the manual, and avoid any liquid that attacks aluminum. Rotate a PV gently during cleaning to reach hidden carbon that can cause a jam in the slot under load.
When clean, surfaces should feel smooth, not glossy-polished; excessive polishing can change clearances. A final carb cleaner or contact cleaner spray and wipe removes residue, ensuring consistent throttle response and top-end performance on your sled or bike.

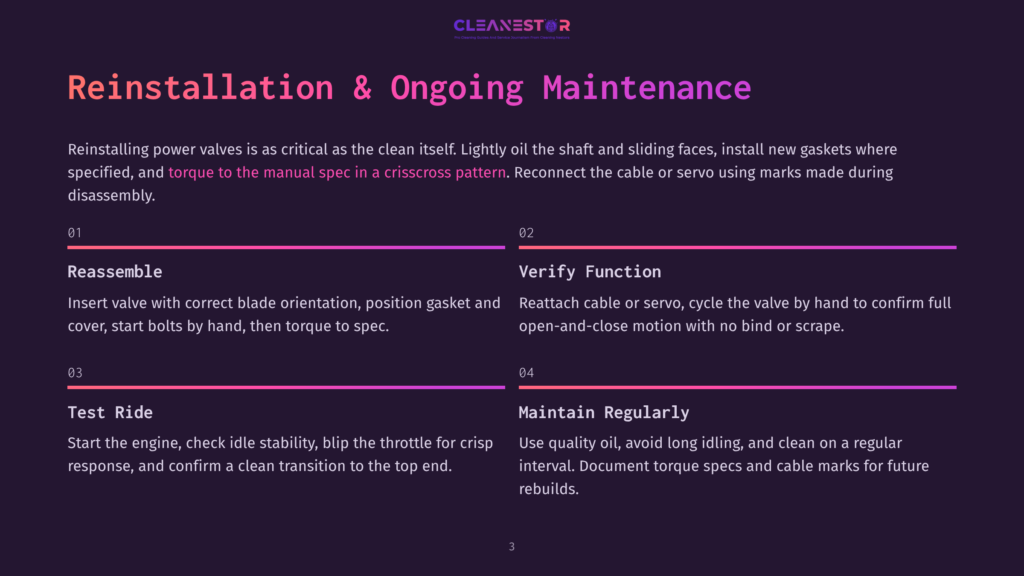

Reinstalling the Power Valves
Reinstalling power valves is as critical as the clean itself. Lay out each bolt, blade, and cable assembly exactly as removed to preserve alignment with the cylinder and exhaust. Lightly oil the shaft and sliding faces so the valve can open and close without sticking.
Install new gaskets where specified and torque to the manual spec. Reconnect the cable or servo linkage with marks made during disassembly to maintain baseline throttle response. Before finalizing, cycle the valve by hand to confirm no bind or scrape in tight spots.
Step-by-Step Reinstallation Process
Follow these steps to service and reassemble the valve assembly, moving from cleaning to final verification:
- Wipe all mating surfaces clean and dry.
- Lightly oil the PV shaft and slide contact points; avoid excess oil that attracts carbon.
- Insert the valve into the housing, ensuring proper orientation of the blade and slot.
- Position the gasket and cover, then start each bolt by hand to prevent cross-threading.
- Torque in a crisscross pattern to spec.
- Reattach the cable or servo and set free play as marked during removal.
- Spray contact cleaner on the area, wipe, and inspect for pinched seals.
- Rotate or actuate the valve to verify full open-and-close motion.
- Reinstall plugs and guards before the first test ride.
Ensuring Proper Functionality
Cycle the valve by hand and verify full travel, correct cable tension, and clean reassembly. Start the 2-stroke engine and watch idle stability, then blip the throttle to feel crisp response without bog. A brief warm-up ride should show a clean transition to the top end. If the valve feels stiff or the sled or bike hesitates, recheck alignment, bolt torque, and slide clearance for a potential jam.
Final Tips for Maintenance
Use quality oil, avoid long idling, and clean on a regular interval. After muddy or powder-heavy rides, a quick external spray and wipe can prevent grime from migrating under the cover. Never use a wire wheel or aggressive brake cleaner; rely on contact cleaner, carb cleaner, and a safe soak instead.
Document torque specs, cable marks, and any modifications for future rebuilds. If performance drops between services, inspect without removing first, then disassemble if needed. Consistent maintenance prevents sticky valves and preserves reliable throttle response.
