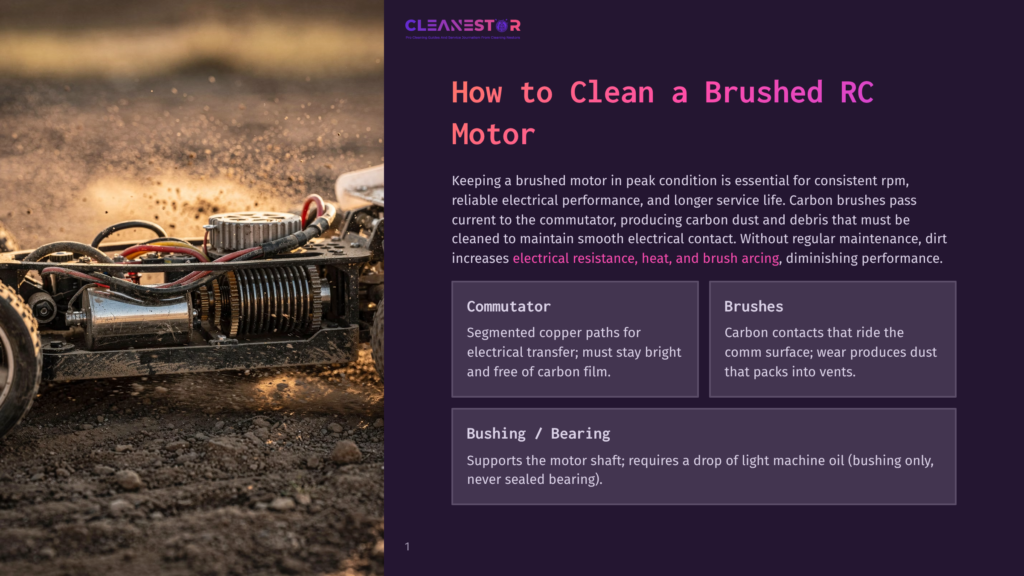

Keeping a brushed motor in peak condition is essential for consistent rpm, reliable electrical performance, and longer service life in any RC car or ready-to-run vehicle. This guide explains a practical method of cleaning and the maintenance sequence RC enthusiasts use to clean the motor safely, flush away dirt, and let it dry before reassembly.
We will outline how to remove the motor from the vehicle, what cleaner or spray to use, when to blow out dust with compressed air, and when you need to oil bushings or a bearing with a drop of light machine oil. With these tips and tricks, an RC hobby enthusiast can protect the commutator, brushes, and electronics, avoiding mud and carbon buildup that can slow a race or damage a new motor.
Understanding the Brushed Motor
A brushed motor is a simple electric motor favored in RC motors and slot cars for its robust torque and easy serviceability. Inside, carbon brushes pass electrical current to the commutator segments on the motor shaft, energizing the armature to spin.
Because brushes wear and produce carbon dust, the motor accumulates dirt that must be cleaned to maintain smooth rpm and efficient electrical contact. Knowing the method of cleaning, when to flush with motor spray or electrical contact cleaner, and how to tap away debris helps reduce arcing on the comm and preserve performance.
Proper maintenance ensures the motor runs cooler and stronger when it’s back together, keeping your RC car or vehicle reliable after each run.
Components of a Brushed Motor
Key components include the motor shaft, commutator, brush assemblies, armature, and endbell with either a bushing or bearing to support rotation. The comm provides segmented copper paths for electrical transfer, while each brush rides the comm surface to feed current. A pinion gear mounts on the motor shaft to drive the drivetrain in an RC car.
Over time, carbon from the brush, fine dust, and mud can pack into ventilation slots and around the bushing or bearing, impeding spin. Understanding where dirt collects guides how to clean: remove the motor, unplug leads, spray cleaner through ports, blow with compressed air, and inspect the comm and bushing.
After cleaning out the motor, you may need to oil the bushing with a drop of light machine oil.
How Brushed Motors Work
When you plug power into an RC system, current flows through the brush to the commutator, energizing armature windings in sequence so magnetic fields push against the stator and spin the motor shaft. This cycle repeats rapidly, generating rpm and torque. However, the sliding brush contact creates friction and carbon residue, which builds on the comm and inside the can.
If not cleaned, this film increases electrical resistance, heat, and brush arcing, diminishing performance. That is why RC enthusiasts periodically clean the motor: use motor spray, electric motor cleaner, or electrical contact cleaner to flush contaminants, then blow out with compressed air and let it dry. After reassembly, run the motor briefly to verify smoothness before reinstalling the pinion gear.
Importance of Cleaning
Regular maintenance prevents dirt and carbon from scoring the commutator, wearing the brush prematurely, and stressing electronics. Cleaning out the motor restores crisp electrical contact, stabilizes rpm, and protects bushings or bearings from abrasive grit. It also reduces the chance that mud or dust will cause a short during a race.
While some discuss a break-in or even running the motor in the water using distilled or tap water, a safer approach is to flush with spray cleaner labeled safe for electronics, then let it dry completely. After you remove the motor, spray cleaner through the openings, spin the shaft, blow debris out, tap the can lightly, and add a drop of light machine oil if you need to oil a bushing.
With these tips and tricks, your new motor or seasoned unit stays ready for the next run.

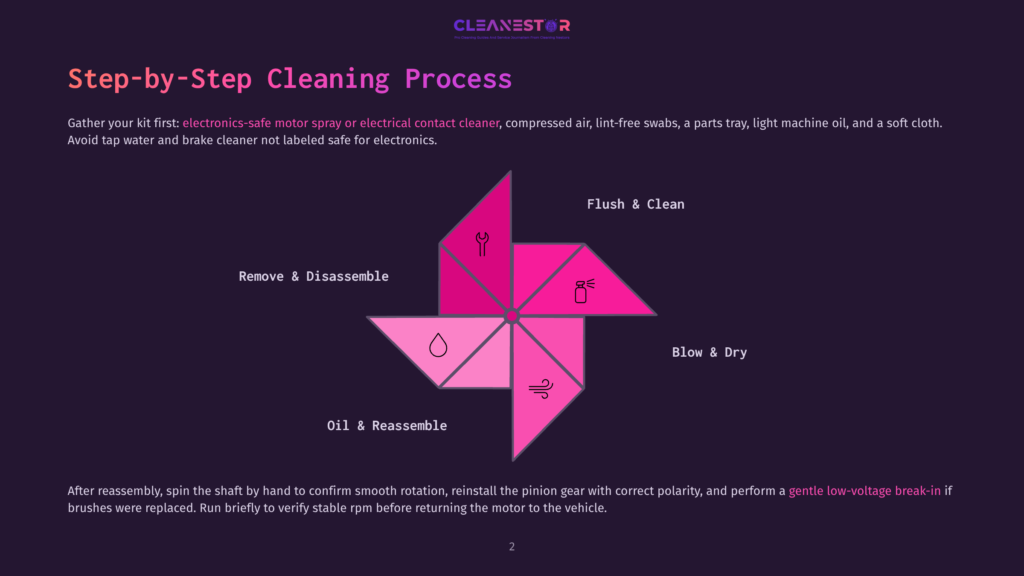

Step-by-Step Process to Clean Your RC Motor
This step-by-step method of cleaning a brushed motor focuses on safe handling, effective flushing, and careful reassembly so RC enthusiasts can clean the motor without harming electronics. You will gather the right spray cleaner, remove the motor from the vehicle, disassemble key parts, and clean the brush and commutator before you let it dry and run the motor briefly.
The process applies to RC motors in an RC car, slot cars, or a ready-to-run vehicle, and it emphasizes minimizing dirt and carbon buildup that robs rpm. Following these tips and tricks, an enthusiast can protect a bushing or bearing, avoid mud and dust intrusion, and restore smooth electrical contact on the comm for a reliable race day.
Gathering the Necessary Tools
Before you take the motor out, assemble a cleaning kit and prepare your workspace. Good preparation reduces mistakes and speeds maintenance.
| Item | Purpose/Notes |
|---|---|
| Motor spray or electric motor cleaner/contact cleaner is safe for electronics | For flushing and cleaning components |
| Compressed air | Provides a targeted blow to remove debris |
| Lint-free swabs and a small brush | For detailed cleaning of tight areas |
| Tray for parts | Keeps fasteners and small pieces organized |
| Drop of light machine oil | To lubricate a bushing if oiling is needed |
| Soft cloth | Catches runoff when you flush |
| Marker | Note the alignment of the endbell |
| Puller for the pinion gear; hex drivers | Helpful for drivetrain work and motor removal |
| Avoid tap water or a motor-in-water method | Use only if you understand risks; distilled water is safer but still needs thorough drying |
Disassembling the Motor
Unplug the leads, remove the motor from the vehicle, and take the motor to a clean bench.
Mark the endbell orientation so timing returns correctly when the motor is back together. Pull the pinion gear from the motor shaft, then loosen the endbell screws carefully. Lift the endbell straight off to protect each brush and spring. Note whether your brushed motor uses a bushing or a bearing in the endbell, and can; this guides lubrication later.
Tap the can gently to release loose dust and carbon, then withdraw the armature to expose the commutator. Keep parts organized to avoid mixing shims and washers. During disassembly, avoid scratching the comm and do not bend springs. A methodical approach ensures a new motor feel after reassembly and protects electrical performance.
Cleaning the Brushes and Commutator
Begin by cleaning out the motor can and endbell:Â flush with motor spray or electrical contact cleaner, letting the solvent carry away dirt, mud, and carbon. Use short bursts and a gentle tap to dislodge debris, then blow with compressed air to evacuate dust. Clean the brush faces with spray cleaner and a lint-free swab; do not reshape them unless they are badly glazed.
On the commutator, apply electric motor cleaner and wipe in the direction of rotation to remove residue. If the comm is heavily scored, consider a light skim on a comm lathe; otherwise, continue flushing until the copper looks bright. Spin the motor shaft in your fingers to ensure the armature turns freely in the bearing or bushing, then let it dry thoroughly before oiling and reassembly.
| Component/Area | Action |
|---|---|
| Motor can and endbell | Flush with motor spray or electrical contact cleaner; use short bursts and gentle taps; blow with compressed air |
| Brush faces | Clean with spray cleaner and a lint-free swab; do not reshape unless badly glazed |
| Commutator | Apply electric motor cleaner and wipe in the direction of rotation; skim on a comm lathe if heavily scored; flush until copper is bright |
| Shaft/Armature and reassembly | Spin the shaft to check free movement in the bearing or bushing; let it dry thoroughly before oiling and reassembly |
Reassembling the Motor
Once all parts are dry, add a tiny drop of light machine oil to each bushing if you need to oil it; skip oil on a sealed bearing. Reinsert the armature carefully, aligning shims, and ensure the commutator sits true. Seat each brush on the comm, confirm springs apply even pressure, and align the endbell to your marks before tightening screws evenly.
Spin the shaft by hand to feel for smooth rotation, then give a final blow of compressed air to clear any remaining spray. Reinstall the pinion gear and plug leads with correct polarity. Perform a gentle break-in at low voltage if brushes were replaced. Finally, reinstall the RC car and verify stable rpm and clean electrical response during a short test run.

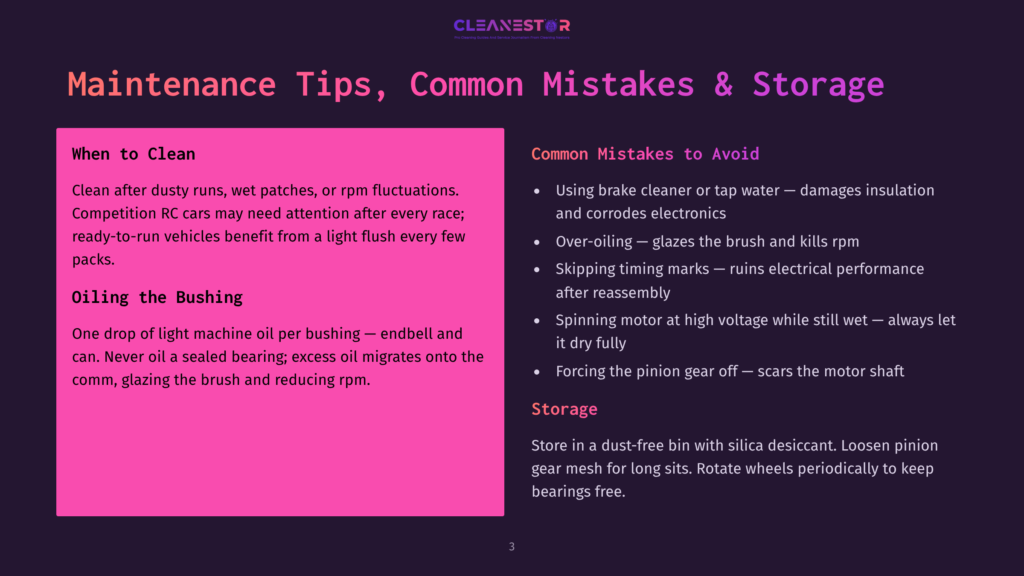

Maintenance Tips for Longevity
Longevity in a brushed motor depends on consistent maintenance that prevents dirt, carbon, and mud from grinding away at the commutator, bushing, or bearing. RC enthusiasts should adopt a method of cleaning that balances frequency with gentle technique: remove the motor, flush with electrical cleaner, blow with compressed air, and dry fully before reassembly.
Keep a routine to clean the motor after particularly dusty track days or a race, and inspect the brush faces and comm for arcing. A tiny drop of light machine oil on a bushing, never on a sealed bearing, reduces wear. Record rpm changes and temperatures to spot issues early. With these tips and tricks, RC motors in an RC car or slot cars stay reliable.
When to Clean Your Motor
Clean the brushed motor anytime performance drops, rpm fluctuates, or you see heavy dust around the endbell.
After running on loose dirt or through wet patches that fling mud, take the motor out and inspect the commutator and brush for carbon buildup. A ready-to-run vehicle that sees frequent use benefits from a light flush every few packs, while a competition RC car may need attention after each race.
If you ever considered a motor in the water method, remember that tap water leaves minerals; distilled water is safer but still risky for electronics, so use an electrical contact cleaner instead. Schedule deeper maintenance after break-in or when a new motor shows initial seating debris, and always let it dry completely.
How to Properly Oil the Motor
Proper lubrication targets only the bushing surfaces that support the motor shaft. After cleaning out the motor, flush residue from the bushing area with electric motor cleaner, blow gently with compressed air, and let it dry. Place a single drop of light machine oil at each bushing—one at the endbell and one at the can—allowing capillary action to wick into the pore structure.
Do not oil a sealed bearing; excess oil attracts dust and can migrate onto the comm, contaminating the brush contact and lowering electrical efficiency. Spin the shaft to distribute oil, then run the motor briefly at low voltage to confirm smoothness. If you need to oil again soon, you likely over-flushed or are masking wear; address play or heat rather than adding more oil.
Common Mistakes to Avoid
Avoid brake cleaner, not labeled safe for electronics; harsh solvents can damage insulation. Do not use tap water for cleaning, and skip a motor in the water break-in unless you fully understand the risks; minerals and moisture can corrode and damage electronics. Never over-oil—excess lube flings onto the commutator, glazing the brush and reducing rpm.
Don’t forget to mark timing before disassembly, and don’t bend brush springs while removing the endbell. Resist spinning the motor with high voltage immediately after a flush; always let it dry. Avoid prying the pinion gear with force that scars the motor shaft. Finally, don’t neglect to blow out dust with compressed air and tap the can lightly—residual grit accelerates wear and dulls performance.
| Action to Avoid/Do | Reason/Outcome |
|---|---|
| Avoid brake cleaner not labeled safe for electronics | Harsh solvents can damage insulation |
| Do not use tap water or water break-in without a full understanding | Minerals and moisture can corrode and damage electronics |
| Never over-oil | Excess lube can glaze the brush and reduce rpm |
| Mark timing before disassembly; don’t bend brush springs | Preserves correct timing and avoids spring damage |
| Let the motor dry after a flush | Prevents damage from spinning under high voltage while wet |
| Avoid prying the pinion gear with force | Prevents scarring of the motor shaft |
| Blow out dust with compressed air and tap the can lightly | Removes grit that accelerates wear and dulls performance |
Additional Tips and Tricks
Beyond the core method of cleaning, small adjustments in routine maintenance can keep a brushed motor consistent between every race and backyard session.
Build a habit loop: remove the motor after dusty runs, flush with electrical cleaner, blow out dust, tap the can, and let it dry fully. Keep a dedicated tray so carbon and dirt do not contaminate other RC motors or electronics. Label timing marks before you take the motor apart, and log rpm, temperatures, and runtime to spot patterns.
Replace a worn brush before it arcs and scars the commutator. Finally, check the motor shaft and pinion gear mesh on your RC car; poor alignment adds heat that cleaning cannot fix.
Enhancing Motor Performance
To enhance performance, focus on friction, electrical contact, and cooling. After cleaning out the motor, confirm smooth spin of the motor shaft and endplay shim stack, then add a minimal drop of light machine oil to each bushing if you need to oil it; skip oil on a sealed bearing. Seat new brush sets with a gentle break-in at low voltage to conform to the comm surface.
Use only plastic-safe spray cleaner or electric motor cleaner—harsh brake cleaner not labeled safe for electronics can swell insulators. Improve airflow by clearing vent slots and keeping mud away from the endbell. Always flush, blow, and let it dry before you run the motor. Recheck pinion gear mesh and plug polarity; small alignment errors waste rpm and heat the comm.
Storage and Care for Your RC Vehicle
Smart storage prevents the dirt you just removed from reentering the brushed motor. After you take the motor from the vehicle for maintenance, bag the rc car and electronics in a dust-free bin, keeping silica desiccant nearby to wick moisture. Never store a wet motor; flush with motor spray or electrical contact cleaner, blow with compressed air, and let it dry thoroughly.
Avoid tap water or any motor in the water practice; if rinsing parts is unavoidable, only use distilled water on non-electrical items and dry completely. Cap battery leads and plug ports to stop carbon grit migration. Loosen the pinion gear mesh if the vehicle will sit, reducing flat spots and bushing load. Periodically rotate wheels by hand to keep bearings free and the drivetrain ready to run.
Resources for Further Learning
RC enthusiasts can deepen their method of cleaning and tuning by following manufacturer service sheets for their specific brushed motor and endbell design. Reputable RC hobby forums archive tips and tricks on comm care, brush selection, and safe use of spray cleaner versus electric motor cleaner.
Look for videos that demonstrate how to remove the motor, mark timing, flush and blow out dust, and reassemble the motor back together before you run the motor. Race team setup guides often share rpm logs and maintenance intervals for RC motors in slot cars and every RC car class.
Finally, consult safety datasheets for electrical contact cleaner and motor spray to ensure compatibility with electronics and plastics in your ready-to-run vehicle.
