Installing a split air conditioner is a critical process that impacts comfort, energy efficiency, and safety. This task should be entrusted to qualified professionals who can guarantee a proper setup. The installation involves choosing the right location, securing the indoor and outdoor units, and connecting refrigerant lines, electrical wiring, and drainage systems.

A well-installed split AC not only cools your space effectively but also operates quietly and conserves energy. It’s essential to follow a meticulous installation procedure to avoid common issues such as refrigerant leaks, poor airflow, or electrical faults. Homeowners looking to invest in a split air conditioning system need to understand the importance of a correct installation to ensure optimal performance and avoid unnecessary repairs or energy waste.

Split Air Conditioner Installation

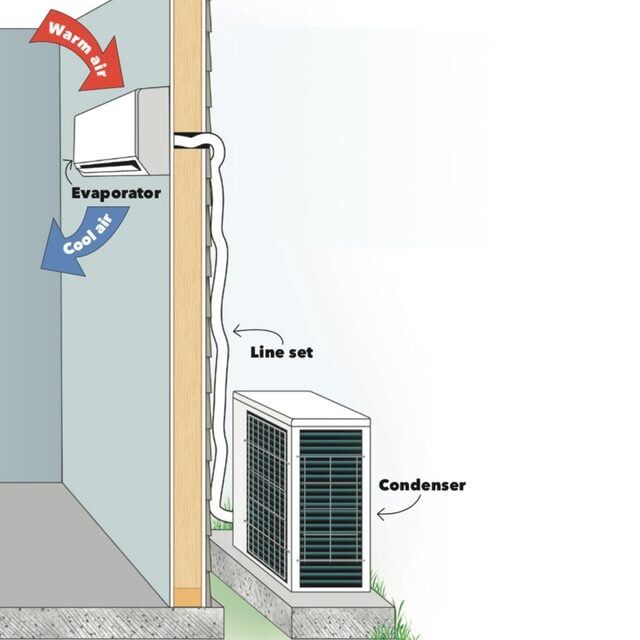

Credit: www.familyhandyman.com

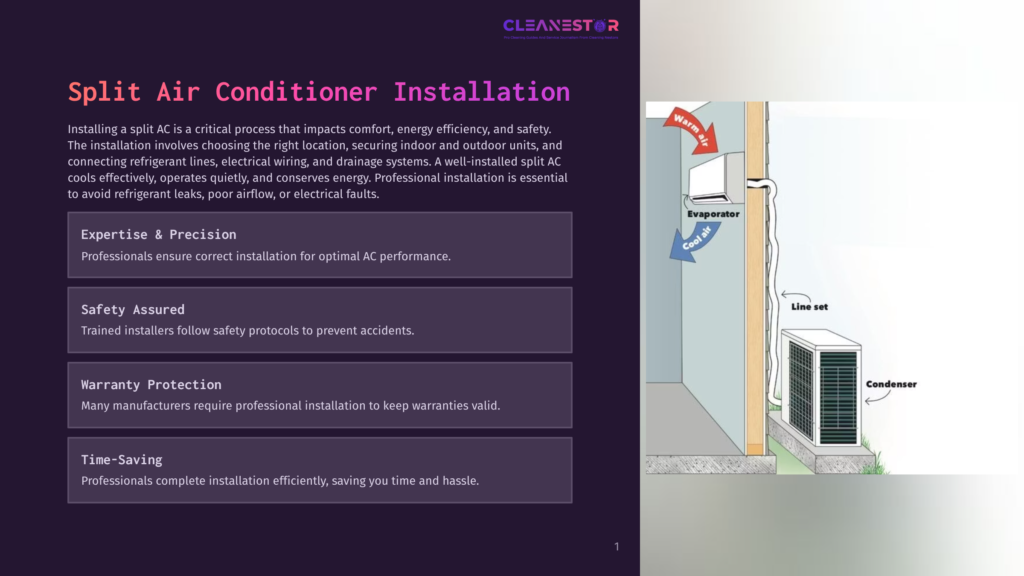

Introduction To Split Ac Installation

Welcome to the world of comfort with split air conditioners! Split AC systems offer efficient cooling with the added advantage of quiet operation and aesthetic appeal. The installation of a split AC is a critical step that can impact its performance and lifespan. This guide provides insights into the installation process, highlighting the importance of professional services, and the tools and materials necessary for a seamless setup.

Benefits Of Professional Installation

Expertise and Precision: Professional technicians bring experience and skills. They ensure correct installation, which is crucial for optimal AC performance.

Safety Assured: Handling electrical components can be dangerous. Trained installers follow safety protocols to prevent accidents and damage.

Warranty Protection: Many manufacturers require professional installation to keep warranties valid. This protects your investment.

Time-Saving: Professionals complete the installation efficiently, saving you time and hassle.

Tools And Materials Required

Installing a split AC requires specific tools and materials. Here’s a list to get started:

  • Drill: For making holes in the wall to mount the indoor unit
  • Screwdrivers: To secure components in place
  • Level: Ensures the indoor unit is perfectly horizontal
  • Pipe Cutter: For cutting the refrigerant lines to length
  • Wrenches: To tighten bolts and nuts
  • Measuring Tape: For precise measurements
  • Hammer: Helps in mounting brackets
  • Electrical Tape: For insulating connections

Additional materials include mounting brackets, copper pipes, electrical cables, and a vacuum pump. Remember, incorrect or incomplete tools can lead to improper installation. Thus, trusting a professional with the right tools is often the best choice.

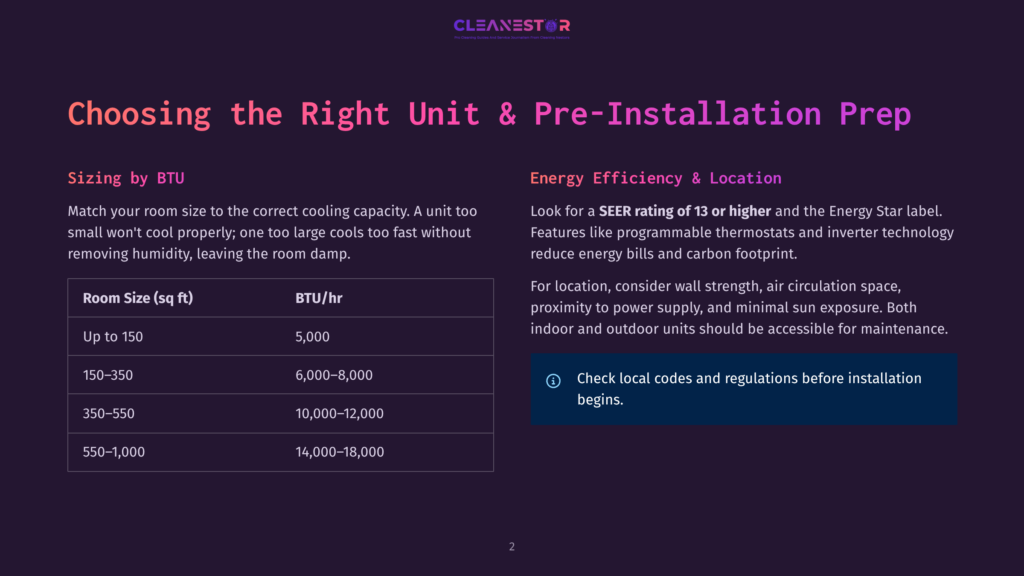

Choosing The Right Split Ac Unit

Choosing the right split AC unit is crucial for comfort and efficiency. The perfect model fits your space like a glove. Follow these steps to find your match.

Assessing Room Size And Cooling Capacity

Begin with your room’s size. It dictates the AC’s power. Measure your space. Use these numbers to find the BTU (British Thermal Unit) rating needed. This rating shows how much heat the AC can remove per hour. A larger room requires a higher BTU rating.

Room Size (sq ft) Cooling Capacity (BTU/hr)
Up to 150 5,000
150 to 250 6,000
250 to 350 8,000
350 to 450 10,000
450 to 550 12,000
550 to 700 14,000
700 to 1000 18,000

Choose a unit with the right BTU rating. A unit too small won’t cool properly. One too big cools too quickly without removing humidity, leaving the room damp and clammy.

Energy Efficiency Considerations

Energy efficiency saves money and the planet. Look for the SEER (Seasonal Energy Efficiency Ratio) rating. A higher SEER means better efficiency.

  • Minimum SEER Rating: Aim for a SEER of 13 or more. It’s standard for energy savings.
  • Energy Star Label: Units with this label exceed federal standards for efficiency.

Check for features like programmable thermostats and inverter technology. They fine-tune cooling and save energy.

Remember, an efficient AC reduces carbon footprint and utility bills. Balance initial cost with long-term savings.

Pre-installation Preparations

Proper preparations are crucial for a successful split air conditioner installation. This process ensures your AC unit operates efficiently and safely. Let’s dive into the essential steps you should take before the actual installation begins.

Selecting The Optimal Location

Choosing the right spot for your split AC is vital. Factors to consider include:

  • Wall strength to hold the unit
  • Space for air circulation
  • Proximity to power supply
  • Minimal sun exposure and heat sources

Indoor and outdoor units should be placed away from direct sunlight. They should also be accessible for maintenance.

Safety Measures And Compliance

Safety is a top priority during installation. Follow these guidelines:

  1. Check local codes and regulations
  2. Use proper tools and protective gear
  3. Ensure electrical connections meet standards
  4. Secure units firmly to prevent accidents

Professional installers can help ensure safety and compliance. They understand the importance of following these steps.

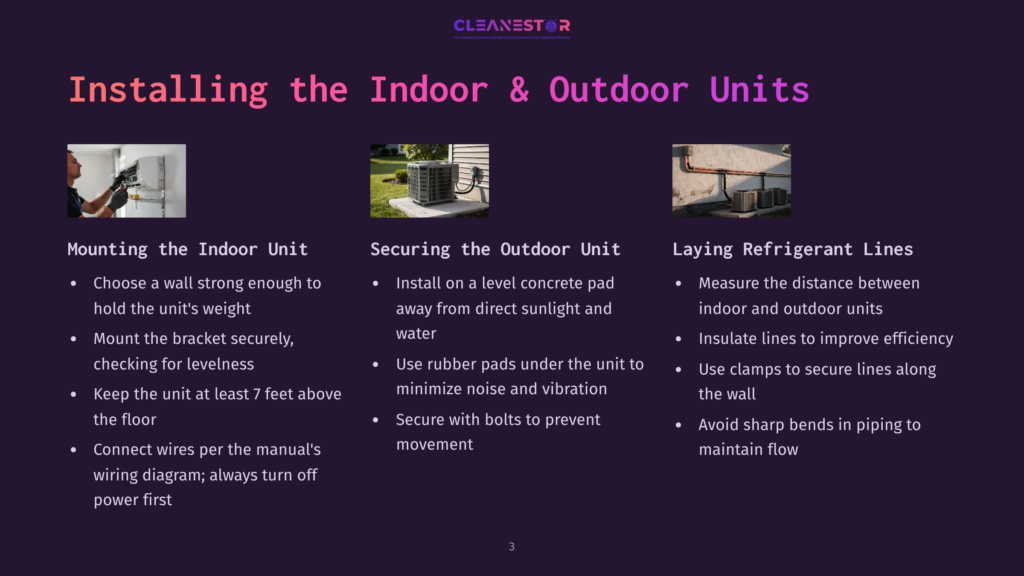

Installing The Indoor Unit

Mounting the indoor unit of a split air conditioner is a precise job. It must be done with care to ensure efficient cooling. The right location and stable mounting are key to the unit’s performance. Follow these steps for a successful installation.

Mounting The Indoor Unit

  • Choose a wall strong enough to hold the unit’s weight.
  • Ensure the space has no obstructions and allows proper air flow.
  • Mount the bracket securely, checking for levelness.
  • Lift the indoor unit onto the bracket.

Tip: Keep the unit at least 7 feet above the floor for the best cooling.

Connecting Electrical Wires

Proper electrical connections are crucial for safety and performance. Always turn off the power before starting.

  1. Open the indoor unit’s front panel.
  2. Locate the electrical connection panel.
  3. Connect wires according to the manual’s wiring diagram.
  4. Use the correct wire gauge for your model.
  5. Secure connections with electrical tape.
  6. Close the panel and restore power.

Note: For safety, consider hiring a professional electrician.

Installing The Outdoor Unit

Installing the Outdoor Unit of a split air conditioner is a crucial step. This process ensures your system operates efficiently and safely. Proper installation affects performance and longevity.

Securing The Outdoor Unit

To start, select a stable and flat surface. This area should support the unit’s weight and reduce vibration. Follow these steps:

  • Choose a location away from direct sunlight and water exposure.
  • Install a concrete pad to place the unit on. This pad should be level.
  • Use rubber pads under the unit to minimize noise.
  • Secure the unit with bolts to the pad to prevent movement.

Laying The Refrigerant Lines

The refrigerant lines connect the outdoor unit to the indoor unit. Proper installation is key to prevent leaks. Here’s how to lay these lines:

  1. Measure the distance between the indoor and outdoor units.
  2. Ensure the lines are insulated to improve efficiency.
  3. Use clamps to secure the lines along the wall.
  4. Avoid sharp bends in the piping to maintain flow.
Split Air Conditioner Installation

Credit: www.forbes.com

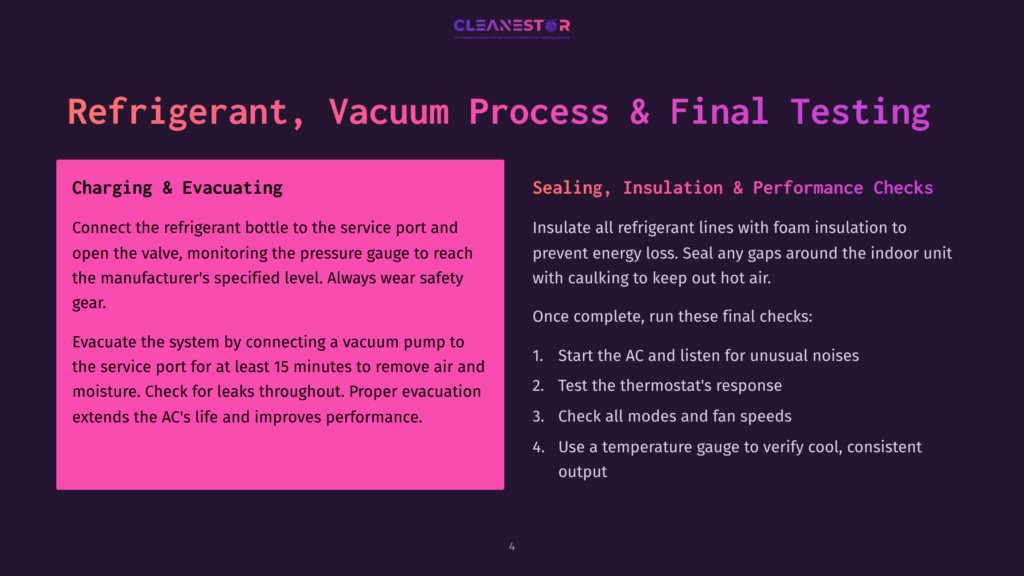

Refrigerant And Vacuum Process

The ‘Refrigerant and Vacuum Process’ is a critical step in split air conditioner installation. It ensures your AC runs efficiently and safely. This process involves two main tasks: charging the system with refrigerant and evacuating the air and moisture. Both steps require precision and expertise.

Charging The Ac With Refrigerant

Correct refrigerant levels are key for optimal air conditioner performance. Follow these steps for charging:

  1. Locate the service valve on the outdoor unit.
  2. Connect the refrigerant bottle to the service port.
  3. Open the valve to allow refrigerant into the system.
  4. Monitor the pressure gauge to reach the manufacturer’s specified level.

Always wear safety gear and follow manufacturer guidelines during this process.

Evacuating The System

Evacuating the system removes air and moisture. It prevents damage and maintains efficiency. The steps include:

  • Connect the vacuum pump to the service port.
  • Turn on the pump and evacuate the system for at least 15 minutes.
  • Check for leaks during the process.
  • Close the valve and disconnect the pump once complete.

Proper evacuation extends the AC’s life and improves performance.

Final Steps And Testing

After installing a split air conditioner, a few critical steps ensure it runs smoothly. Proper sealing, insulation, and thorough performance checks guarantee efficiency and longevity. Let’s dive into these essential final touches.

Sealing And Insulation

Good insulation is key for an air conditioner. It keeps the cool air in. First, check all the connecting points. Make sure the refrigerant lines are well insulated. Use foam insulation where needed. This prevents energy loss. The outdoor unit should also be on a level surface. Make sure there are no gaps around the indoor unit. Seal them with caulking if needed. This keeps out hot air and bugs.

  • Check connecting points for gaps
  • Insulate refrigerant lines properly
  • Ensure outdoor unit is level
  • Seal gaps around the indoor unit

Functionality And Performance Checks

Next, test the unit’s functionality. Turn on the air conditioner. Listen for unusual noises. Unusual noises can mean a problem. Check the thermostat. It should respond quickly. Make sure all functions work. This includes different modes and fan speeds. Use a temperature gauge. It checks the output. The air should be cool and consistent. A professional may use more tools for a detailed check.

  1. Start the air conditioner
  2. Listen for any strange sounds
  3. Test the thermostat’s response
  4. Check all modes and fan speeds
  5. Use a temperature gauge on the output

These final steps are crucial. They ensure your split air conditioner works great. They help avoid future problems. Always double-check your work. Enjoy a cool and comfortable space all summer long!

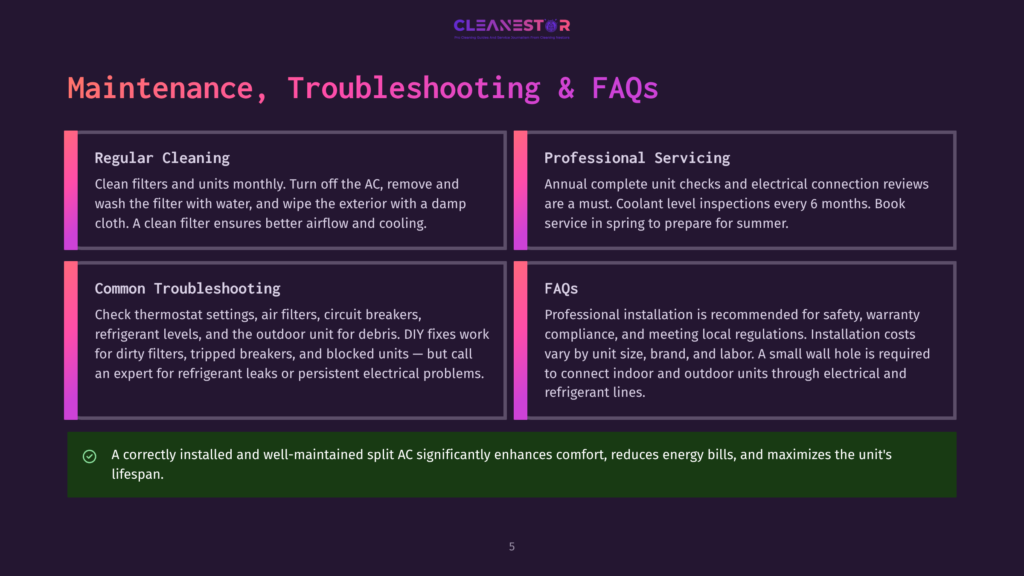

Maintenance Tips For Split Ac

Keeping your split AC in top shape is crucial. Here are some expert tips to maintain your unit effectively.

Regular Cleaning Schedule

Clean filters and units monthly. Dust and dirt can reduce efficiency. A clean filter ensures better air flow and cooling.

  • Turn off the AC before cleaning.
  • Remove the filter gently.
  • Wash it with water and let it dry.
  • Wipe the exterior with a soft, damp cloth.

Professional Servicing Recommendations

Annual checks are a must. A professional technician can handle complex parts and ensure everything functions smoothly.

Service Frequency
Complete Unit Check Once a Year
Coolant Level Inspection Every 6 Months
Electrical Connections Review Once a Year

Book a service during spring. This prepares your AC for summer.

Troubleshooting Common Issues

Even the best split air conditioners can hit a snag now and then. Knowing how to identify common problems and decide whether you can fix them yourself or need professional help saves time and money. Let’s dive into the world of split AC troubleshooting.

Identifying Common Problems

When your split AC isn’t cooling properly or making strange noises, it’s time to investigate. Start by checking:

  • Thermostat settings – Ensure it’s set to cool mode.
  • Air filters – A clogged filter restricts airflow.
  • Circuit breakers – Tripped breakers cut power to the unit.
  • Refrigerant levels – Low levels indicate a leak.
  • Outdoor unit – Debris can block the fan.

Diy Fixes Vs. Calling The Experts

Some issues have simple fixes you can do yourself:

Problem DIY Fix Call an Expert
Dirty Filters Clean or replace the filter. If problem persists.
Tripped Breaker Reset the breaker switch. If it trips often.
Blocked Outdoor Unit Clear debris carefully. If blockage is severe.

However, call an expert for issues like refrigerant leaks, electrical problems, or if DIY fixes don’t work. They have the right tools and training to handle complex repairs safely.

Split Air Conditioner Installation

Credit: www.homedepot.com

Frequently Asked Questions

Can I Install A Split Ac Unit Myself?

Installing a split AC unit requires technical expertise and understanding of electrical systems. It’s recommended to hire a professional for safe and proper installation, ensuring warranty and local regulations are met.

Are Split Systems Expensive To Install?

Split system installation costs vary, typically influenced by unit size, brand, and labor. It’s a mid-range investment in home comfort, offering long-term energy savings.

Is It Easy To Install A Split System Air Conditioner?

Installing a split system air conditioner requires technical knowledge and skill. Professional installation is recommended to ensure safety and proper functioning.

Does Split Ac Need Hole In Wall?

Yes, installing a split AC typically requires a small hole in the wall to connect indoor and outdoor units through electrical and refrigerant lines.


Installing a split air conditioner can significantly enhance your living or work space. By choosing the right model and ensuring proper installation, you optimize comfort and efficiency. Remember, professional help is key to maximizing the unit’s performance and lifespan. Ready to enjoy a cooler environment?
