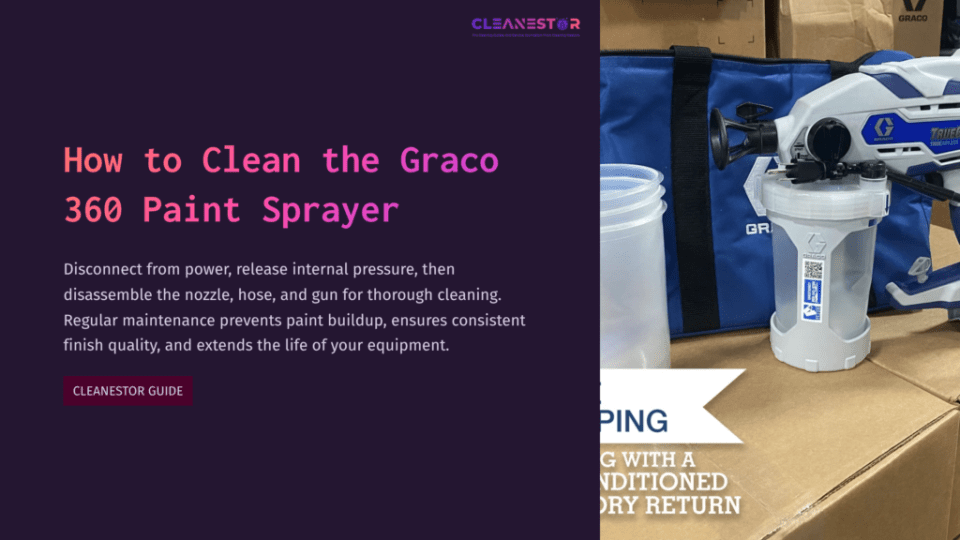

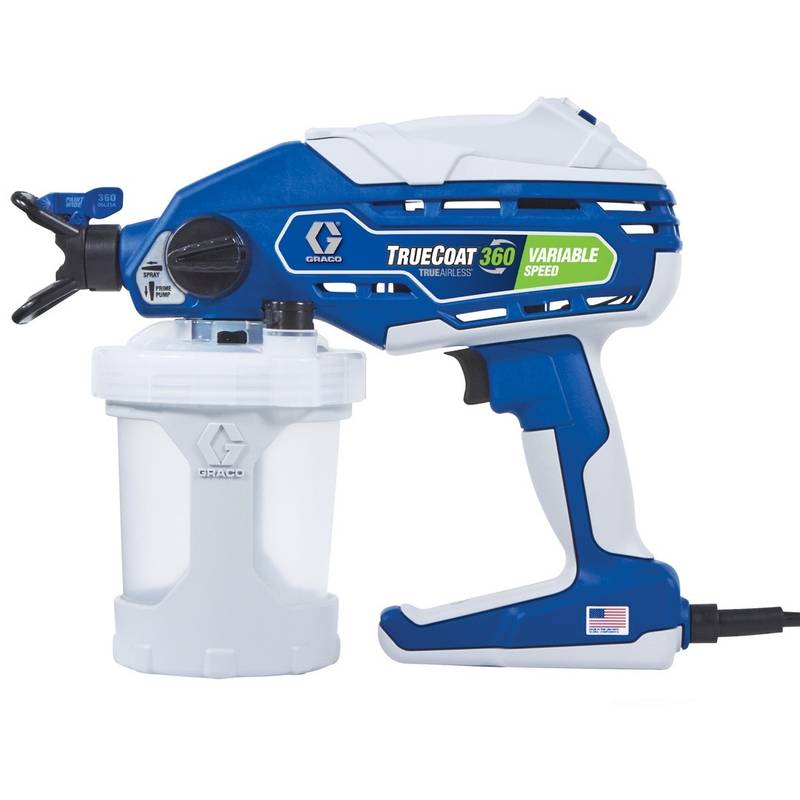

How to Clean the Graco 360 Paint Sprayer

To clean the Graco 360 paint sprayer, firstly, disconnect it from the power source and release any internal pressure. Next, take apart the nozzle, hose, and gun for thorough cleaning.

Maintaining your Graco 360 paint sprayer is crucial for its longevity and performance. Regular cleaning prevents paint buildup and potential clogs that can hinder your spraying tasks. A clean paint sprayer ensures consistent finish quality and saves you from the hassle of unexpected malfunctions.

As part of regular maintenance, dedicated DIY enthusiasts and professional painters alike should familiarize themselves with the disassembly and cleaning process. This routine not only extends the life of your equipment but also keeps your work efficient and your results professional. With the right approach and a bit of care, your Graco 360 will be ready for its next use, performing as if it were brand new. Keeping this tool in top condition is a simple yet essential step that falls squarely in the realm of best practices for any paint project.

Introduction To Graco 360 Paint Sprayer Maintenance

Maintaining your Graco 360 Paint Sprayer is the key to its longevity and performance. Regular cleaning after every use prevents clogs and ensures a smooth operation. Crafting a maintenance routine will save you time and money.

Understanding The Importance Of Regular Cleaning

Cleaning your Graco 360 Paint Sprayer is crucial for optimal functionality. Debris and paint can harden, leading to performance issues. A clean sprayer means consistent spray patterns and extended equipment life. Do not overlook this essential step.

Overview Of Graco 360 Paint Sprayer Features Relevant To Cleaning

The Graco 360 offers features that make it easier to clean:

  • FlexLiner Paint Bags: Disposable bags make clean-up quick.
  • Reversible Spray Tip: Allows for easy cleaning of clogs.
  • Durable Stainless-Steel Pistons: Simplifies the removal of paint residue.

Each feature is designed to streamline the cleaning process and keep your sprayer in top condition.

How To Clean The Graco 360 Paint Sprayer


Preparation For Cleaning

Ensuring your Graco 360 Paint Sprayer runs smoothly for your next project starts with proper cleaning. Let’s get everything ready for a thorough clean-up to extend the life of your sprayer.

Assembling Cleaning Supplies And Tools Needed

Begin by gathering all necessary items:

  • Bucket of clean water
  • Graco pump armor or a suitable substitute
  • Soft brushes and sponges
  • Waste pail for disposing of paint residues
  • Detergent if needed for water-based paints
  • Lint-free rags for drying parts

Safety Measures And Protective Equipment

Safety comes first:

  • Wear gloves to protect your skin
  • Goggles guard against splashes
  • Respirator masks prevent inhalation of fumes
  • Keep your workspace well-ventilated

Relieving Pressure And Disassembling The Sprayer Components

Before cleaning, always:

  1. Turn power off
  2. Unplug the sprayer
  3. Release the pressure valve
  4. Remove the spray tip and guard
  5. Disassemble hose and pump assembly carefully

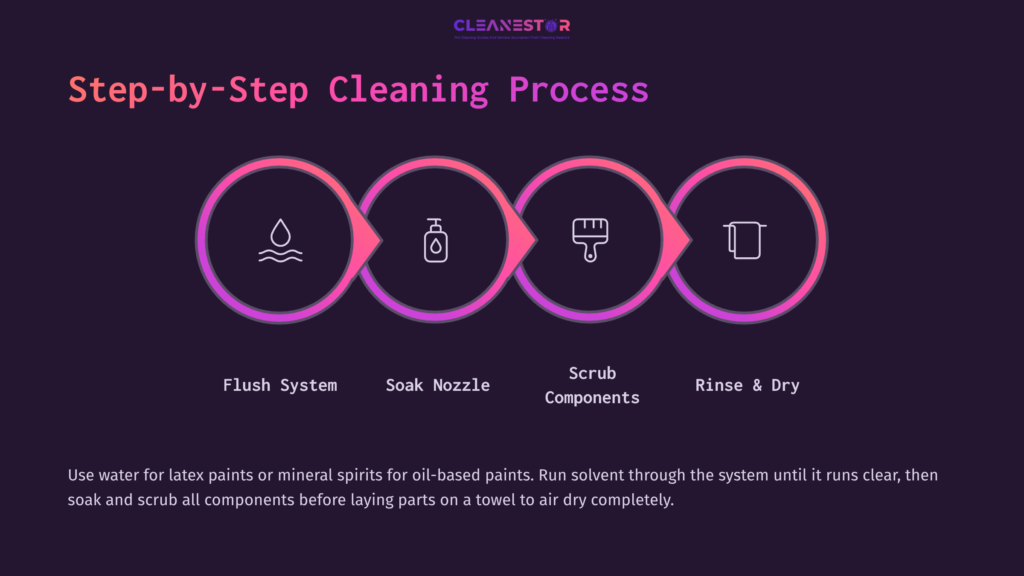

Step-by-step Cleaning Process

Cleaning your Graco 360 Paint Sprayer properly can extend its life and maintain its performance. Follow these simple steps to ensure thorough cleaning and care for your paint sprayer.

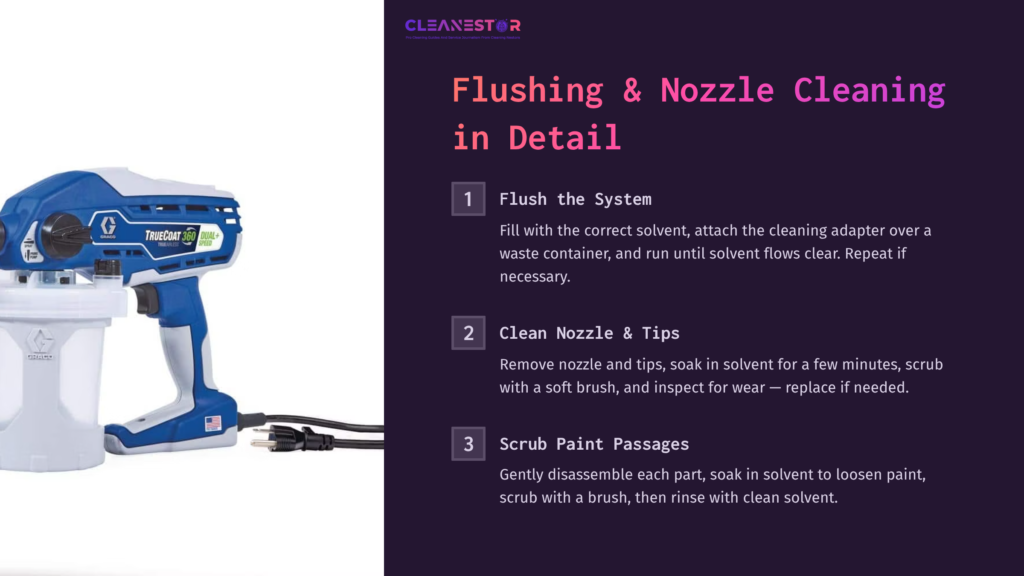

Flushing The System With The Appropriate Solvent

First, identify the correct solvent for the paint you used, either water for latex paints or mineral spirits for oil-based paints. Follow the steps below to flush out the system:

  1. Turn off and unplug the sprayer.
  2. Fill the sprayer with the chosen solvent.
  3. Attach the cleaning adapter and point it into a waste container.
  4. Turn the sprayer on and allow it to run until the solvent runs clear.
  5. Repeat the process if necessary.

Detailed Cleaning Of The Nozzle And Tips

Next, focus on cleaning the nozzle and spray tips for clog-free performance:

  • Remove the nozzle and tips from the sprayer.
  • Soak them in the solvent for a few minutes.
  • Use a soft brush to remove any residue.
  • Inspect the parts for wear and replace if needed.

Scrubbing The Paint Passage Components

Disassemble the paint passage components with care. Use these steps:

  1. Gently remove each part.
  2. Soak them in solvent to loosen leftover paint.
  3. Scrub each part with a brush.
  4. Rinse them with clean solvent.

Rinsing And Drying Individual Parts

After cleaning, each part must be rinsed and dried:

  • Rinse each component with clean solvent.
  • Shake off excess solvent from the parts.
  • Lay out the parts on a towel to air dry.
  • Ensure the parts are completely dry before reassembly.

Regular cleaning not only maintains sprayer efficiency but also avoids potential damages caused by paint build-up. By following these clear and concise steps, you’re on your way to keeping your Graco 360 Paint Sprayer in top condition for your next project.

How To Clean The Graco 360 Paint Sprayer


Reassembling And Storing The Sprayer

Cleaning your Graco 360 Paint Sprayer is crucial, but so is reassembling it correctly. Follow these steps to make sure your sprayer works well the next time you need it. Remember, taking the time to store your sprayer securely will help it last longer and perform better.

Proper Reassembly After Cleaning

After thoroughly cleaning your Graco 360 Paint Sprayer, make sure each part dries before you start reassembling. Align all parts correctly as indicated in the user manual. Tighten any screws or nozzles to prevent paint leaks during future use. Check each component to ensure it’s free of any cleaning residue.

  • Reattach the spray gun to the hose.
  • Secure the nozzles and tips.
  • Reconnect the intake and drain tubes.
  • Test the trigger to ensure smooth operation.

Storing The Graco 360 To Prevent Damage

Proper storage is essential for your paint sprayer’s longevity. Find a clean, dry place away from extreme temperatures. If possible, hang the sprayer to keep it off the ground and avoid moisture. Cover it with a cotton sheet to protect it from dust and debris.

  • Disconnect all power sources.
  • Release any pressure from the machine.
  • Clean the exterior of the sprayer.
  • Cover and store in an upright position.

Regular Maintenance Tips

Maintaining your Graco 360 Paint Sprayer ensures optimal performance. Check for worn or damaged parts and replace them as needed. Lubricate moving parts to prevent rust and corrosion. Run a test spray before each use to ensure everything is in working order. Keep a maintenance log to track your cleaning and upkeep activities.

  1. Inspect hoses and replace if cracked.
  2. Check filters and clean or replace them regularly.
  3. Lubricate the parts as per the manual’s guidelines.
  4. Ensure proper function by running tests.

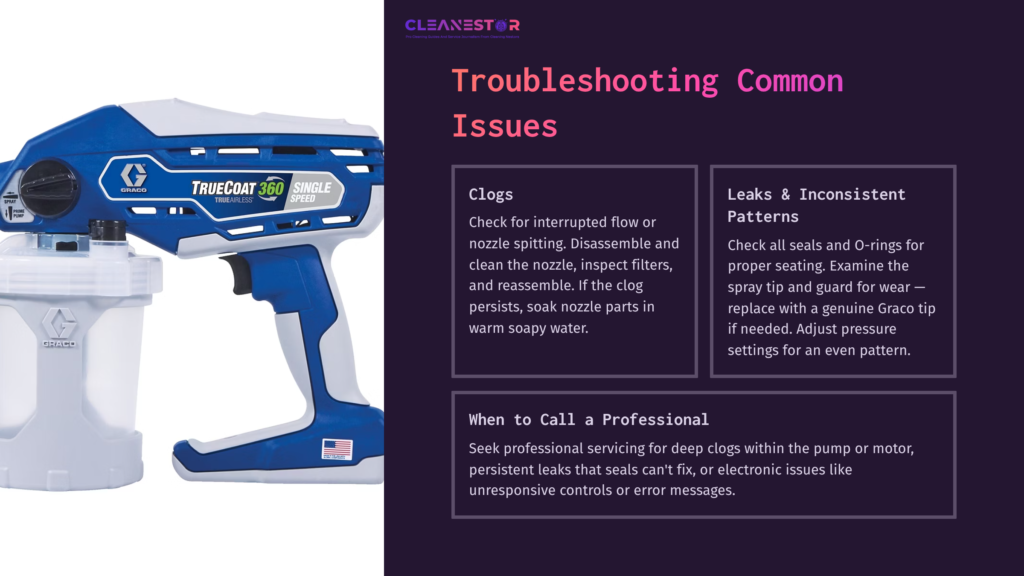

Troubleshooting Common Issues After Cleaning

After diligent cleaning of your Graco 360 Paint Sprayer, your machine should be ready for action. Yet, sometimes you may encounter a few hiccups. These troubleshooting tips will guide you through resolving issues that can arise, ensuring your paint sprayer performs optimally.

Identifying And Resolving Clogs

Clogs can halt your painting project quickly. To identify a clog, check for an interrupted paint flow or spitting from the nozzle. Follow these steps to resolve clogs:

  • Disassemble the nozzle and clean each component.
  • Inspect the filters and remove any debris.
  • Reassemble the sprayer and test the flow.

If the clog persists, soak the nozzle parts in warm, soapy water, then try again.

Addressing Leaks Or Inconsistent Spray Patterns

Leaks and inconsistent patterns affect the finish quality. Proper seals and usage are crucial.

  1. Check all seals and O-rings: Ensure they’re intact and seated properly.
  2. Examine the spray tip and guard for wear and tear. Replace if necessary.
  3. Adjust pressure settings to ensure an even spray pattern.

If inconsistencies continue, a worn spray tip might be the culprit. Replace it with a genuine Graco tip.

When To Seek Professional Servicing

Some issues need a professional touch. If you’ve tried the above solutions without success, it’s time to seek professional servicing.

  • Complex clogs: Deep within the pump or motor.
  • Persistent leaks: That seals and O-rings can’t fix.
  • Electronic issues: Unresponsive controls or error messages.

Contact Graco’s customer service or an authorized repair center. Don’t forget to describe the steps you’ve already taken.

How To Clean The Graco 360 Paint Sprayer


Frequently Asked Questions For How To Clean The Graco 360 Paint Sprayer

How Do You Clean A Graco Paint Sprayer?

To clean a Graco paint sprayer, turn off and unplug the unit, flush the system with a suitable cleaning solution, disassemble and clean the filter, nozzle, and gun, reassemble the components, and finally, run clean water through the sprayer to rinse.

What Do You Run Through A Paint Sprayer To Clean It?

Run water or mineral spirits through a paint sprayer for water-based paints and solvents for oil-based paints to clean it. Always follow the manufacturer’s instructions for best results.

How Do You Get Dried Paint Off An Airless Sprayer?

To remove dried paint from an airless sprayer, follow these steps: 1. Disassemble the sprayer head and tip. 2. Soak the parts in a paint solvent suitable for the paint type. 3. Scrub gently with a brush to loosen the paint.

4. Rinse the parts thoroughly with water. 5. Reassemble the sprayer.

Can I Use Paint Thinner To Clean My Graco Paint Sprayer?

Yes, you can use paint thinner to clean your Graco paint sprayer. Always refer to the manufacturer’s instructions for the recommended cleaning method.


Maintaining your Graco 360 Paint Sprayer through regular cleaning ensures its longevity and optimal performance. By following the step-by-step guide provided, you’ll enjoy a seamless painting experience every time. Keep these tips handy for your next project, and your sprayer will be ready to deliver top-notch results.

Happy painting!
