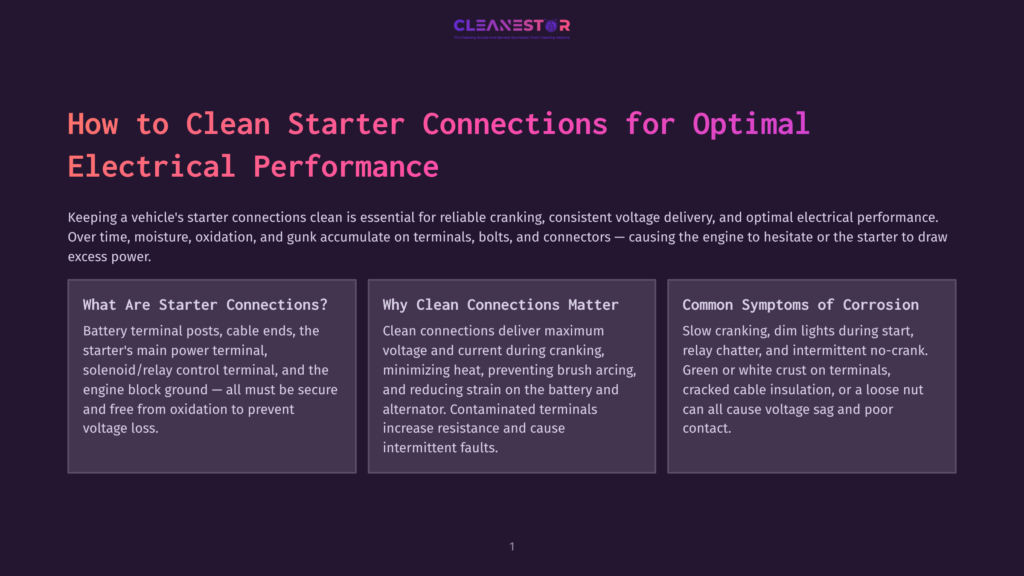

Keeping a vehicle’s starter connections clean is essential for reliable cranking, consistent voltage delivery, and optimal electrical performance. Over time, moisture, oxidation, and gunk accumulate on each terminal, bolt, and connector, causing the engine to hesitate or the starter to draw excess power.
This first section explains what starter connections are, why clean electrical connections matter, and the common issues caused when battery connections and cables corrode. You will learn the role of the battery, relay, and alternator in feeding the starter, and how proper contact at every plug and clamp affects current flow.
By understanding the system before you properly clean it, you can decide whether to rebuild, connect new parts, or simply restore surfaces with an electrical contact cleaner and a wire brush.
Understanding Starter Connections
Starter connections are the network of electrical paths that deliver power from the battery to the starter motor through heavy-gauge battery cable, relay or solenoid terminals, and associated wiring. These electrical connections must present low resistance and clean contact surfaces to pass high current without a voltage drop.
From the batt positive battery terminal to the starter’s main terminal and the engine ground, each clamp, nut, and bolt must be tight and free of corrosion. The alternator, often called the alt, replenishes the battery after cranking, but poor connections can still corrode and strain the system.
Knowing how the cable routes, where each connector resides, and how the plug-in leads interface helps you disconnect and install components correctly when you clean or need to replace damaged parts.
What are Starter Connections?
Starter connections include the battery terminal posts, battery cable ends, the starter’s main power terminal, the solenoid or relay control terminal, and the engine block ground connection. These points link the battery’s stored power to the starter motor windings and brush assembly so the engine can crank.
Every contact must be secure and free from oxidation to prevent voltage loss. The circuit also relies on clean grounds where the cable bolts to the chassis or engine surface. Any plug, connector, or wire that carries current to the stater—commonly misspelled for starter—must maintain firm contact.
Understanding these junctions ensures you can take connections apart, inspect for corrosion, then restore or replace parts to keep the vehicle starting reliably.
Importance of Clean Starter Connections
Clean connections deliver maximum voltage and current during cranking, minimizing heat, preventing brush arcing, and reducing strain on the battery and alternator. A contaminated terminal or corroded cable increases resistance, causing the engine to hesitate, the relay to click without spinning the motor, or the electrical system to suffer intermittent faults.
Properly clean surfaces allow solid electrical contact, preserving power delivery and preventing harmful sparks at the plug or clamp. Using battery cleaner, electrical contact cleaner, or cleaner spray, followed by dielectric grease or silicone on non-contact areas, helps block moisture and oxidation.
When these interfaces are clean and tight, the system draws less current, the fuse links are less stressed, and you avoid misdiagnosing a weak battery or failing starter due to poor connections.
Common Issues with Corroded Connections
Corrosion creeps under insulation and across copper lugs, forming high-resistance layers that corrode and overheat under load.
Symptoms include slow cranking, dim lights during start, relay chatter, and intermittent no-crank. A green or white crust on a battery terminal, cracked insulation on a battery cable, or a loose nut on a starter terminal can cause voltage sag and poor contact. Grit and gunk embedded on the surface trap moisture, accelerating oxidation.
Some drivers believe they replaced a bad starter, only to find the root cause was a compromised connector or ground that an auto mechanic or electrician could have restored with a wire brush and electrical contact cleaner. If cleaning fails, parts stores and auto parts counters can supply rebuilt units and new cables to fully restore electrical performance.
Preparing for the Cleaning Process
Preparation ensures you can properly clean each starter connection without introducing new electrical faults. Before taking connections apart, verify the vehicle is parked safely with the engine off and the key removed, then plan how you will disconnect the batt and isolate every cable, plug, and connector.
Gather diagrams or photos to track each terminal and wire so you can reconnect and install components in the correct order. Confirm the battery, alternator, and relay wiring paths, noting where the battery cable routes to the starter and ground bolt.
Assess visible corrosion, oxidation, and gunk on each copper surface and clamp to decide whether to restore, rebuild, or replace. A methodical approach reduces resistance, avoids accidental sparks, and improves post-cleaning voltage stability.
Gathering Necessary Tools and Materials
Gather essential tools and supplies for cleaning and maintaining electrical connections and battery terminals. Use an electrical contact cleaner and a battery cleaner spray to remove oxidation and corrosion. Include a wire brush, a small brass brush, a nylon brush for delicate copper lugs, and sandpaper for stubborn grit on terminals or bolts.
Prepare socket wrenches for nuts and clamps, a torque wrench for final installation, and insulated pliers for safe battery handling. Apply dielectric grease and silicone to protect non-contact areas from moisture after cleaning, and use rags to wipe residue.
Keep baking soda and water to neutralize acid on battery terminals, along with safety glasses and gloves. Consider spare cable ends, connectors, and hardware to replace damaged parts as needed.
| Category | Items |
|---|---|
| Cleaners and Protection | Electrical contact cleaner; Battery cleaner spray; Dielectric grease; Silicone |
| Brushes and Abrasives | Wire brush; Small brass brush; Nylon brush; Sandpaper |
| Tools | Socket wrenches; Torque wrench; Insulated pliers |
| Safety and Cleanup | Baking soda and water; Rags; Safety glasses; Gloves |
| Spare Parts | Spare cable ends; Connectors; Hardware |
Safety Precautions to Consider
Follow these safety steps before working near the vehicle’s electrical system to prevent injury and damage:
- Always disconnect the negative battery terminal first to prevent accidental short circuits, sparks, or heat at a live terminal or plug.
- Wear eye protection and gloves when using electrical contact cleaner or battery cleaner, as the spray can irritate skin and eyes.
- Keep the ignition off and remove the key so the relay and starter cannot engage while you work near the engine.
- Avoid metal jewelry that could bridge power between a cable and chassis bolt, and never place tools across the battery posts.
- Ventilate the area to disperse fumes from the cleaner spray and moisture evaporation.
- If the vehicle shows damaged insulation, exposed wire, or a swollen battery, consult a mechanic or electrician before proceeding.
- Protect fuse links and sensitive electrical connections by preventing overspray and avoiding aggressive brushing on delicate parts.
Identifying the Starter and Battery Terminals
Locate the battery first and identify both battery terminals, noting the positive post feeding the main battery cable and the negative ground to the chassis or engine block bolt. Trace the heavy-gauge cable from the batt positive to the starter’s main power terminal, then find the smaller relay or solenoid connector controlling the starter.
Confirm the engine ground strap and any auxiliary ground wire connections that complete the electrical path. Inspect each clamp, nut, and copper lug for corrosion, oxidation, or gunk that could cause a voltage drop and make the engine hesitate.
Photograph the layout before disassembly to ensure correct reconnection. Note any alt or alternator lead routing nearby so you do not disturb related electrical connections.

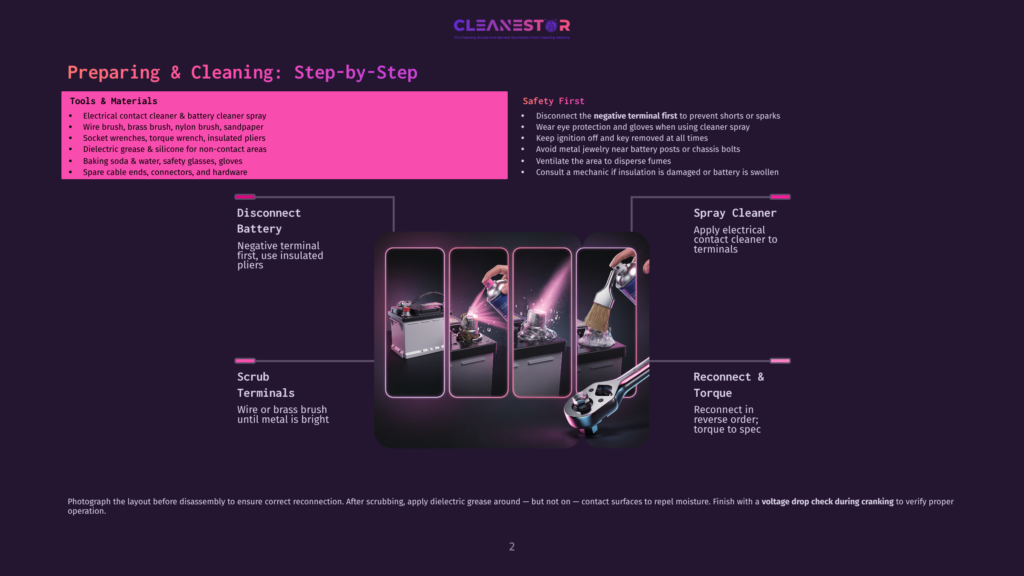

Step-by-Step Process to Clean Starter Connections
A methodical process ensures you properly clean every starter connection, minimize ohm losses, and restore solid electrical contact for reliable cranking.
Begin by isolating the battery, then take the connections apart at the starter terminals, ground, and relay or solenoid connector. Use electrical contact cleaner and battery cleaner spray to loosen corrosion, oxidation, and gunk on each copper surface before scrubbing with a wire brush.
Inspect every battery cable, clamp, nut, and bolt for damage or looseness, and replace any parts that corrode beyond recovery. After cleaning, apply dielectric grease or silicone to non-contact areas to block moisture, then reinstall and connect components in the correct order.
Finish with a voltage drop check during cranking to verify proper operation.
Disconnecting the Battery
To safely disconnect and clean the vehicle’s starter and related electrical connections, follow these steps in order:
- Turn the vehicle off and remove the key so the relay cannot energize the starter.
- Disconnect the negative terminal first, then the positive.
- If acid residue is present, neutralize it with baking soda and water before using the cleaner spray.
- Label each battery cable and plug-style connector so you can reconnect and install them correctly later.
- Trace the heavy-gauge wire from the battery to the starter and the engine ground bolt; loosen each nut methodically to take connections apart without damaging threads.
- Keep tools clear of both posts to avoid shorts across the fuse or chassis.
- Once isolated, safely access the starter connections, the alternator lead if present, and associated electrical connections for thorough cleaning and inspection.
Cleaning the Starter Terminals
With power disconnected, remove the starter’s main cable and the small relay or solenoid connector. Spray electrical contact cleaner generously onto each terminal, copper lug, and mating surface to dissolve oxidation and grit. Use a wire brush or brass brush to scrub corrosion and gunk until the surfaces are bright and smooth; avoid removing excessive material from softer copper parts.
For stubborn deposits, apply battery cleaner and follow with a cleaner spray to rinse. Inspect the clamp, nut, and bolt for wear, then replace damaged hardware or cables that cannot be restored. Clean the engine ground strap and chassis contact area as well, as a poor ground can make the engine hesitate and mimic a stater or starter fault. Dry fully, then apply a thin film of dielectric grease around—but not on—the actual contact areas to repel moisture.
Reconnecting Battery Connections
Reassemble the electrical connections in reverse order, starting with the starter’s main terminal and relay plug, then the engine ground bolt and battery connections. Tighten each nut and clamp to the manufacturer’s torque so the contact is secure without deforming the cable ends. Verify the battery cable routing clears moving engine parts and that no wire insulation is pinched.
Connect the positive terminal first, then the negative, watching for any unexpected spark. If the vehicle previously replaced a bad starter unnecessarily, the restored surfaces and clean electrical contact should now deliver stable voltage and power. Perform a test crank while monitoring lights for dimming; steady operation indicates you properly cleaned and restored the circuit.
If issues persist, consult a mechanic or electrician to diagnose relay, alt or alternator output, or the need to replace or rebuild components.

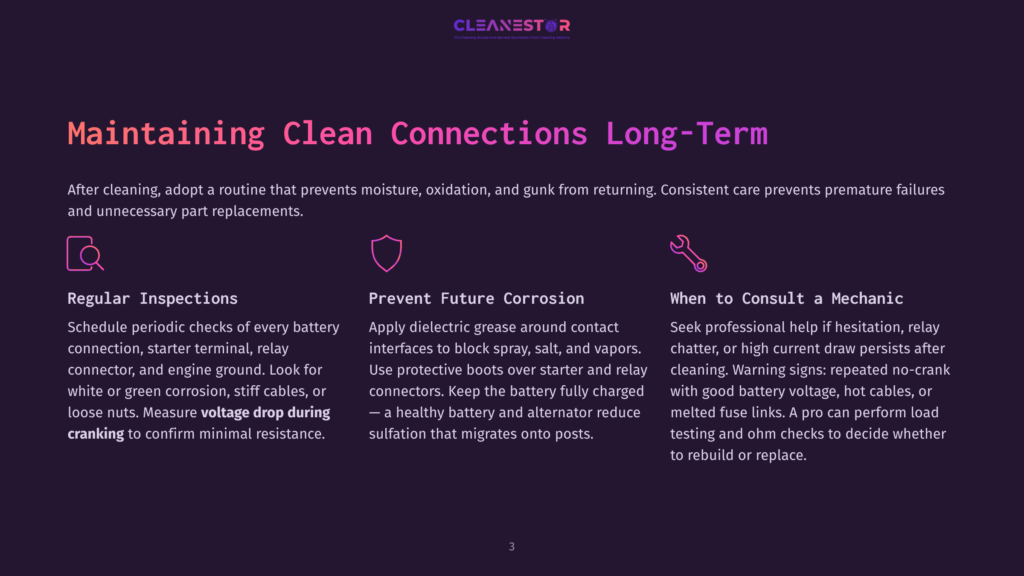

Maintaining Clean Electrical Connections
Maintaining clean electrical connections extends the life of your starter connections and preserves stable voltage and power delivery throughout the vehicle.
After you properly clean each terminal, clamp, plug, and connector, adopt a routine that prevents moisture, oxidation, and gunk from returning to the copper surfaces. Inspect every battery cable, battery terminal, and ground bolt for early signs of corrosion that can corrode and raise ohm resistance.
Use electrical contact cleaner and cleaner spray for quick touch-ups, then protect non-contact areas with dielectric grease or silicone. Verify the alternator output so the batt is kept healthy, because a weak battery can make the engine hesitate and spark at a loose nut or wire.
Consistent care prevents premature failures and unnecessary part replacements.
Regular Inspection of Battery and Starter Connections
Schedule periodic checks of every battery connection, starter terminal, relay connector, and engine ground to detect grit, oxidation, and looseness before they escalate.
Look for white or green corrosion around a clamp, plug, or bolt, and feel each cable for stiffness that suggests internal gunk or broken wire strands. Gently wiggle the battery cable ends and starter connections; any movement at a nut or terminal signals poor contact.
Use a wire brush and electrical contact cleaner to restore clean copper surfaces, then retorque hardware. Measure voltage drop during cranking to confirm minimal resistance across connections. Inspect the alternator, sometimes noted as the alt, for proper charge voltage, as undercharge can corrode terminals faster.
Keep photos of connections apart to ensure you connect and install everything exactly as removed.
Preventing Future Corrosion
Prevention starts with sealing out moisture and contaminants that corrode metal. After cleaning, apply dielectric grease around—but not on—contact interfaces of each battery terminal, starter terminal, and ground bolt to block spray, salt, and vapors. Route the battery cable away from heat sources that can bake insulation and attract grit.
Use protective boots over the starter and relay connector, and ensure the clamp loads are correct so vibration cannot loosen a nut and invite spark or oxidation. Keep the batt fully charged; a healthy battery and alternator reduce sulfation that can migrate onto posts.
For vehicles in harsh climates, perform seasonal rinses with battery cleaner, then a quick pass of electrical contact cleaner to restore the surface film. Replace cracked plugs or damaged wire promptly with quality parts from auto parts stores.
When to Consult a Mechanic
Seek professional help if hesitation, relay chatter, or high current draw persists after cleaning. Warning signs include repeated no-crank with good batt voltage, hot cables after a short crank, melted fuse links, or evidence that you replaced a bad component, yet symptoms persist.
A pro can perform load testing, ohm checks, and scope analysis of the electrical connections, starter windings, and alternator output to decide whether to rebuild or need to replace parts. If a terminal, connector, or bolt is seized, severely corroded, or the wire sheathing is brittle, seeking help avoids damage when taking connections apart.
Mechanics also ensure correct install torque, proper plug orientation, and safe disconnect practices, using OEM hardware from trusted parts stores to restore long-term reliability.
