How to Clean De Pool Filter

To clean your pool filter, follow these steps: Backwash the filter, remove and clean the cartridges or grids, and then reassemble and restart the filter system. Cleaning your pool filter regularly ensures optimal performance and longer lifespan.

Understanding De Pool Filters

When it comes to keeping your swimming pool clean and sparkling, the pool filter plays a crucial role. One type of pool filter that is widely used is the Diatomaceous Earth (DE) pool filter. In this section, we will explore what a DE pool filter is, how it works, and the advantages and disadvantages it offers.

What Is A De Pool Filter And How Does It Work?

A DE pool filter is a type of pool filtration system that uses Diatomaceous Earth, a natural and porous material, to trap impurities and debris in the pool water. Diatomaceous Earth is made from the fossilized remains of microscopic aquatic plants known as diatoms. These diatoms have a unique structure that makes them highly effective at filtering out even the smallest particles.

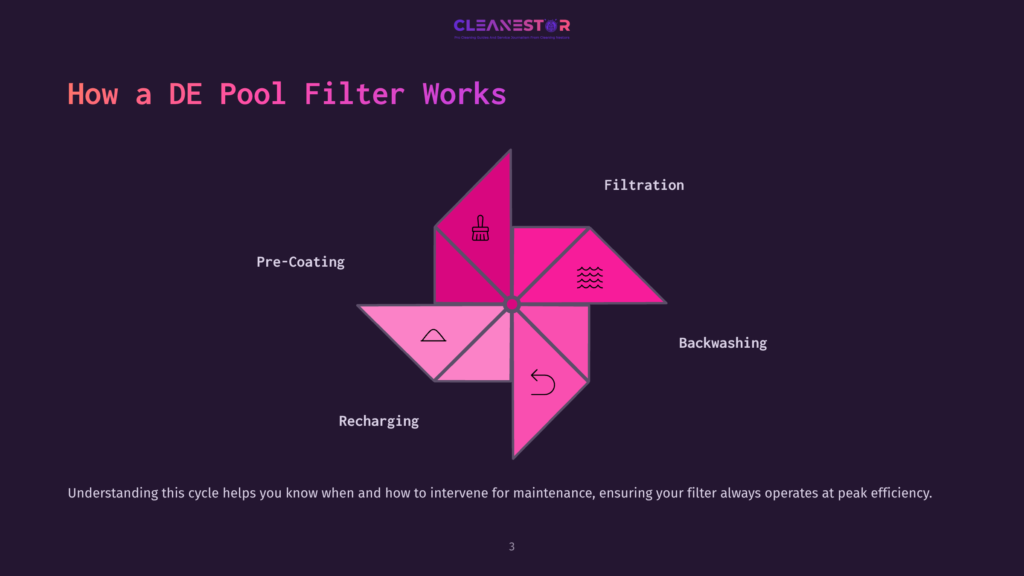

To understand how a DE pool filter works, let’s break it down into the following steps:

  1. Filtration Process: The pool water is circulated through the DE filter tank, which contains grids or screens coated with a layer of Diatomaceous Earth. As the water passes through these grids, the DE traps particles and impurities, leaving the water clean and clear.
  2. Pre-Coating: Before the filtration process begins, the DE filter grid needs to be pre-coated with a fresh layer of Diatomaceous Earth. This ensures that the filtration is efficient and effective. The DE is added through the skimmer or a dedicated DE feeder in a specific ratio recommended by the manufacturer.
  3. Backwashing: Over time, the DE filter grids become clogged with debris. When this happens, the water flow starts to diminish, and the filter needs to be cleaned through a process called backwashing. During backwashing, the DE filter reverses the water flow, flushing out the accumulated debris. The dirty water is then expelled through the waste line.
  4. Recharging: After backwashing, the DE filter needs to be recharged with a fresh layer of Diatomaceous Earth. This is done by adding the DE powder through the skimmer or dedicated DE feeder, according to the manufacturer’s instructions.

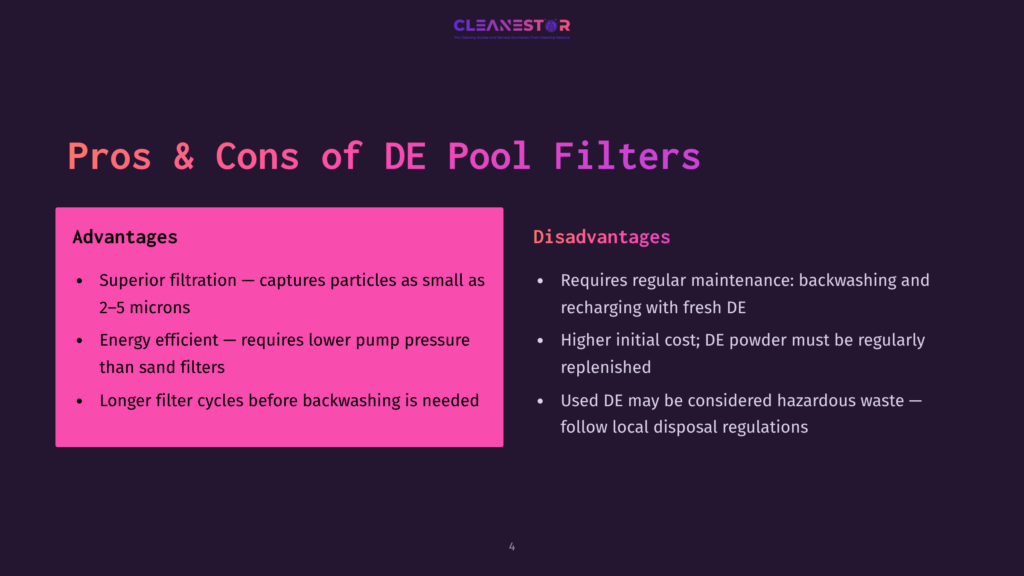

Advantages And Disadvantages Of De Pool Filters

DE pool filters offer several advantages that make them popular among pool owners:

  • Excellent Filtration: DE filters are known for their superior filtration capabilities. They can effectively capture debris as small as 2 to 5 microns, ensuring crystal-clear pool water.
  • Energy Efficient: Compared to sand filters, DE filters require lower pump pressure, resulting in energy savings.
  • Longer Filter Cycle: DE filters can operate for longer periods before requiring backwashing, thanks to their efficient filtration mechanism.

However, it is important to consider the disadvantages of DE pool filters as well:

  • Maintenance: DE filters require regular maintenance, including backwashing and recharging with fresh Diatomaceous Earth.
  • Cost: DE pool filters can have a higher initial cost compared to other types of filters, and the Diatomaceous Earth powder needs to be regularly replenished.
  • Waste Disposal: Disposing of the used DE can be a challenge as it is considered hazardous waste in some areas. Always follow the local regulations for proper disposal.

Understanding the inner workings and pros and cons of DE pool filters is essential if you want to maintain a clean and healthy swimming pool. By making an informed choice, you can ensure efficient filtration and enjoy crystal-clear water all season long.

How To Clean De Pool Filter

Credit: www.mccallumspoolservice.com

Signs That Your De Pool Filter Needs Cleaning

Signs that Your DE Pool Filter Needs Cleaning

A properly functioning DE pool filter is essential for maintaining clean and clear pool water. Over time, however, the filter can become clogged with debris and trapped particles, which can affect its performance. Therefore, it is important to be aware of the warning signs that indicate when your DE pool filter is in need of cleaning.

Decreased Water Flow And Pressure

One of the first signs that your DE pool filter needs cleaning is a noticeable decrease in water flow and pressure. If you find that the water is not circulating as strongly as it used to, or if the pressure gauge on your filter shows a lower reading than usual, it could be an indication that the filter is dirty and in need of maintenance.

When the filter becomes clogged with dirt, debris, and other organic matter, it obstructs the flow of water and puts strain on the filtration system. This can result in reduced water flow and pressure, which not only affects the effectiveness of the filtration process but can also lead to other problems such as poor water circulation and inadequate distribution of chemicals.

Cloudy Or Dirty Pool Water

Another sign that your DE pool filter needs cleaning is if you notice that your pool water is cloudy or dirty. Clean, clear water is one of the main indicators of a well-maintained pool, and when your filter is working efficiently, it helps to remove impurities and keep the water sparkling.

However, when the filter gets too dirty, it may not be able to effectively remove all the particles and contaminants from the water. As a result, you may notice that the water becomes cloudy, dull, or even green. This is particularly evident after heavy usage or prolonged periods of neglect. If your pool water is not looking its best, it’s a clear indication that it’s time to clean your DE pool filter.

Increased Water Consumption

Another potential sign that your DE pool filter is in need of cleaning is increased water consumption. If you find that you are adding water to your pool more frequently than usual, it could be due to a dirty filter.

When the filter becomes clogged, it can lead to a situation where water is forced to bypass the filter instead of being properly cleaned. This not only reduces the effectiveness of filtration, but it also causes water loss. As a result, your pool water level may drop more quickly, and you’ll find yourself having to replenish it more often.

Visual Inspection Of The De Filter Grids

In addition to the above signs, it is important to visually inspect the DE filter grids to determine if they need cleaning. The grids are the main components responsible for trapping and removing debris from the pool water, and over time, they can become coated with a layer of trapped particles.

To inspect the grids, you will need to open the filter tank and carefully remove the grids. Check for any signs of excessive dirt, residue, or clumps of DE powder that may have become compacted. If the grids appear dirty or clogged, it is a clear indication that they need cleaning.

Regular visual inspection of the DE filter grids and timely cleaning can help ensure that your pool filter functions at its best, providing you with clean and clear water throughout the swimming season. By looking out for these signs and taking necessary action, you can maintain an efficient filtration system and enjoy a refreshing pool experience.

Preparing For Cleaning

Before you start cleaning your pool filter, it’s important to properly prepare. This will ensure that the cleaning process goes smoothly and efficiently, saving you both time and effort. In this section, we will guide you through the steps you need to take to get ready for cleaning your pool filter.

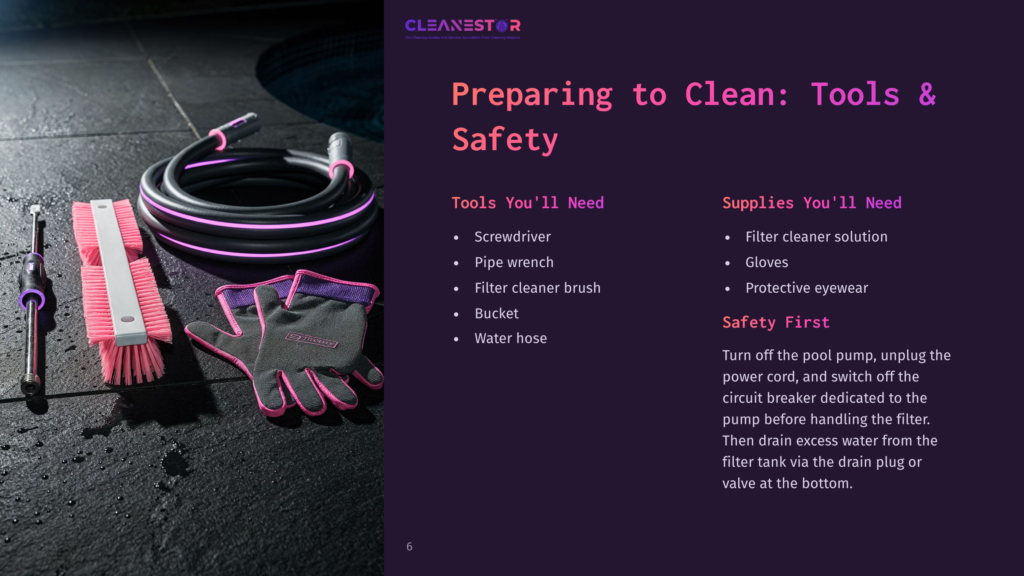

Gather The Necessary Tools And Supplies

Before you begin cleaning your pool filter, make sure you have all the tools and supplies you’ll need. Being prepared with the right equipment will help you complete the task efficiently. Here’s a list of essential tools and supplies you’ll need:

Tools Supplies
  • Screwdriver
  • Pipe wrench
  • Filter cleaner brush
  • Bucket
  • Water hose
  • Filter cleaner solution
  • Gloves
  • Protective eyewear

Turn Off The Pool Pump And Disconnect The Power Source

To ensure your safety and prevent any accidents, it’s crucial to turn off the pool pump and disconnect the power source before cleaning the pool filter. This will prevent the filter from accidentally turning on while you’re handling it. Follow these steps to do so:

  1. Locate the pool pump and switch it off.
  2. Unplug the power cord from the electrical outlet.
  3. If applicable, switch off any power supply from the circuit breaker dedicated to the pool pump.

Drain Excess Water From The Filter Tank

Prior to cleaning the pool filter, it’s important to drain any excess water from the filter tank to make the cleaning process easier and more effective. Follow these steps to drain the excess water:

  1. Find the drain plug or valve at the bottom of the filter tank.
  2. Place a bucket or a hose nearby to collect the drained water.
  3. Unscrew the drain plug or open the valve to release the water.
  4. Allow the water to completely drain out before proceeding with the cleaning.

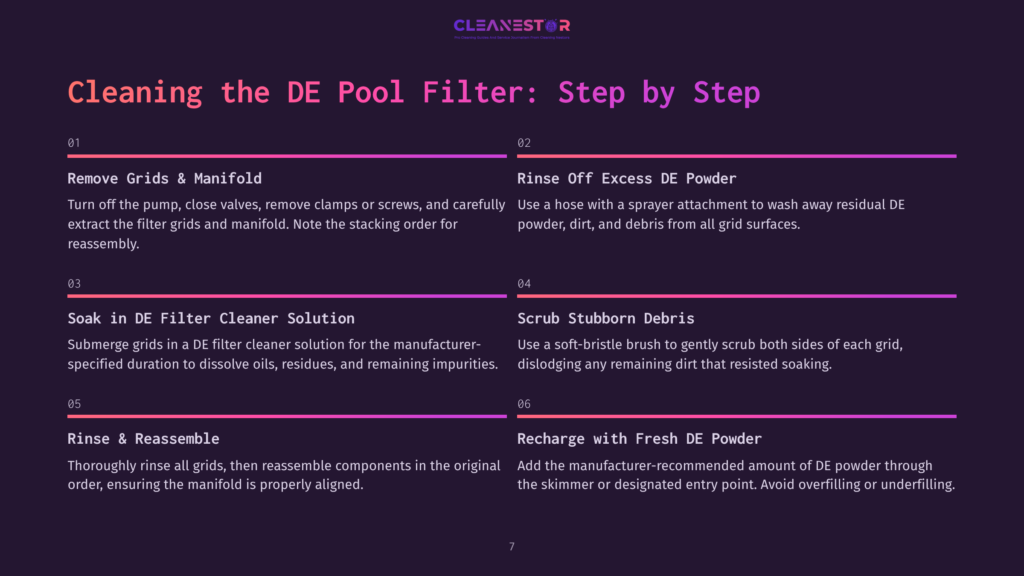

Cleaning The De Pool Filter

Removing The Filter Grids And Manifold

Before you can begin cleaning your DE pool filter, you’ll need to remove the filter grids and manifold. These are the essential components that capture debris and particles from your pool water. Start by turning off the pool pump and closing the valves to prevent any water flow. Then, carefully remove the clamps or screws that secure the filter housing. Make sure to keep track of the order in which the grids and manifold are stacked for later reassembly.

Rinsing Off The Excess De Powder

Once the filter grids and manifold are safely removed, it’s time to remove the excess DE powder. DE stands for diatomaceous earth, a fine white powder that helps trap impurities in the pool water. Using a hose with a sprayer attachment, rinse off the grids and manifold to remove as much of the residual DE powder as possible. Aim to wash away any built-up dirt, debris, and other particles that may have accumulated on the surfaces.

Soaking The Filter Grids In A De Filter Cleaner Solution

After rinsing off the excess DE powder, it’s crucial to soak the filter grids in a DE filter cleaner solution. This specialized solution helps to break down and dissolve any remaining impurities, oils, or residues that may have been left behind after the initial rinse. Fill a large container or a clean bucket with the DE filter cleaner solution, ensuring it’s enough to submerge the grids completely. Allow the grids to soak for the specified duration provided by the cleaner manufacturer.

Scrubbing The Grids To Remove Stubborn Debris

Once the soaking process is complete, it’s time to scrub the filter grids to remove any stubborn debris. Use a soft-bristle brush or a filter cleaning tool to gently scrub the grids, paying special attention to areas with stubborn dirt or stains. Applying moderate pressure, carefully scrub both sides of each grid, ensuring all surfaces are thoroughly cleaned. This step helps to dislodge and eliminate any remaining impurities that may have resisted the soaking process.

Rinse And Reassemble The Filter Components

Now that the grids are scrubbed clean, it’s important to rinse them thoroughly to remove any loosened debris or cleaner residue. Use a hose with a sprayer attachment and ensure all the grids are rinsed completely, both on the top and bottom. Once rinsed, carefully reassemble the filter components in the same order you removed them. Make sure the manifold is aligned properly, and the grids sit securely in place.

Recharge The Filter With Fresh De Powder

The final step in cleaning your DE pool filter is to recharge it with fresh DE powder. Since you rinsed off the excess powder earlier, it’s time to add a new layer to ensure optimal filtration. Follow the manufacturer’s instructions to determine the correct amount of DE powder needed for your specific filter size. Slowly pour the DE powder into the skimmer or add it through the filter’s designated DE powder entry point. Be cautious not to overfill or underfill, as this can affect the filter’s performance.

Maintaining Your De Pool Filter

Maintaining your DE pool filter is crucial to keep your pool water crystal clear and ensure that the filter operates efficiently. By following a simple maintenance routine, you can extend the life of your DE pool filter and ensure that it is effectively removing impurities from your pool water. In this section, we will explore the key steps to maintain your DE filter, including regular backwashing and rinsing, monthly inspection and cleaning, as well as troubleshooting common DE filter issues. Let’s dive in!

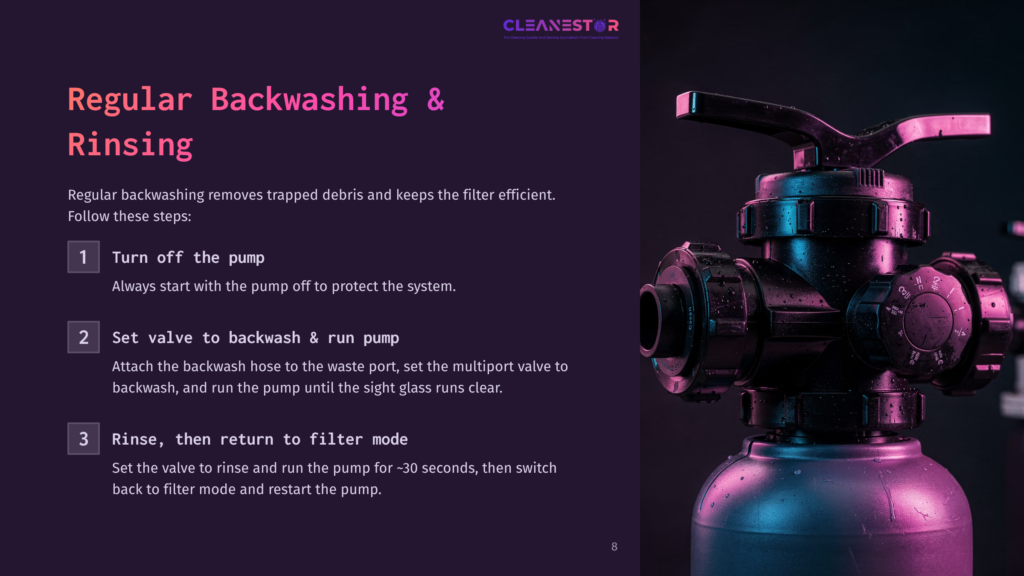

Regular Backwashing And Rinsing Of The De Filter

Regular backwashing and rinsing of your DE filter is essential to remove trapped debris and particles, keeping the filter clean and efficient. Follow these steps to perform regular backwashing and rinsing:

  1. Turn off the pool pump: Before beginning the backwashing process, ensure that the pool pump is turned off to prevent any damage to the system.
  2. Locate the filter’s backwash valve: Most DE filters have a multiport valve with different settings. Find the backwash position on the valve.
  3. Attach the backwash hose: Connect one end of the backwash hose to the waste port on the filter valve.
  4. Open the backwash valve: Turn the multiport valve to the backwash position.
  5. Turn on the pool pump: Start the pool pump and let it run until the water in the sight glass or waste hose runs clear, indicating that the filter is clean.
  6. Shut off the pump: Once the water is clear, turn off the pool pump.
  7. Rinse the filter: Set the multiport valve to the rinse position and turn on the pool pump for about 30 seconds to remove any remaining debris from the filter.
  8. Switch back to filter mode: Finally, set the multiport valve back to the filter position and turn on the pool pump again.

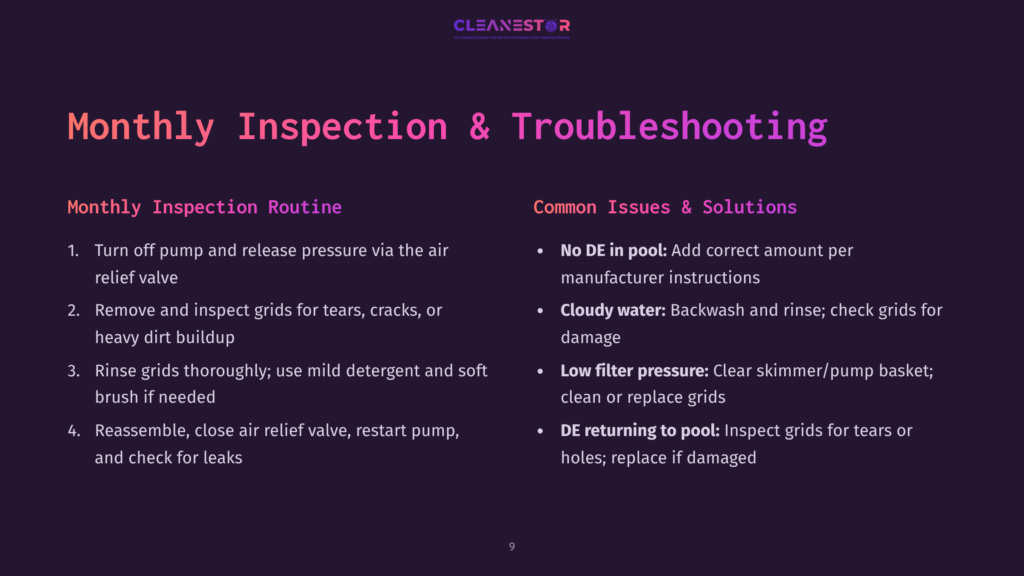

Monthly Inspection And Cleaning Routine

Performing a monthly inspection and cleaning routine helps to identify any potential issues with your DE filter and maintain its optimal performance. Follow these steps for your monthly inspection:

  1. Turn off the pool pump: Before inspecting the DE filter, turn off the pool pump to ensure your safety.
  2. Release pressure: Open the air relief valve on top of the filter to release any pressure.
  3. Remove the filter grid assembly: Unscrew the bolts or clamps securing the filter grid assembly and carefully remove it.
  4. Inspect the filter grids: Examine the filter grids for tears, cracks, or excessive dirt buildup. Replace any damaged or worn-out grids.
  5. Clean the filter grids: Rinse the filter grids thoroughly with a hose to remove any debris. If necessary, use a mild detergent and a soft brush to gently scrub the grids.
  6. Reassemble the filter: Once the grids are clean and dry, reassemble the filter grid assembly and secure it with bolts or clamps.
  7. Close the air relief valve: After reassembly, close the air relief valve tightly.
  8. Turn on the pool pump: Finally, turn on the pool pump and check for any leaks or abnormal noises.

Troubleshooting Common De Filter Issues

Despite proper maintenance, DE filters may encounter occasional issues. Here are some common DE filter problems and their solutions:

Issue Solution
No DE powder in the pool Add the appropriate amount of DE powder according to the manufacturer’s instructions.
Cloudy water Perform a backwash and rinse cycle to remove any debris or impurities. Check the filter grids for damage or excessive dirt buildup.
Low filter pressure Check for any obstructions in the skimmer or pump basket. Clean or replace the filter grids if necessary. Adjust the pool pump speed if applicable.
DE powder returning to the pool Inspect the filter grids for tears or holes. If damaged, replace the faulty grids. Ensure that the filter grid assembly is correctly installed.

By performing regular backwashing and rinsing, monthly inspections and cleanings, as well as troubleshooting common issues, you can keep your DE pool filter in optimal condition, ensuring clean and refreshing pool water all season long.

Can the Same Cleaning Method for a Pool Filter be Used for a Corroded HDMI Port?

Yes, the same cleaning method for a pool filter can be used for a corroded HDMI port. To start, use a soft brush to remove any loose debris, then apply a cleaning solution specifically designed for cleaning corroded hdmi ports. Gently scrub the port to remove any corrosion and residue, and allow it to dry completely before reconnecting.

Frequently Asked Questions On How To Clean De Pool Filter

How Often Should You Clean Your Pool Filter?

It is recommended to clean your pool filter at least once every month to ensure optimal performance. However, the frequency may vary depending on factors such as pool usage and environmental conditions. Regular cleaning helps maintain water clarity and extends the lifespan of the filter.

What Are The Steps To Clean A Pool Filter?

To clean a pool filter, start by turning off the pump and unscrewing the filter cover. Remove the filter cartridge or grids and rinse them with a hose to remove debris. If they are heavily soiled, use a filter cleaner solution.

Inspect the O-rings for any damage and lubricate if necessary. Finally, reassemble the filter and restart the pump.

Can I Clean A Pool Filter With Household Bleach?

No, using household bleach to clean a pool filter is not recommended. Bleach can damage the filter media and reduce its effectiveness. Instead, use a filter cleaner solution specifically designed for pool filters. These cleaners are formulated to remove oils, minerals, and other debris without causing harm to the filter.

Conclusion

Keeping your pool filter clean is essential for maintaining the water’s clarity and preventing any potential issues. Regular cleaning ensures optimal filtration, improving the overall efficiency of your pool system. By following the steps outlined you can easily and effectively clean your pool filter.

Remember, a clean filter means a healthier and more enjoyable swimming experience for everyone. So, don’t neglect this important maintenance task and keep your pool in top shape for years to come.
