Cleaning a TXV valve is a precise hvac task that restores proper superheat control, protects the compressor, and brings cool air back to the space. Before you start, understand how the thermal expansion valve interacts with the refrigeration system, the evaporator coil, and the condenser outside.
This guide focuses on methodical inspection, careful diagnosis, and the basic principles you need before any TXV disassembly, cleaning, and reassembly.
While many tech tutorials exist on video and YouTube, this article explains what the device does, common problem signs, and why a dirty or restricted expansion valve can create high-pressure issues, poor charge balance, and uneven unit performance.
Understanding the TXV Valve
The TXV, or thermal expansion valve, is a metering device regulating refrigerant flow into the evaporator. It responds to bulb temperature and evaporator pressure to modulate superheat, ensuring the coil receives the right liquid line flow without flooding the compressor.
When the valve becomes dirty, sticky, or partially blocked, the system can show high superheat, low capacity, and warm air at the registers.
Proper inspection helps differentiate a TXV issue from a filter or airflow problem. Knowing how the expansion valve should work is essential before you clean, attempt TXV disassembly, or consider replacement of any part in the refrigeration circuit.
What is a TXV Valve?
A TXV valve is a precision control device that meters refrigerant into the evaporator based on bulb temperature and suction pressure. By throttling the liquid line, the thermal expansion valve maintains target superheat, preventing liquid refrigerant from reaching the compressor and ensuring efficient heat transfer at the coil.
In an HVAC unit, the TXVโs movable pin and seat open or close to match load conditions. If contaminants cut into internal surfaces or debris accumulates, the valve can stick. Understanding these internal workings prepares you to diagnose a problem, plan careful cleaning, or decide when replacement is the better option for long-term system reliability.
Function of the Thermal Expansion Valve
The thermal expansion valve balances evaporator feed by adjusting to changing air and load conditions, aiming for stable superheat at the outlet. When cooling demand rises, the valve opens to increase mass flow; when demand falls, it closes to reduce flow, stabilizing pressure and preventing floodback.
This protects the compressor and ensures the coil delivers cool air efficiently. If the TXV is restricted, the system may show high superheat, low suction pressure, and poor performance. If it overfeeds, you may see low superheat and potential liquid carryover.
Recognizing these patterns helps you diagnose whether cleaning or TXV disassembly and reassembly are required.
Importance of Regular Inspection
Regular inspection prevents minor TXV issues from escalating into major system problems. A tech should inspect airflow and filters first, verify condenser cleanliness outside, and check charge, pressures, and superheat before blaming the expansion valve.
Many symptoms mimic a dirty coil, an airflow restriction, or an undercharge on the liquid line. Early detection allows you to clean strainers, correct a restriction, or plan a careful valve service before parts wear or debris causes permanent damage.
Routine checks also reduce unnecessary replacement, minimize downtime, and ensure the refrigeration unit maintains stable operation without resorting to rushed work or guesswork diagnoses seen in quick videos or YouTube tips.
Preparing for TXV Valve Cleaning
Effective preparation ensures the TXV cleaning process restores superheat control without introducing a new issue into the refrigeration system. Before any TXV disassembly, confirm the device is the problem by recording pressures, temperature drop across the coil, and superheat, and by ruling out airflow restrictions or a dirty filter.
Inspect the condenser outside and verify a proper charge on the liquid line so you do not misdiagnose a non-TXV problem. Gather tools, plan reassembly, and stage parts on a clean surface. This careful approach prevents contamination, protects the compressor, and sets the unit up for reliable operation after the expansion valve service.
Tools and Materials Needed
Assemble HVAC gauges, temperature probes for superheat readings, and a micron gauge for evacuation after reassembly. You will need wrenches sized for the thermal expansion valve fittings, torque tools, and line wrenches to prevent rounding.
Prepare nitrogen for purging, a recovery machine, and tank if the system requires refrigerant removal, and clean lint-free cloths to protect the TXVโs internals. Have new gaskets, O-rings, and the strainer or screen, plus solvent approved for refrigeration components.
Keep insulation tape for the bulb, thread sealant as specified, and tags to mark each part during TXV disassembly to streamline accurate reassembly.
| Category | Items |
|---|---|
| Measurement & Evacuation | HVAC gauges, temperature probes, and micron gauge |
| Tools | Wrenches for TXV fittings, torque tools, and line wrenches |
| Purging & Recovery | Nitrogen, recovery machine, recovery tank |
| Protection & Consumables | Lint-free cloths, new gaskets, O-rings, strainer or screen, approved solvent, insulation tape, thread sealant, tags |
Safety Precautions to Consider
Safety starts with de-energizing the unit and lockout/tagout, and confirming zero voltage before you work. Recover refrigerant per regulations to prevent high-pressure releases and protect the environment.
Wear eye protection and gloves when handling refrigerant and solvents, and purge with nitrogen to avoid introducing air or moisture into the system. Keep ignition sources away and ventilate the area, especially when servicing equipment outside near the condenser.
Support piping to prevent cuts or stress on joints when the valve is open or removed. Finally, label each line and cap openings to keep debris out during inspection, cleaning, and subsequent reassembly.

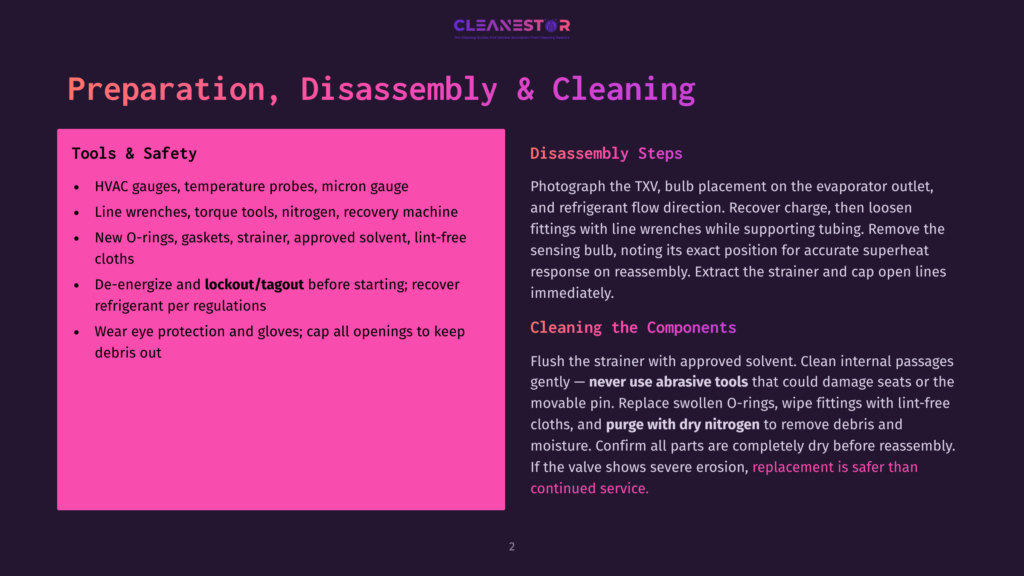

Steps to Safely Disassemble the TXV
Begin by documenting the installation: photograph the TXV, bulb placement on the evaporator outlet, and the direction of refrigerant flow from the liquid line. Recover charge as needed, then isolate the device. Loosen fittings with line wrenches, supporting tubing to avoid kinks or a cut ferrule.
Remove the sensing bulb and note its exact location and orientation for accurate superheat response on reassembly. Extract the strainer, inspect for debris, and cap open lines to keep air and moisture out. Handle the thermal expansion valve carefully to prevent damage to internal parts.
Keep components organized for a clean, efficient reassembly after you clean.
Step-by-Step Cleaning Process
A careful step-by-step process ensures the TXV is cleaned without introducing a new issue into the refrigeration system.
After safe isolation and TXV disassembly, the tech should document each part, maintain cleanliness, and prevent moisture from entering the liquid line or evaporator.
Begin with a methodical inspection to diagnose the problem, verify superheat, and rule out airflow or filter restrictions that might mimic a valve fault. Then proceed to clean, reassemble, and test under stable load conditions.
Avoid rushing like a quick video on YouTube; instead, follow controlled pressure checks and confirm the device restores cool air and protects the compressor.
Cleaning the TXV Components
Place the thermal expansion valve on a clean bench. Remove the strainer and flush it with an approved solvent, keeping the valve body open only as long as needed to prevent contamination.
Clean the TXVโs internal passages gently, never using abrasive tools that could cut seats or damage the movable pin. Wipe fittings with lint-free cloths, inspect O-rings, and replace any dirty or swollen seals.
Purge with dry nitrogen to remove debris and moisture from the refrigeration circuit. Protect the sensing bulb and capillary, and confirm every part is completely dry before reassembly.
| Step | Key Action |
|---|---|
| Strainer service | Remove the strainer and flush with approved solvent; limit valve exposure to avoid contamination. |
| Internal cleaning | Clean passages gently; do not use abrasive tools that could damage seats or the movable pin. |
| Seals and fittings | Wipe fittings with lint-free cloths; inspect O-rings and replace dirty or swollen seals. |
| Circuit purge | Purge with dry nitrogen to clear debris and moisture from the refrigeration circuit. |
| Reassembly prep | Protect the sensing bulb and capillary; verify all parts are fully dry before returning the valve to the unit. |
Inspecting the Expansion Valve
Inspect the expansion valve under good light to diagnose wear or mechanical damage. Check the pin and seat for scoring, ensure the spring action is smooth, and confirm the strainer captured particulates that could have restricted refrigerant flow.
Evaluate the sensing bulb for dents, kinks, or a cut capillary that would cause unstable superheat. Look for corrosion on fittings and verify threads are intact for leak-free reassembly. If the valve shows severe erosion or deformation, note that replacement is safer than continued work.
Document findings, compare to system symptoms, and confirm the root cause so the problem does not return after cleaning.
Proper Techniques for Cleaning the Coil
Because a dirty evaporator coil can mimic a TXV problem, clean the coil to restore correct air and pressure relationships before final reassembly. De-energize the hvac unit, remove panels, and inspect the filter; replace if restrictive. Use coil-safe cleaner and rinse per manufacturer guidance to avoid pushing debris deeper.
Ensure the condenser outside is also clean to stabilize head pressure and refrigerant charge. Restoring airflow helps the device achieve target superheat and deliver cool air. After cleaning, recheck static pressure, verify temperature drop, and confirm the system responds normally, preventing misdiagnosis that might otherwise lead to unnecessary valve changes.

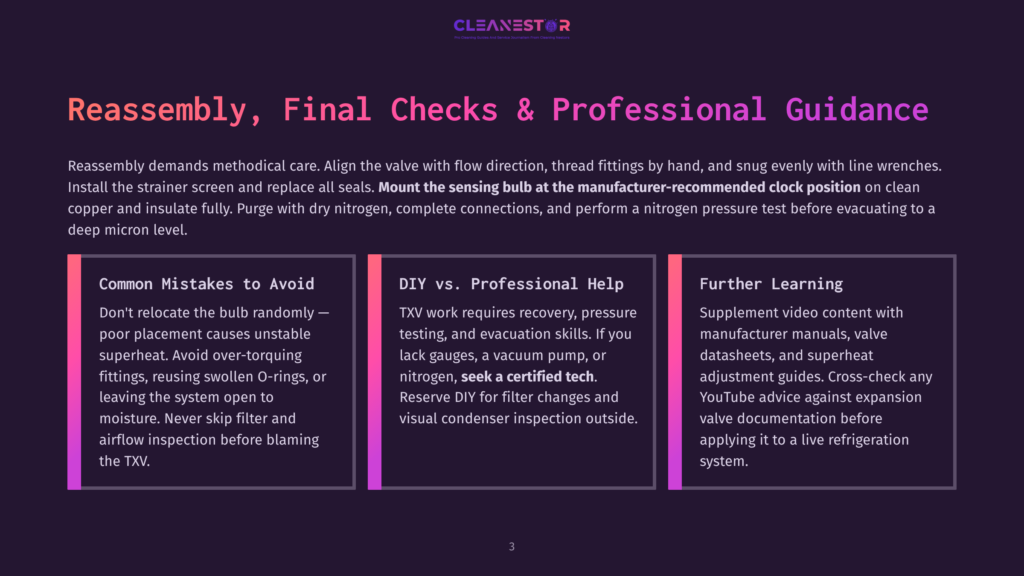

Reassembly of the TXV Valve
Reassembly of the thermal expansion valve demands careful, methodical work to protect the refrigeration system and ensure stable superheat. After cleaning, verify every part is dry and free of debris, then align the valve with the liquid line and evaporator connections without forcing threads.
Support tubing to avoid a cut flare or kink, and replace O-rings or gaskets as needed. Reinstall the sensing bulb in the original position, tight and well-insulated, to read true coil temperature. Keep the device and openings clean and capped until final assembly, then tighten to spec so the unit maintains proper pressure and delivers cool air.
Steps for Reassembling the TXV
Follow these steps to install and prepare the expansion valve and sensing bulb correctly. Ensure proper fit, sealing, and verification before evacuation and charging.
| Step | Action |
|---|---|
| Valve and Fittings | Position the expansion valve according to flow direction, thread by hand to avoid cross-threading, and use line wrenches to snug fittings evenly. |
| Sealing and Strainer | Install the strainer screen, replace any worn seals, and apply approved thread sealant where specified. |
| Sensing Bulb Mounting | Mount the sensing bulb on clean copper, at the clock position recommended by the hvac manufacturer, and insulate fully so air currents outside the line do not skew readings. |
| Purging and Connections | Purge the section with dry nitrogen briefly to keep moisture out, then pull caps and complete connections. |
| Routing Check | Verify the bulb routing avoids hot spots near the condenser discharge. |
| Final Verification | Finish with a documented torque check before evacuation and charging. |
Common Mistakes to Avoid
Do not relocate the bulb randomly on the coil outlet; poor placement causes unstable superheat and masks the original issue. Avoid over-torquing fittings, which can cut flares and create leaks under high pressure. Never leave the system open to the air, as moisture will degrade refrigerant oil and corrode the valve.
Skipping filter and airflow inspection can lead the tech to misdiagnose a dirty coil as a TXV problem. Do not reuse swollen O-rings or contaminated parts, and never rely solely on a quick video or YouTube tip instead of specifications. Finally, resist rushing reassembly; a few careful minutes prevent costly replacement.
Final Inspection Before Charging
Before introducing refrigerant, inspect every connection for proper alignment, verify the valveโs flow arrow, and confirm the strainer and seals are seated.
Check bulb placement and insulation, ensure clamps are tight, and that capillary routing is secure and away from hot lines.
Perform a nitrogen pressure test to verify no leaks, then evacuate to a deep micron level to remove air and moisture. Inspect the filter and coil to confirm airflow is correct, and verify electrical connections at the unit.
Document all readings so you can diagnose any remaining issues after the charge, ensuring the system protects the compressor and delivers cool air.
Additional Resources
When refining your HVAC technique, combine formal manuals with curated video training to strengthen your grasp of TXV disassembly, cleaning, and reassembly. Manufacturer service bulletins, valve datasheets, and system design guides explain superheat targets, pressure relationships, and correct bulb placement on the evaporator.
Professional forums can help a tech compare symptoms, while reputable YouTube channels provide visual demonstrations for the same device and model family. Keep notes on torque values, evacuation practices, and charge methods to prevent repeat problems.
Balanced learning ensures you diagnose accurately, avoid unnecessary replacement, and deliver reliable performance in both residential and light commercial units outside and inside.
How to Watch Cleaning Videos
Use video content as a supplement, not a substitute, for specifications. Choose channels with certified hvac professionals who show full workflows: inspection, diagnosis, TXV disassembly, cleaning, reassembly, pressure testing, evacuation, and charging.
Pause to note torque specs, bulb placement on the coil outlet, and nitrogen purging steps. Compare the system layout in the video to your unit, condenser, and liquid line routing, since small differences can change the correct procedure.
Avoid clips that skip leak checks or gloss over superheat verification. Always cross-check advice with the expansion valve manufacturerโs documentation before applying anything to a live refrigeration system.
Further Reading on TXV Valves
Prioritize manufacturer installation instructions, service manuals, and application guides that detail valve sizing, bulb strapping, and superheat adjustment.
White papers on refrigeration fundamentals explain how pressure, temperature, and mass flow interact at the evaporator, helping you diagnose a high superheat issue versus a low charge. Trade journals and association resources cover best practices for cleaning, moisture control, and when replacement is warranted.
Study troubleshooting trees that distinguish a dirty filter or coil restriction from a malfunctioning TXV. Keep a library of datasheets for the specific device models you service so you can confirm parts, materials, and approved sealants during reassembly.
Professional Help vs. DIY Cleaning
DIY cleaning can work for basic inspection and coil maintenance, but TXV work on a sealed refrigeration system requires recovery, pressure testing, and evacuation skills.
A professional tech brings certified tools, understands superheat targets, and can diagnose whether the problem is the expansion valve, airflow, charge, or a deeper system fault. If you lack gauges, a vacuum pump, and nitrogen, or cannot verify leak-free reassembly, seek professional help to protect the compressor and avoid costly damage.
Reserve DIY efforts for filter changes and visual inspection outside at the condenser, and rely on pros for valve service or replacement.
