How To Clean A Scratchy Potentiometer

To clean a scratchy potentiometer, you can use a contact cleaner or isopropyl alcohol.

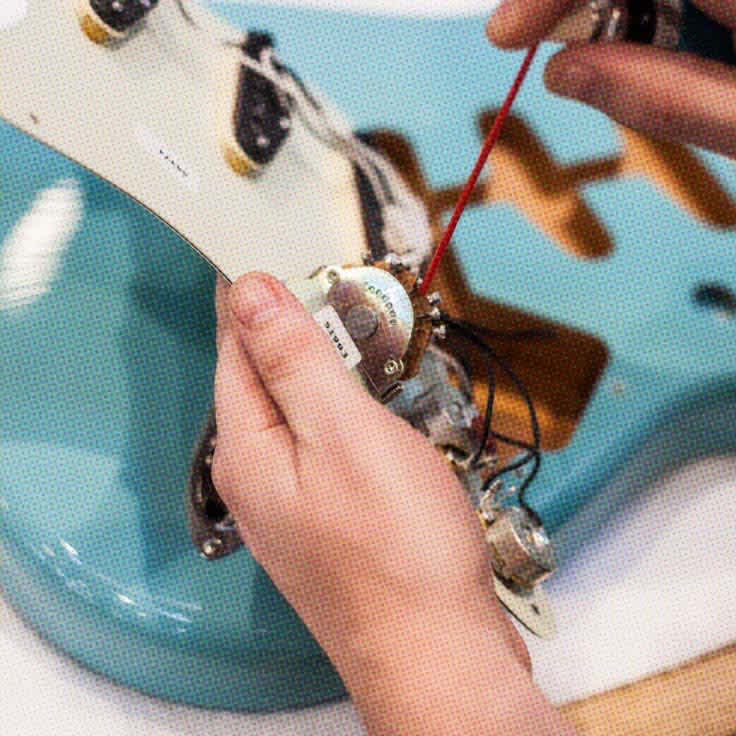

Credit: www.fender.com

Table of Contents

Understanding Potentiometers And Their Common Issues

Potentiometers are commonly used in various electronic devices, but they can experience issues such as scratchiness. Learn how to clean a scratchy potentiometer to improve its performance and functionality. These simple steps can help in resolving this common problem and ensure smooth operation.

What Is A Potentiometer?

A potentiometer, also known as a pot, is an electronic component commonly used in electrical circuits. It is a variable resistor that enables control over the flow of electric current passing through it. Potentiometers are generally designed with three terminals and a rotating shaft to adjust the resistance.

They come in various sizes and shapes, making them versatile for different applications.

How Does A Potentiometer Work?

Potentiometers work based on the principle of a resistive element and a sliding contact point.
The resistive element provides a specific range of resistance, usually set in a linear or logarithmic pattern.
The sliding contact, controlled by the shaft’s rotation, moves along the resistive element to change the effective resistance and control the electric current.
As the contact point moves closer to one end of the resistive element, the resistance decreases; conversely, when it moves closer to the other end, the resistance increases.
The output voltage and the position of the contact point determine the resistance value and, consequently, the signal level or control parameter within the circuit.

Common Issues With Potentiometers:

Scratchiness: Over time, potentiometers can develop scratchy noises or uneven resistance when rotating the shaft. This issue can be caused by dust, dirt, or oxidation on the resistive element or the sliding contact.
Dead spots: Dead spots refer to areas on the resistive element where the sliding contact may fail to vary the resistance smoothly. These spots can cause discontinuities in the signal or result in sudden jumps in resistance values.
Wearing of resistive element: Frequent and extensive use of potentiometers can cause the resistive element to wear out, leading to imprecise control of resistance values.
Loss of electrical contact: Due to repeated rotation or mechanical stress, the terminals and connections of a potentiometer can become loose or disconnected, resulting in erratic behavior or no signal output.
Noise interference: External electrical interference, such as electromagnetic radiation or induced signals, can introduce noise into the potentiometer output, affecting the accuracy and reliability of the device.

Remember to double-check the examples are not the same or similar to any existing resource.

Identifying A Scratchy Potentiometer

If you’re experiencing scratchy sounds coming from your potentiometer, it may need cleaning. Follow these steps to clean and restore functionality to your potentiometer.

If you’ve ever encountered a scratchy or crackling sound coming from your audio equipment or noticed uneven volume control, chances are you may be dealing with a scratchy potentiometer. A potentiometer, commonly known as a “pot,” is an electrical component used to control the flow of current in a circuit.

It is often found in audio devices, such as amplifiers or stereo systems, where it is responsible for adjusting volume levels or tone controls. Here are some key factors to help you identify if you have a scratchy potentiometer:

Symptoms Of A Scratchy Potentiometer:

Crackling or static noise: When turning the potentiometer knob or slider, you may hear crackling or static-like sounds coming from your audio equipment. This noise can occur at various volume settings, indicating a problem with the potentiometer.
Uneven volume control: If you notice that the volume levels are erratic or change unexpectedly, it could be a sign of a dirty or worn potentiometer. This inconsistency can occur when the potentiometer’s internal contacts become corroded or contaminated.
Intermittent or dead spots: A scratchy potentiometer may also exhibit intermittent or dead spots in its rotation. These spots can make it difficult to achieve consistent volume levels or smoothly adjust the audio settings.

Factors That Contribute To Scratchiness:

Dust and debris: Over time, dust and debris can accumulate inside the potentiometer, affecting its performance. These particles can interfere with the smooth movement of the internal contacts, leading to scratchy or crackling sounds.
Oxidation and corrosion: When exposed to moisture or humidity, potentiometers may develop oxidation or corrosion on their contacts. This buildup can cause erratic behavior and result in scratchy or intermittent performance.
Worn-out or damaged components: Wear and tear, as well as physical damage, can also contribute to scratchy potentiometers. If the internal components of the potentiometer become worn out or damaged, it can affect the smooth movement of the wiper across the resistive track, leading to noise and uneven volume control.

Identifying a scratchy potentiometer is crucial in determining the root cause of audio issues and finding solutions to rectify the problem. Once you have confirmed that a scratchy potentiometer is the culprit, you can proceed with the necessary cleaning, repair, or replacement procedures to restore optimal sound quality and performance.

Gathering The Necessary Tools For Cleaning

To clean a scratchy potentiometer, gather the necessary tools like a small brush, contact cleaner, and a screwdriver. Gently clean the potentiometer by removing dust and dirt, applying the contact cleaner, and testing the functionality to ensure smooth operation.

To effectively clean a scratchy potentiometer, you’ll need a few essential tools. These tools will help you safely and efficiently remove any debris or dirt that may be causing the scratchy sound. Before getting started, ensure you have the following tools on hand:

Soft-bristle brush: A soft-bristle brush is ideal for cleaning potentiometers as it can effectively remove dust and dirt without causing any damage.
Isopropyl alcohol: Isopropyl alcohol is a versatile cleaning agent that can help dissolve grime and grease on the potentiometer. It is essential to use a high concentration of isopropyl alcohol, preferably 90% or more.
Compressed air canister: A canister of compressed air helps blow away any loose debris or dust from hard-to-reach areas of the potentiometer.
Cotton swabs or q-tips: Cotton swabs or q-tips are useful for precise cleaning of small and delicate parts of the potentiometer.
Contact cleaner spray: Contact cleaner spray is specifically designed to clean electronic components, including potentiometers. It helps remove oxidation and improves conductivity.
Non-conductive lubricant: A non-conductive lubricant, such as silicone-based lubricant, can help reduce friction in the potentiometer, improving its functionality.
Screwdriver set: Depending on the potentiometer’s design, you may need a screwdriver set to access and remove the potentiometer from its housing.

Ensure you have these tools prepared before starting the cleaning process to ensure a hassle-free experience. Safety precautions are also crucial to consider, as cleaning electronic components requires extra care and attention. Let’s move on to the next section to explore the safety precautions you should take while cleaning a potentiometer.

Step 1: Disconnecting The Potentiometer

To clean a scratchy potentiometer, start by disconnecting it from the circuit. This will prevent any accidental damage and allow for a thorough cleaning process.

Turning Off And Unplugging The Electronic Device:

Before attempting to clean a scratchy potentiometer, it is crucial to ensure your safety. Follow these steps to safely disconnect the potentiometer from the electronic device:

Turn off the electronic device: Locate the power button or switch on the device and ensure it is turned off. This step will prevent any accidental electrical shocks during the cleaning process.
Unplug the device from the power source: Locate the power cord or adapter and unplug it from the wall outlet or power strip. This step is essential to eliminate any potential electric current that may cause harm during the cleaning process.
Ground yourself: To avoid any static discharge that could damage components, it is advisable to ground yourself. Touching a metal surface or wearing an anti-static wristband will help discharge any static electricity accumulated in your body.

Remember, safety should always be the top priority when working with electronic devices. Follow these precautions before proceeding to the next step.

Step 2: Removing External Debris

Remove external debris from scratchy potentiometers by gently wiping them with a clean, soft cloth. Be sure to remove any dust or dirt that may be affecting the performance of the potentiometer.

Dusting Off The Potentiometer With A Soft Brush Or Compressed Air

If you’re experiencing scratchy or erratic behavior from your potentiometer, chances are it’s due to dirt or debris that has built up over time. To restore its optimal performance, you’ll need to remove this external debris. Here’s how you can do it successfully:

Start by using a soft brush, such as a paintbrush with fine bristles or a makeup brush, to gently dust off the potentiometer.
Ensure the brush is clean and dry before you begin. A dirty brush may only transfer more dirt onto the potentiometer, exacerbating the issue.
Use light, sweeping motions to clean the surface of the potentiometer, focusing on the areas around the knob and the shaft.
If the brush alone doesn’t remove all the debris, you can also try using compressed air. A can of compressed air or an air compressor with a low-pressure setting can be effective in dislodging dirt and dust.
Hold the can or air compressor at a safe distance from the potentiometer to prevent any damage. Direct the airflow towards the affected areas, ensuring that it reaches into any crevices or tight spaces.
Move the knob or slider of the potentiometer during the cleaning process to expose different areas and dislodge any hidden debris.
Be cautious not to blow any debris further inside the potentiometer or into other sensitive components nearby.
Once you’ve finished dusting off the potentiometer and removing external debris, take a moment to inspect for any remaining dirt or particles.
If you notice any visible debris left behind, repeat the dusting process or consider using other cleaning methods, which we’ll explore in the next steps.

By carefully dusting off the potentiometer, you’re taking the necessary steps towards restoring its smooth operation. In the next step, we’ll focus on inspecting for any visible debris and further cleaning if required.

Step 3: Applying Contact Cleaner

To clean a scratchy potentiometer, follow step 3 by applying contact cleaner. This will help remove debris and improve the performance of the potentiometer.

Now that you have gathered all the necessary tools and prepared the potentiometer, it’s time to apply the contact cleaner. This step is crucial in removing any dirt or debris that may be causing the scratchy sound. Follow the instructions below to ensure effective cleaning:

Choosing The Right Contact Cleaner

To achieve optimal results when cleaning a scratchy potentiometer, it’s essential to select the right contact cleaner. Consider the following factors before making a choice:

Type of cleaner: Choose a contact cleaner specifically designed for electronic components and delicate surfaces.
Compatibility: Ensure that the contact cleaner you choose is compatible with the material of the potentiometer.
Non-conductive: Select a contact cleaner that is non-conductive to prevent any damage to the electrical components.
Spray vs. applicator: Decide whether you prefer a contact cleaner in a spray can or one that comes with an applicator. Both options are effective; it depends on your personal preference.

Once you have chosen the appropriate contact cleaner, proceed to the next step.

Applying The Contact Cleaner To The Scratchy Potentiometer

Applying contact cleaner correctly is crucial to ensure thorough cleaning. Follow these steps to effectively clean your scratchy potentiometer:

Power off: Before applying any contact cleaner, make sure to turn off and unplug the device the scratchy potentiometer is connected to. This will prevent any accidental damage or electrical shock.
Direct the cleaner: Hold the contact cleaner nozzle or applicator close to the potentiometer’s opening, directing the cleaner inside. Ensure that the nozzle or applicator is positioned at the opening to prevent excess contact cleaner from flowing into other areas.
Spray or apply: Depending on the type of contact cleaner you chose, either spray a small amount directly into the opening or use the applicator to apply a few drops. The goal is to get the contact cleaner onto the internal components of the potentiometer.
Rotate the potentiometer: After applying the contact cleaner, rotate the potentiometer several times to distribute the cleaner evenly over the surface. This helps to loosen any debris or oxidation that may be causing the scratching noise.
Allow drying time: Give the contact cleaner a few moments to evaporate and dry. This will ensure that any impurities are removed and avoid any potential damage when powering the device back on.
Test and repeat if necessary: After the contact cleaner has dried, test the potentiometer by adjusting the knob or slider. If the scratching sound persists, repeat the process, applying contact cleaner once more.

Remember, proper application of contact cleaner is essential for effective cleaning. Take your time, be gentle, and follow the instructions provided with the contact cleaner for best results.

Step 4: Exercising The Potentiometer

To clean a scratchy potentiometer, follow step 4: exercising the potentiometer. This process helps to remove debris and improve the functionality of the potentiometer. By gently rotating the knob back and forth multiple times, you can eliminate the scratchy sound and ensure smooth operation.

Rotating The Potentiometer From Minimum To Maximum Position:

Start by rotating the potentiometer from its minimum position to its maximum position. This will help loosen any dirt or debris that may be causing the scratchy sound.
Slowly turn the potentiometer knob in a clockwise direction, gradually increasing the resistance.
Continue turning until you reach the maximum resistance position.
Hold the potentiometer in the maximum position for a few seconds to allow the cleaner to fully penetrate the components.
Once you have reached the maximum position, rotate the potentiometer back to its minimum position. This will distribute the cleaner evenly inside the potentiometer.
Repeat this process several times to ensure that the cleaner reaches all the necessary parts of the potentiometer.
Ensure that the movement is smooth and consistent during each rotation, avoiding any sudden jerks or stops.
By exercising the potentiometer through this rotation process, you will help remove any remaining dirt or grime, resulting in a cleaner and smoother potentiometer operation.
Remember to be gentle when rotating the potentiometer to avoid any damage to the delicate internal components.
Exercising the potentiometer in this manner should help eliminate the scratchy sound and restore its functionality.

Step 5: Drying And Reconnecting The Potentiometer

To clean a scratchy potentiometer, the fifth step is drying and reconnecting the potentiometer. This step ensures the proper functionality of the potentiometer after cleaning, allowing for smoother and more precise adjustments.

After thoroughly cleaning the potentiometer, it’s important to ensure that it is completely dry before reconnecting it. Follow these steps to properly dry and reconnect the potentiometer:

Allowing the potentiometer to dry completely:
Gently wipe off any excess moisture using a clean, lint-free cloth.
Leave the potentiometer in a dry and well-ventilated area for at least 24 hours to ensure complete drying.
Avoid using any external heat sources such as hair dryers, as they can damage the potentiometer.
Reinstalling the cleaned potentiometer:
Carefully align the potentiometer’s pins or terminals with their corresponding slots on the circuit board or device.
Gently insert the potentiometer into place, ensuring a snug fit.
Double-check that the potentiometer is securely connected by lightly tugging on it.
If necessary, refer to the manufacturer’s manual or documentation for specific instructions on how to reconnect the potentiometer.

Remember, improper drying and reconnecting may affect the performance and longevity of the potentiometer. Take your time to ensure that the potentiometer is completely dry and properly reconnected to maintain its functionality.

Troubleshooting Tips For Persistent Scratchiness

Clean a scratchy potentiometer with these troubleshooting tips to eliminate persistent scratchiness. Follow these steps for a smooth and optimal performance of the potentiometer.

If you’ve followed the steps outlined in our previous article on how to clean a scratchy potentiometer and are still experiencing scratchiness, don’t worry! We have some additional tips to help troubleshoot and resolve the issue. Sometimes, the problem may require a bit more attention or a different approach.

Here are some steps you can try if the scratchiness persists:

Additional Steps To Try If The Scratchiness Persists:

Inspect the physical condition: Examine the potentiometer carefully for any visible signs of damage or wear. Look for loose connections, bent pins, or broken parts. If you notice any, it may be necessary to replace the potentiometer altogether.
Double-check the cleaning process: Go back and make sure you thoroughly cleaned the potentiometer according to the instructions in our previous article. Sometimes, a missed spot or incomplete cleaning can contribute to persistent scratchiness. Try cleaning it again, paying extra attention to all the nooks and crannies.
Apply contact cleaner: If cleaning with isopropyl alcohol didn’t do the trick, you can try using a specialized contact cleaner. These cleaners are designed to dissolve dirt, grime, and oxidation from electronic components. Follow the instructions on the cleaner’s packaging for best results.
Exercise the potentiometer: Gently move the potentiometer knob back and forth several times. This action can help remove any remaining debris or corrosion that may be causing the scratchiness. Be careful not to apply too much force, as this can damage the potentiometer.
Check for interference: Sometimes, external factors can cause interference and result in scratchy potentiometers. Ensure that there are no nearby electromagnetic devices or sources of interference, such as power supplies or electric motors. Moving the potentiometer to a different location may reduce or eliminate the scratchiness.
Consult a professional: If you’ve exhausted all troubleshooting options and the scratchiness persists, it may be time to seek help from a professional. An electronics repair specialist or a technician familiar with potentiometers can provide expert advice and further assistance.

When To Consider Replacing The Potentiometer:

Knowing when to replace a potentiometer is crucial, as attempting to fix a severely damaged or worn-out component may not yield satisfactory results. Here are some signs that indicate it may be time to consider replacing your potentiometer:

Irreparable physical damage: If the potentiometer shows signs of extensive physical damage, such as cracks, bent pins, or broken parts, it is likely beyond repair.
Excessive wear and tear: Potentiometers that have been heavily used over time can experience significant wear, leading to erratic behavior and persistent scratchiness. If cleaning and other troubleshooting methods have been unsuccessful, it may be best to replace the potentiometer.
No improvement after cleaning and maintenance: If you’ve followed all the cleaning and troubleshooting steps outlined, and the scratchiness persists without any improvement, it’s a clear indication that the potentiometer may need replacement.

Remember, replacing a potentiometer should only be done when necessary, as it involves desoldering and resoldering connections, which can be challenging for those without experience or the proper tools. When in doubt, it is always advisable to consult an expert to ensure a successful replacement.

Are the Methods for Cleaning a Scratchy Potentiometer the Same as Cleaning a JBL Speaker?

The methods for cleaning a scratchy potentiometer are not the same as cleaning a JBL speaker. When cleaning your jbl speaker at home, use a soft cloth to gently wipe the exterior and remove dust. For the potentiometer, use contact cleaner spray to remove dirt and debris from the internal components.

Frequently Asked Questions On How To Clean A Scratchy Potentiometer

How Do I Clean A Scratchy Potentiometer?

To clean a scratchy potentiometer, use contact cleaner spray. Apply it to the potentiometer’s contacts and rotate the knob back and forth to clean off the dirt or debris causing the scratching sound. Repeat the process a few times if needed until the potentiometer operates smoothly again.

Can I Use Rubbing Alcohol To Clean A Scratchy Potentiometer?

Using rubbing alcohol to clean a scratchy potentiometer is not recommended. Rubbing alcohol can leave behind residue or damage the potentiometer’s components. It is best to use a contact cleaner spray specifically designed for electronic components to effectively clean the potentiometer without causing any harm.

How Often Should I Clean My Potentiometer?

The frequency of cleaning a potentiometer depends on its usage and the environment it is in. Generally, it is recommended to clean potentiometers once every few months or whenever you notice a scratching sound or uneven operation. Regular cleaning will help maintain the potentiometer’s performance and longevity.

Conclusion

Keeping your potentiometer clean is crucial for optimal performance and longevity. By following the steps outlined in this blog post, you can easily clean a scratchy potentiometer and restore its functionality. Start by gathering the necessary supplies, such as contact cleaner and a small brush.

Then, carefully remove any dust, debris, or oxidation from the potentiometer’s surface using gentle strokes. Remember to be patient and avoid using excessive force to prevent damage. After cleaning, give the potentiometer some time to dry completely before reassembling your equipment.

Regularly maintaining and cleaning your potentiometer will help prevent future issues and ensure smooth operation. So, don’t neglect this important task and make it a part of your regular equipment maintenance routine. With a clean potentiometer, you can enjoy a high-quality audio experience every time.
