A well-maintained condensate pump prevents leaks, clogs, and moisture issues while keeping HVAC efficiency high. This first part explains what a condensate pump is, how it works in relation to your furnace and air conditioning, and why routine maintenance matters before you begin any step-by-step guide.
By understanding the pump, reservoir, drain line, and discharge line, you can better inspect and clean components, prevent mold and algae growth, and ensure clean water is safely removed from the condensate pan.
Whether you manage home improvement tasks yourself or call a technician, knowing how to clean the condensate pump and when to disconnect power to the pump will help you avoid damage and costly service calls.

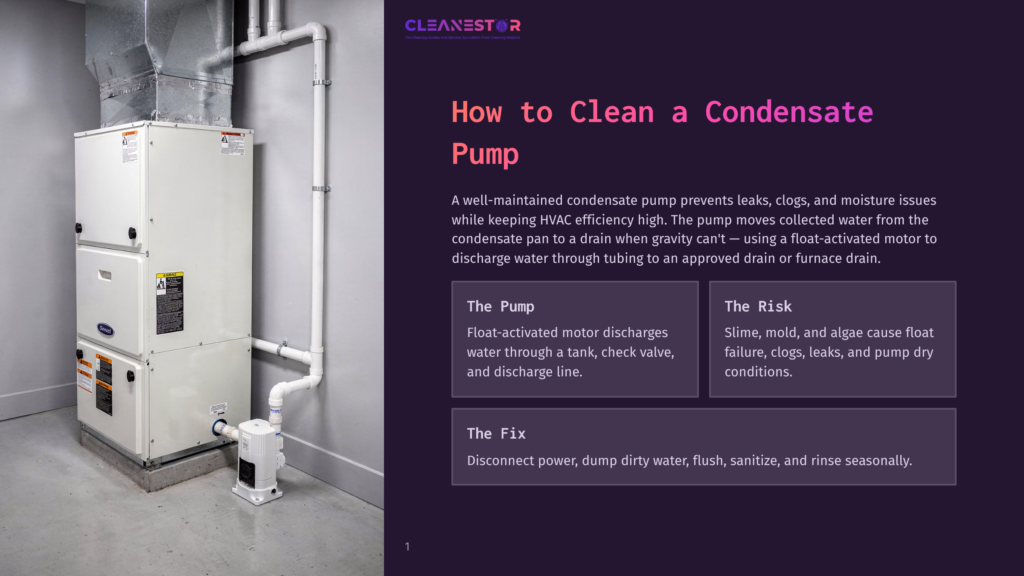

Understanding the Condensate Pump
The condensate pump moves collected water to a drain when gravity can’t. In an HVAC system, the condensate pan under the evaporator coil captures water, which flows via PVC or flexible tubing into a tank or reservoir. When the float senses a fill level, the pump activates and pushes water through the discharge line to a drain, furnace drain, or plumbed pipe.
Understanding each component—the hose connections, seal points, drain line routing, and discharge height—helps you inspect and clean thoroughly. Recognizing where clogs, slime, debris, or mold may form prepares you to flush, rinse, and unclog safely as part of routine maintenance.
What is a Condensate Pump?
A condensate pump automatically removes condensation using a float-activated motor. Instead of relying on gravity, it collects water in a reservoir and uses a float-activated motor to discharge the water through tubing to an approved drain.
In homes where the furnace or AC air handler sits below the main drain, this pump prevents leaks by moving water upward or across longer distances. A furnace condensate pump typically includes a tank, float switch, inlet ports for PVC or vinyl hose, a discharge fitting, and a check valve or seal.
Keeping it clean prevents clogs, slime, and algae growth that can cause failure.
How a Condensate Pump Works
As your air conditioning runs, moisture forms on the coil and collects in the condensate pan, then flows via a drain line into the pump’s tank. When the reservoir fills, the float rises and signals power to the pump motor, which pushes water through the discharge line toward the building’s drain or pipe.
A check valve and proper alignment prevent backflow and leaks. If debris, mold, or algae accumulates, the float can stick, the discharge can clog, or the pump can work improperly. Routine cleaning—flush lines, rinse the tank, inspect hoses—keeps flow steady and reduces strain.
Importance of Cleaning the Condensate Pump
Regular cleaning prevents clogs, leaks, water damage, and efficiency loss. Over time, slime, mold, and algae can build up in the reservoir, drain line, and discharge tubing, causing the float to fail or the pump to run dry.
Always disconnect power to the pump, dump dirty water from the tank, flush with clean water, and rinse thoroughly. You can pour a mild bleach solution or use an AC pan tablet to control microbial growth, then follow with a clean water flush to protect seals.
Using compressed air to unclog lines, checking the furnace drain and condensate pan, and verifying the pump is working properly can prevent service calls and extend equipment life in any home improvement plan.

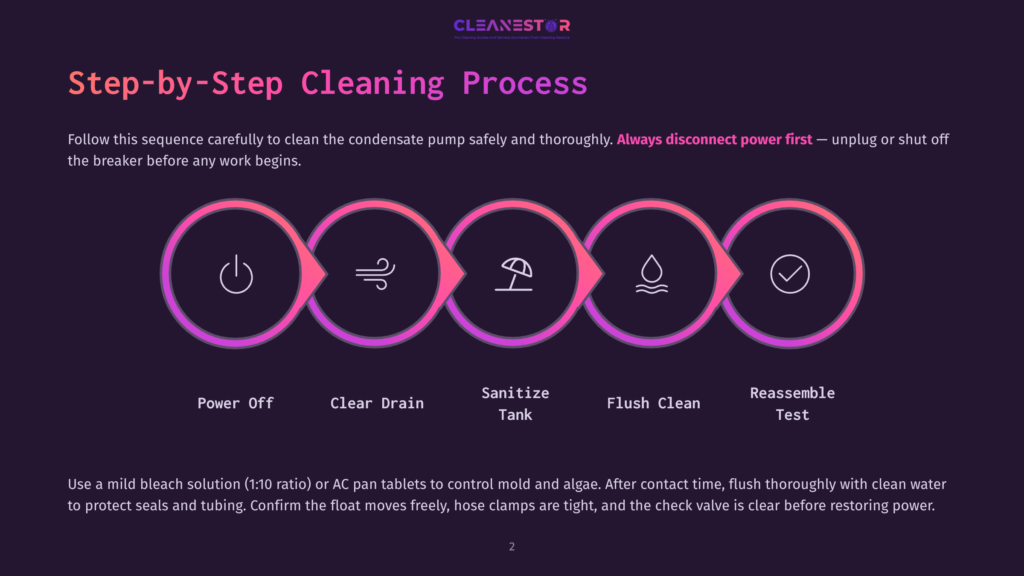

Step-by-Step Guide to Clean the Condensate Pump
This step-by-step guide details how to clean the condensate pump so your HVAC system maintains proper drainage and avoids indoor leaks, mold, and algae growth. You will inspect and clean the reservoir, tank, drain line, and discharge line, then flush and rinse components to ensure the pump is working properly.
The process covers safe disconnect from power to the pump, how to dump dirty water, and what to pour for sanitation without harming seals or tubing. Whether your setup is tied to a furnace drain or a dedicated pipe, careful pump cleaning prevents clogs and costly service calls.
Follow each action thoroughly to keep air conditioning and heating condensation moving by gravity assist or pump discharge.
Tools and Materials Needed
Gather essentials first to streamline maintenance: a bucket, clean water, mild bleach solution or AC pan tablets, small brush, rags, wet/dry vacuum, screwdriver, pliers, spare PVC/vinyl tubing, compressed air, zip ties, replacement check valve, Teflon tape, gloves, and eye protection.
| Cleaning & Fluids | Tools & Parts |
|---|---|
| Bucket, clean water, mild bleach solution, or AC pan tablets, rags | Wet/dry vacuum, screwdriver, pliers |
| Compressed air | Spare PVC/vinyl tubing, zip ties, replacement check valve, Teflon tape, gloves, eye protection |
Preparing to Clean the Pump
Start by locating the condensate pump near your furnace or ac air handler and tracing the drain line from the condensate pan to the tank and onward to the discharge line or furnace drain. Clear a workspace to keep tools accessible and prevent indoor spills.
Place a bucket under connections you plan to open, then inspect tubing, PVC elbows, hose clamps, and the float area for visible slime, mold, algae, or debris. Note any leak signs around a seal, pipe joint, or discharge fitting. Plan the sequence: disconnect, open, dump, flush, sanitize, rinse.
Confirm you have access to a sink or drain for safe disposal and to verify gravity fall or proper plumbing.
Disconnecting the Pump from the Power Source
Safety first: unplug or shut off the breaker before any work. Unplug the pump from the outlet; if hardwired, switch off the dedicated circuit breaker. Some HVAC systems have interlocks—confirm the ac or heating equipment is off to prevent fresh condensation while you work.
After the power is off, wait a moment so the motor stops and the float settles. Verify that no 24V control wires or alarm leads will be strained as you move the pump. Next, isolate water by removing or pinching the inlet hose from the condensate pan to prevent new flow, and elevate the tube if gravity would continue to drain.
Only then should you detach the discharge line and open the tank, ready to dump, flush, and rinse the furnace condensate pump thoroughly.
Cleaning Process for the Condensate Pump
This step-by-step guide explains how to clean the condensate pump thoroughly so your HVAC system maintains reliable drainage under cooling and heating loads. After disconnecting power, focus on removing slime, algae, and debris, and verify that all components operate freely. Follow these key actions in order:
- Inspect, dump, flush, sanitize, and rinse the reservoir, tank, drain line, and discharge line to clear clogs or leaks.
- Check that each hose, PVC pipe, and tubing seal is tight, and confirm the float moves freely to prevent the pump from running dry.
- Use pan tablets or a mild bleach solution per manufacturer guidance, then follow with a clean water flush to protect components.
Proper cleaning reduces service calls and extends HVAC performance.
Inspecting the Drain Line for Clogs
Begin by tracing the drain line from the condensate pan at the coil to the tank and onward to the discharge line or furnace drain, noting every PVC elbow, tube, and hose clamp. Inspect for indoor water stains, slime, mold, or algae growth along transparent tubing, and feel for soft obstructions. Gently disconnect the hose at the pump inlet and check the inlet screen for debris.
Use compressed air or a wet/dry vacuum to clear clogs, blowing from the discharge toward the pan. Confirm that the check valve and seal on the discharge fitting are clear and plumb is correct for the gravity fall. Reattach tubing securely and verify no leak exists. This inspection and cleaning step prevents the pump from cycling excessively and protects the float mechanism.
Pouring Bleach to Clean the Reservoir
With the pump unplugged, remove the cover and dump the reservoir to clear dirty water from the furnace condensate pump tank. Rinse once with clean water, then use a mild bleach solution (1:10 bleach to water) to sanitize slime, mold, and algae without harming the seal or tubing. Let the solution dwell for several minutes to penetrate debris on the walls, float, and inlet areas, gently brushing as needed.
Alternatively, place AC pan tablets in the tank for slow-release control if bleach is not preferred. Avoid strong concentrations that could damage PVC or vinyl tube. After contact time, proceed to a thorough rinse so residual bleach does not travel through the hvac system’s discharge. Proper sanitation reduces odors, prevents clogs, and minimizes future maintenance.
Flushing the Pump with Water
After sanitizing, flush with clean water until the discharge runs clear. Reconnect the inlet hose from the condensate pan, keep the discharge line attached, and pour clean water into the tank until the float rises and the pump activates. Briefly reconnect power to the pump or use a test outlet to run a controlled flush, then disconnect once the tank clears to avoid running the pump dry.
Repeat until the discharge runs clear and free of particles. Inspect the pipe and tubing for leaks while flowing, confirming tight seals and correct plumb to the furnace drain or approved drain. Finish with a final rinse, reinstall the cover, and verify the pump is working properly under normal condensation from the ac or furnace. Schedule routine cleaning to prevent future issues.
Maintaining the Condensate Pump
Seasonal maintenance prevents clogs, leaks, and pump dry conditions. After you clean the condensate pump using the step-by-step guide, set an indoor schedule to inspect and clean the reservoir, tank, drain line, and discharge line seasonally—before heavy cool or heating loads. Verify the float moves freely, seals are intact, and tubing and PVC pipe remain properly plumb to the furnace drain or approved drain.
Use ac pan tablets periodically to control algae and slime, then flush with clean water to protect the seal. Confirm that the hose and check valve prevent backflow and that the pump is working properly after any rinse. This simple home improvement habit reduces service calls and keeps the hvac system’s condensation flowing by gravity assist or discharge.

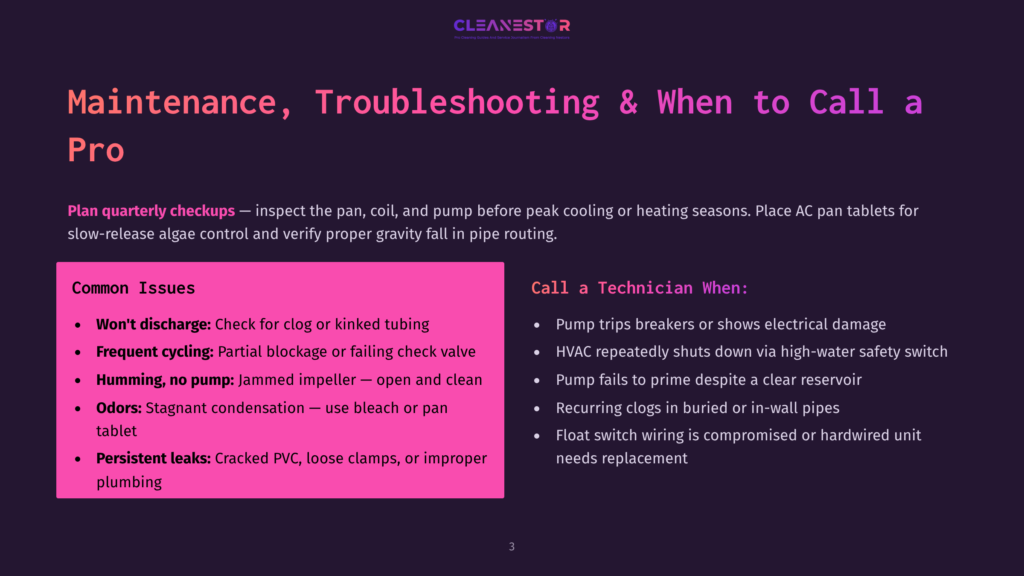

Regular Checkups and Maintenance Tips
Plan quarterly checkups to inspect the condensate pan, coil, and furnace condensate pump, especially during peak air conditioning months. Disconnect power to the pump, remove the cover, and dump any dirty water from the tank. Look for mold, algae, or debris along the inlet tube, PVC elbows, and discharge line; if found, pour clean water to flush, then a mild bleach solution to sanitize, followed by a rinse.
Verify the float travels smoothly, and the hose clamps and tubing seals are tight to prevent a leak. Place pan tablets in the reservoir for slow-release protection, and confirm the pipe routing has proper gravity fall where applicable. After reassembly, restore power and run a test fill to ensure the pump is working properly without short cycling or unusual noise.
| Task | Action |
|---|---|
| Safety and cleaning | Disconnect power, remove cover, empty dirty water, flush with clean water, sanitize with mild bleach, then rinse. |
| Inspection and verification | Check for mold/algae/debris in the inlet tube, PVC elbows, and discharge line; ensure float moves freely; tighten hose clamps and seals. |
| Preventive measures | Place pan tablets in the reservoir and confirm proper gravity fall in pipe routing. |
| Final test | Reassemble, restore power, and run a test fill to confirm normal operation without short cycling or unusual noise. |
Diagnosing Common Issues
When the pump will not discharge, start with a visual inspection of the drain line for a clog, slime buildup, or kinked tubing. If the tank overfills, the float may be stuck by mold or debris—clean and rinse it, then retest.
Frequent cycling often indicates a partial blockage or a failing check valve. Flush with clean water, apply compressed air from the outlet back toward the pump to unclog, and confirm a tight seal at fittings. Odors indicate stagnant condensation—pour a mild bleach mix or use ac pan tablet.
If you hear humming without pumping, the impeller may be jammed; disconnect, open, and clean thoroughly. Persistent leaks usually trace to cracked PVC or hose, loose clamps, or improper plumbing to the furnace drain.
When to Call a Professional
Call a technician for electrical issues, repeated shutdowns, or persistent failures after cleaning. Call a qualified technician if the condensate pump trips breakers, shows electrical damage, or vibrates excessively after you clean condensate and flush the lines.
Professional service is also recommended when the hvac system repeatedly shuts down due to a high-water safety switch, or when the pump fails to prime despite a clear reservoir and discharge. If you find recurring clogs in buried pipes, hidden tubing in walls, or shared drains that back up, a pro can inspect with specialized tools and re-plumb as needed.
Seek help if seals leak around the tank or the float switch wiring is compromised, and anytime a hardwired unit needs to be disconnected or replaced. An expert can size a new furnace condensate pump, verify gravity and discharge head, and ensure the pump is working properly under load.
