240-Volt Air Conditioner Plug

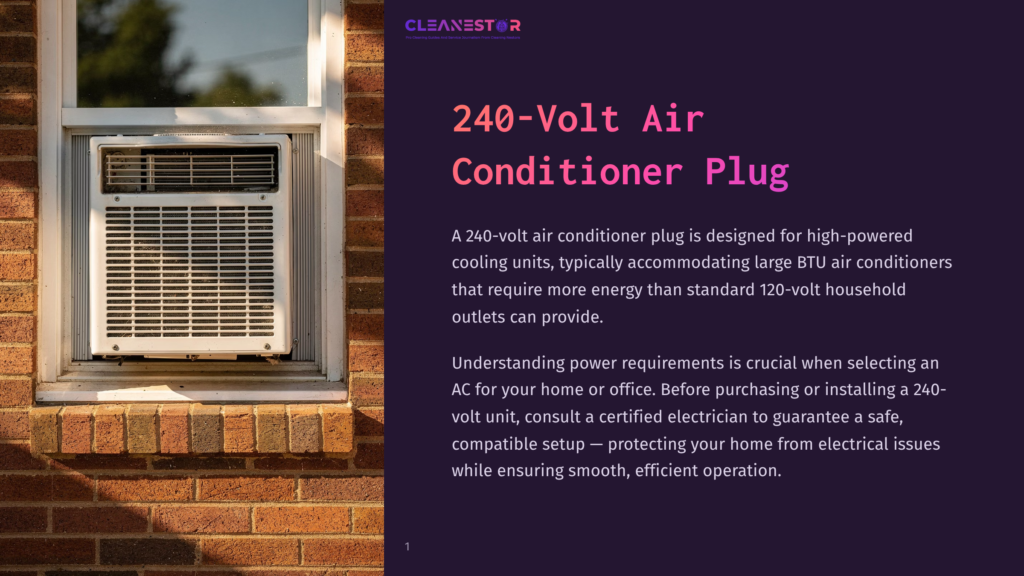

A 240-volt air conditioner plug is designed for high-powered cooling units. It typically accommodates large BTU air conditioners that require more energy.

Text Example

Must-Have Cleaning Essentials For Every Home (Recommended):

Calyptus 45% Pure Super Concentrated Vinegar | Dilutes to 18 Gallons | 9x Power Concentrate Vinegar | 2 Gallons
  • Consistently delivers the same smell, color, and results - every time. For superior and safer cleaning performance, in and around your home.
Baking Soda
Milliard 5lbs Baking Soda / Sodium Bicarbonate USP - 5 Pound Bulk Resealable Bag
  • Great household product for anything that needs a bright new look! Use it as a cleansing booster with your laundry or dish detergent, as a pH buffer in swimming pools, or for cleaning kitchen surfaces.
Microfiber Cleaning Cloth
MR.SIGA Microfiber Cleaning Cloth, Pack of 12, Size:12.6
  • Ultra-soft, highly absorbent, durable, lightweight, non-abrasive microfiber cleaning cloths. Great for cleaning windows, kitchenware, cars, bathrooms, mirrors, or other delicate surfaces. Perfect dish rags that don't smell.
This post may have affiliate links and as an Amazon Associate we earn from qualifying purchases.

When selecting an air conditioner for your home or office, understanding the power requirements is crucial. The 240-volt plug differs from standard 120-volt household plugs, both in design and electrical capacity. These specialized plugs ensure that your air conditioning unit receives the necessary voltage for optimal performance and efficiency.

It is important to ensure that your electrical system can handle the demands of a 240-volt appliance. Before purchasing or installing a 240-volt air conditioner, consulting with a certified electrician is advisable to guarantee a safe and compatible setup. Proper installation not only safeguards your home from electrical issues but also ensures that your air conditioner runs smoothly, providing a comfortable and cool environment during the warmer months.

Introduction To 240-volt Air Conditioner Plugs

Understanding 240-Volt Air Conditioner Plugs is essential for cooling your space efficiently. These plugs power high-performance air conditioners in larger spaces. Let’s dive into the specifics of these powerful connectors.

The Basics Of High-voltage Ac Units

240-volt air conditioners offer superior cooling. They require special plugs and outlets. These units can cool large areas quickly. Most home central systems and large window units use these plugs.

  • Double-pole circuit breakers ensure safety.
  • These plugs have three or four prongs.
  • NEMA sets the standard for these plugs.
  • They use 240-volt power supply.

Safety Considerations For 240-volt Appliances

Handling 240-volt appliances requires care. Proper installation is critical. Always follow manufacturer instructions. Use a licensed electrician for installation.

Safety Tip Action
Check the outlet Ensure compatibility with the plug.
Inspect cords Look for damage before use.
Avoid water Keep plugs away from moisture.
Secure connections Ensure plugs are firmly inserted.
240-Volt Air Conditioner Plug

Credit: innovativehomesys.com

Types Of 240-volt Plugs For Air Conditioners

Understanding the different types of 240-volt plugs is essential for any air conditioner installation. The right plug ensures your air conditioner runs efficiently and safely. Let’s explore the various plug shapes and sizes, along with their amperage ratings.

Distinguishing Between Plug Shapes And Sizes

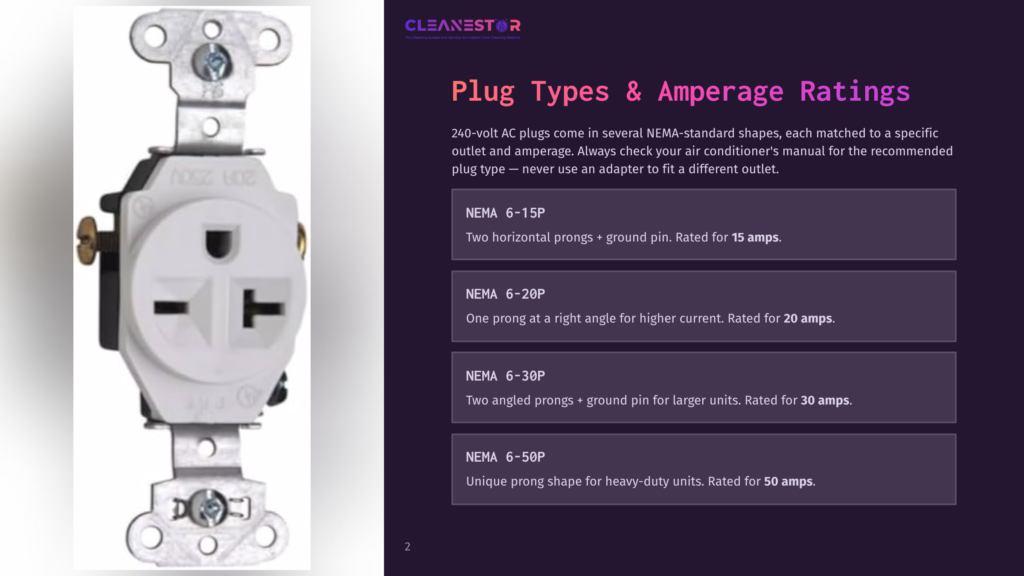

240-volt air conditioner plugs come in diverse shapes and sizes. Each design caters to specific electrical requirements and safety standards. Know the right fit to prevent power issues.

  • NEMA 6-15P: This plug has two horizontal prongs and a ground pin.
  • NEMA 6-20P: Similar to the 6-15P, but with one prong turned at a right angle for higher amperage.
  • NEMA 6-30P: Used for larger units, with two angled prongs and a ground pin.
  • NEMA 6-50P: Offers a higher power level, with a unique prong shape for heavy-duty units.

Each plug matches a specific outlet. Always check your air conditioner’s manual for the recommended plug type.

Understanding Amperage Ratings

Amperage ratings indicate the maximum current a plug can handle. Matching the right amperage is crucial for safety and performance.

Plug Type Amperage
NEMA 6-15P 15 amps
NEMA 6-20P 20 amps
NEMA 6-30P 30 amps
NEMA 6-50P 50 amps

Select a plug with an amperage rating that matches or exceeds your air conditioner’s requirement. Never use an adapter to fit a different outlet.

Installation Requirements For 240-volt Ac Plugs

Understanding the installation requirements for 240-Volt AC plugs is crucial for safety and efficiency. This guide helps you install a 240-volt outlet correctly.

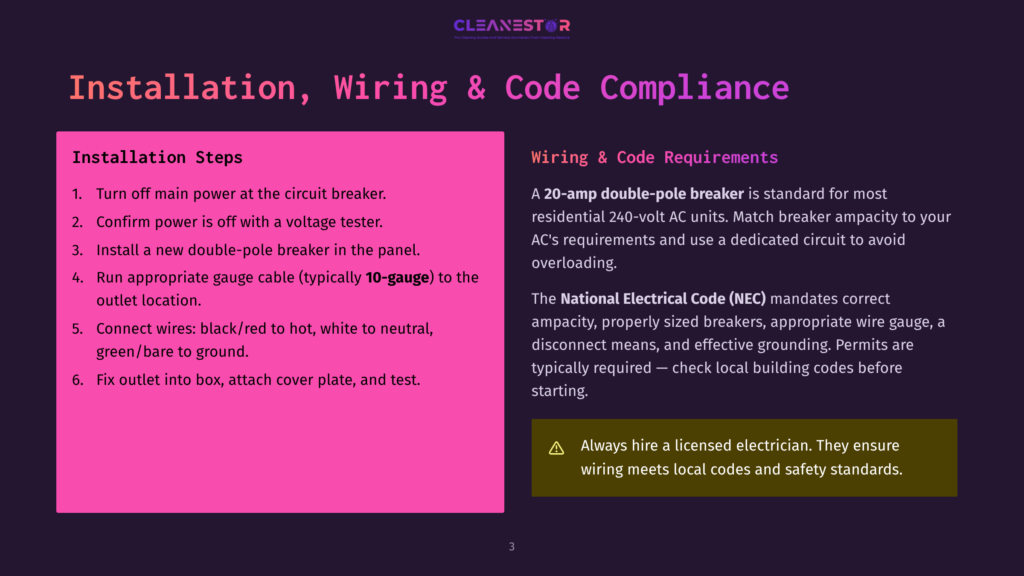

Step-by-step Guide To Installing A 240-volt Outlet

  1. Turn off the main power at your circuit breaker.
  2. Identify the location for your new outlet. Ensure it’s away from water sources.
  3. Use a voltage tester to confirm the power is off.
  4. Install the new breaker in the panel. Secure it properly.
  5. Run the appropriate gauge cable from the breaker to the new outlet location.
  6. Connect the wires to the outlet’s terminals: black and red to hot, white to neutral, and green or bare to ground.
  7. Fix the outlet into the box and attach the cover plate.
  8. Switch the power on and test the outlet with a voltage tester.

Tools And Materials Needed For Installation

Tool/Material Use
Voltage tester Checks for live power
Screwdrivers For securing components
Wire strippers Strips insulation from wires
Drill Makes holes for mounting
Cable Connects breaker to outlet
240-volt outlet and breaker Outlet for appliance, breaker for safety

Electrical Wiring For 240-volt Air Conditioner Circuits

Ensuring proper electrical wiring is crucial for the safety and efficiency of a 240-volt air conditioner. The right wire gauge and circuit breaker are essential for the system to function correctly. Let’s dive into the specifics needed to set up your air conditioner safely.

Choosing The Right Wire Gauge

Selecting the correct wire size is vital for both safety and performance. Use the following guidelines:

  • Check the manufacturer’s specifications for the minimum wire gauge required.
  • Use thicker wires for longer distances to prevent voltage drop.
  • Consider the amperage of your air conditioning unit.

A common choice is 10-gauge wire for most residential 240-volt air conditioners. Refer to a wire gauge chart if in doubt.

Circuit Breaker Specifications

Matching the circuit breaker to your air conditioner is a must. Follow these points:

  • Match the amperage rating of the breaker to your AC’s requirements.
  • Use a dedicated breaker for your air conditioner to avoid overloading.

Typically, a 20-amp double-pole breaker is used for many 240-volt AC units. Check your unit’s manual for exact requirements.

Note: Always hire a licensed electrician to handle electrical installations. They ensure wiring meets local codes and safety standards.

Converting A 120-volt Outlet To 240-volt For Air Conditioners

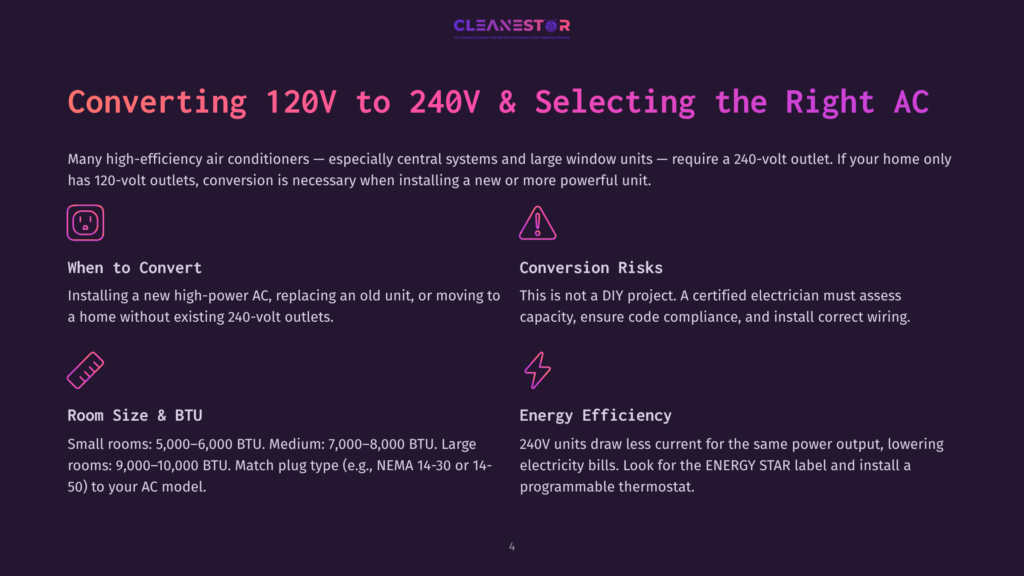

Converting a 120-Volt Outlet to 240-Volt for Air Conditioners is an essential task for homeowners looking to upgrade their cooling systems. High-powered air conditioners often require a 240-volt outlet to function efficiently. This conversion ensures that your air conditioning unit has the power it needs to keep your home cool during the hot summer months.

When To Consider Conversion

Upgrading to a high-efficiency air conditioner? Check its voltage requirements. Many robust models need a 240-volt outlet. This is especially true for central air conditioning systems and larger window units. If your current outlet is 120-volt, conversion is necessary. Consider this step when:

  • Installing a new air conditioner that requires more power.
  • Replacing an old unit with a more powerful system.
  • Moving to a home without existing 240-volt outlets for AC.

Potential Risks And Precautions

Converting an outlet is not a DIY project. It involves electrical risks. Always hire a certified electrician. They will:

  1. Assess your home’s electrical system capacity.
  2. Ensure the new outlet meets local electrical codes.
  3. Install the correct wiring and outlet type for your AC.

Take these steps to minimize risks:

Action Purpose
Turn off power Prevent electric shock during installation.
Use proper tools Ensure safe and effective conversion.
Test the outlet Confirm correct voltage and safe operation.
240-Volt Air Conditioner Plug

Credit: www.amazon.com

Common Issues With 240-volt Air Conditioner Plugs

240-Volt Air Conditioner Plugs power up our cool comfort. Yet, they can have issues. Let’s explore common problems and how to fix them.

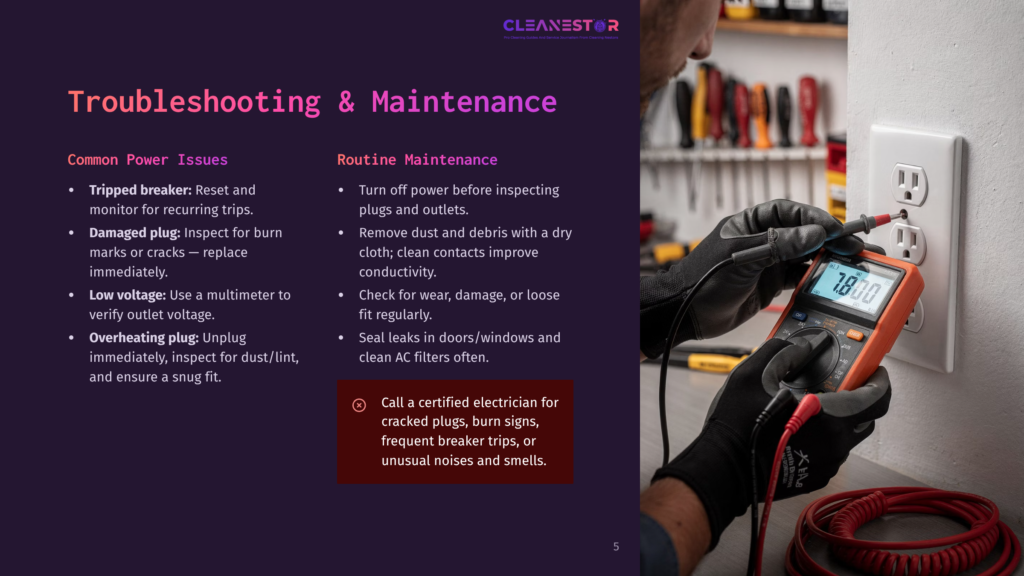

Troubleshooting Power Supply Problems

Power issues can leave you sweating. Check these quick fixes:

  • Check the Circuit Breaker: A tripped breaker cuts power.
  • Examine the Plug: Look for damage or burn marks.
  • Test the Outlet: Use a multimeter to verify voltage.

Still no power? Call a pro. They can find and fix tricky issues.

Dealing With Overheating Plugs

Overheating can be dangerous. Stay cool and safe with these steps:

  • Unplug Immediately: Stop using the plug to prevent fire.
  • Inspect for Dirt: Dust and lint can cause overheating.
  • Check Plug Fit: Loose plugs can overheat. Ensure a snug fit.

Plug still hot? Replace it. A new plug can mean safer cooling.

Energy Efficiency And 240-volt Air Conditioners

240-volt air conditioners are the giants of cooling in larger spaces. They offer powerful, consistent performance. These units save energy and costs over time compared to their 120-volt counterparts.

How Voltage Affects Performance

A higher voltage like 240V means the air conditioner works more efficiently. It draws less current while providing the same amount of power. This leads to better energy efficiency and lower electricity bills.

Tips For Reducing Energy Consumption

  • Install a programmable thermostat to control the temperature even when you’re not home.
  • Regular maintenance keeps your unit running efficiently. Clean and replace filters often.
  • Use ceiling fans to aid in circulation. This can make rooms feel cooler without lowering the AC temperature.
  • Seal leaks in doors and windows to prevent cool air from escaping.
  • Upgrade to energy-efficient models. Look for the ENERGY STAR label.

Regulations And Code Compliance

Understanding the Regulations and Code Compliance is crucial when installing a 240-Volt Air Conditioner Plug. Safety, efficiency, and legality hinge on following the strict guidelines set forth by authoritative bodies. Whether you are a homeowner or a professional installer, navigating the complexities of electrical codes ensures your air conditioning system operates without a hitch.

National Electrical Code (nec) Guidelines

The National Electrical Code (strong>NEC) serves as the benchmark for electrical safety. The NEC outlines specific requirements for 240-Volt Air Conditioner Plugs:

  • Ampacity: Match plug ampacity to the air conditioner.
  • Circuit Breakers: Use correctly sized breakers for protection.
  • Wiring: Ensure proper gauge and type of wire.
  • Disconnect: Provide a means to disconnect power.
  • Grounding: Ground all components effectively.

Adherence to NEC guidelines is not just a recommendation but a legal requirement. Neglect can lead to serious safety hazards and code violations.

Permit Requirements For Electrical Work

Electrical work often requires a permit. The specifics can vary based on location:

Location Permit Requirement
City Areas Usually required for new installations.
County Zones May differ from city regulations.
Rural Regions Less stringent but often necessary.

Check local building codes and secure permits before starting. This ensures your installation is up to code and avoids potential fines.

Selecting The Right 240-volt Air Conditioner

As temperatures rise, a powerful 240-volt air conditioner becomes a must-have for a comfortable home. Choosing the right unit ensures efficient cooling. Pay attention to plug types and room size.

Matching Plug Types To Ac Models

Different air conditioners need specific plugs. It’s crucial to match your AC’s plug type with your home’s outlet. Common plug types include NEMA 14-30 and NEMA 14-50. Refer to the AC’s manual for the right plug.

AC Model Plug Type
Model X NEMA 14-30
Model Y NEMA 14-50

Considerations For Room Size And Cooling Capacity

Room size determines AC capacity. Measure your room to find the right BTU (British Thermal Unit). Use a BTU calculator for precision. A larger room needs more BTUs for effective cooling.

  • Small Room: 5,000-6,000 BTU
  • Medium Room: 7,000-8,000 BTU
  • Large Room: 9,000-10,000 BTU

Maintenance Tips For 240-volt Ac Plugs And Outlets

Maintenance Tips for 240-Volt AC Plugs and Outlets ensure your cooling system runs smoothly and safely. Regular upkeep prevents electrical hazards and extends the lifespan of your air conditioner.

Regular Inspection And Cleaning

Regularly check and clean your 240-volt AC plug and outlet. This simple step can prevent major issues.

  • Turn off the power before you start.
  • Remove any dust or debris with a dry cloth.
  • Check for signs of wear or damage.
  • Ensure the plug fits snugly in the outlet.

Clean contacts improve conductivity and prevent overheating.

When To Seek Professional Help

Some situations require a certified electrician. Don’t try to fix these problems yourself.

  • Cracked or broken plugs need immediate attention.
  • Signs of electrical burn indicate serious risk.
  • If resetting your circuit breaker often, call a pro.
  • Unusual noises or smells from the outlet are warnings.

Contacting a professional ensures safety and proper handling.

240-Volt Air Conditioner Plug

Credit: www.reddit.com

Frequently Asked Questions

Can You Plug An Ac Into A Regular Outlet?

Yes, you can plug a standard AC unit into a regular outlet, provided it’s the appropriate voltage and amperage for that outlet. Always check the AC unit’s specifications first.

How To Identify A 240v Outlet?

To identify a 240V outlet, check for three or four prongs and a unique slot pattern unlike standard 120V outlets. Look for a label or a rating stamped near the outlet.

How Many Wires Does A 240v Outlet Have?

A 240V outlet typically has four wires: two hot wires, one neutral wire, and one ground wire. These components ensure safe and effective operation of high-powered appliances.

How Are 240v Plugs Wired?

240V plugs are wired with a hot wire to each of the two flat prongs, and a neutral wire to the round prong. Always ensure power is off before wiring.


Understanding the specifics of a 240-volt air conditioner plug is crucial for ensuring your unit’s optimal performance and safety. Remember, selecting the right plug and outlet can significantly enhance your air conditioner’s efficiency. As summer temperatures soar, make sure your cooling system is powered correctly to enjoy a comfortable, worry-free season.
